Features of ASUS TUF Gaming Geforce RTX 4090 OG OC Edition 24GB Nvidia Graphic Card
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- OC edition: 2595 MHz (OC mode)/ 2565 MHz (Default mode)

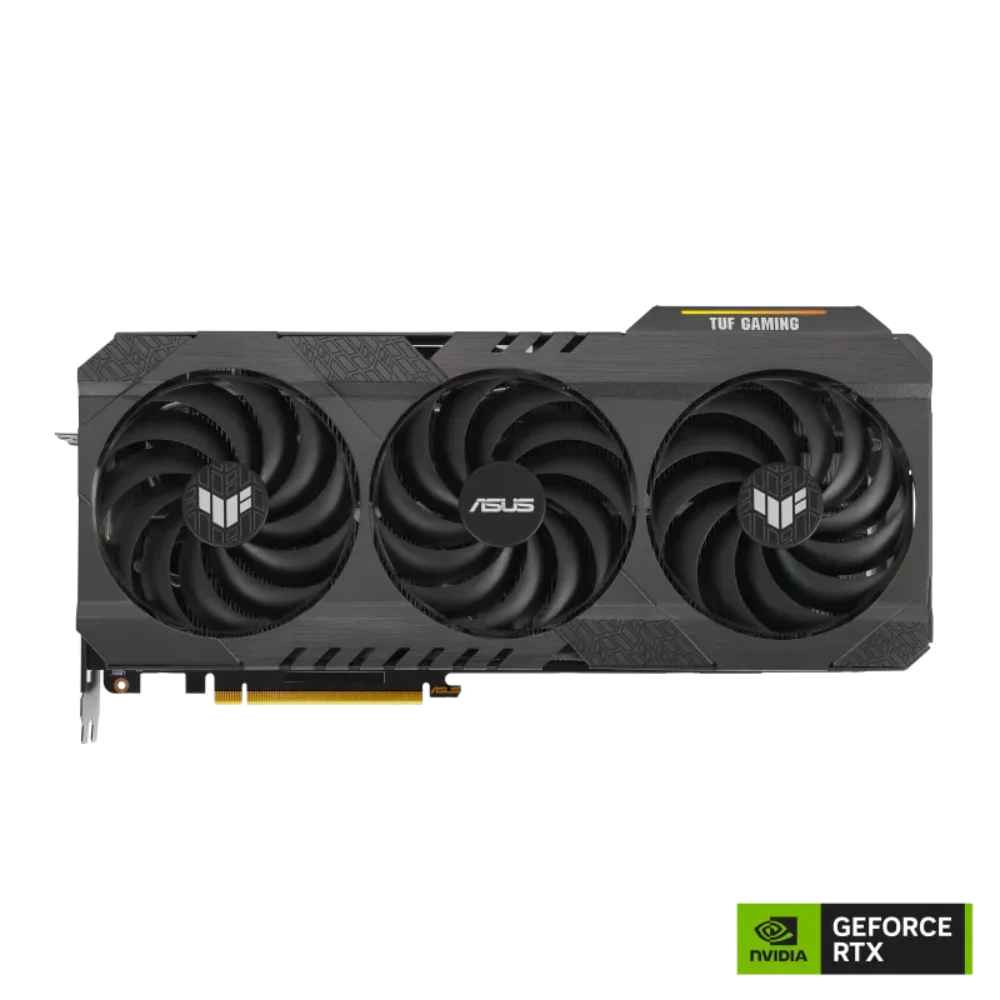

- Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Built TUF
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4090.
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.
Specifications of ASUS TUF Gaming Geforce RTX 4090 OG OC Edition 24GB Nvidia Graphic Card
| Model No |
90YV0IY3-M0AA00 |
| Model |
TUF-RTX4090-O24G-OG-GAMING |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4090 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
24GB GDDR6 |
| Engine Clock |
OC Mode: 2595MHz |
|
Default Mode: 2565MHz (Boost) |
| CUDA Core |
16384 |
| Memory Speed |
21 Gbps |
| Memory Interface |
384-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

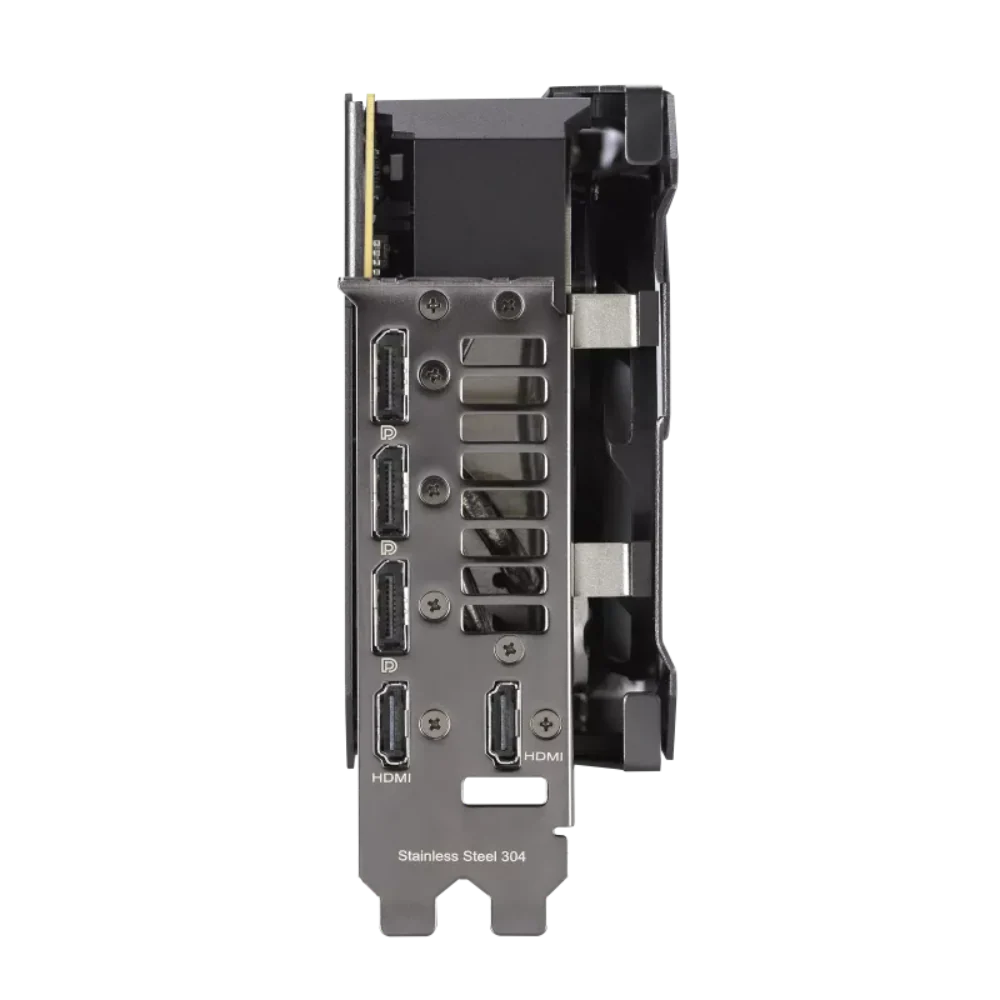

| Interface |
Yes x 2 (Native HDMI 2.1a) |
|
Yes x 3 (Native DisplayPort 1.4a) |
|
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card |
|
1 x Speedsetup Manual |
|
1 x Adapter Cable |
|
1 x Thank you Card |
|
1 x TUF Velcro Hook & Loop |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
325.9 x 140.2 x 62.8 mm
12.83 x 5.52 x 2.47 inches
|
| Recommended PSU |
850W |
| Power Connectors |
1 x 16-pin |
| Slot |
3.2 slot |
| AURA SYNC |
ARGB |
