Feature of ZOTAC Gaming GeForce RTX 5080 Solid OC 16GB NVIDIA Graphic Card
REDEFINING GAMING AND STYLE
ZOTAC reimagines one of the core essentials of a performance PC, as the centerpiece of an entire setup. Blending design, performance, and airflow dynamics, the ZOTAC GAMING GeForce RTX 50 series GPUs blur the line between tech and art
A REFRESHED LOOK
The ZOTAC GAMING FireStorm Utility has a new fresh coat of paint for the 50 series, matching the elegance of our new design. FireStorm comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, and SPECTRA RGB lighting effects.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Strong Performance
- IceStorm 3.0 Advanced Cooling
- Larger Vapor Chamber
- BladeLink Fans
- Reinforced Metal Mid-Frame
- FREEZE Fan Stop, Active Fan Control, Dual BIOS
- SPECTRA 2.0 RGB Lighting
- SPECTRA LINK Lighting Sync port

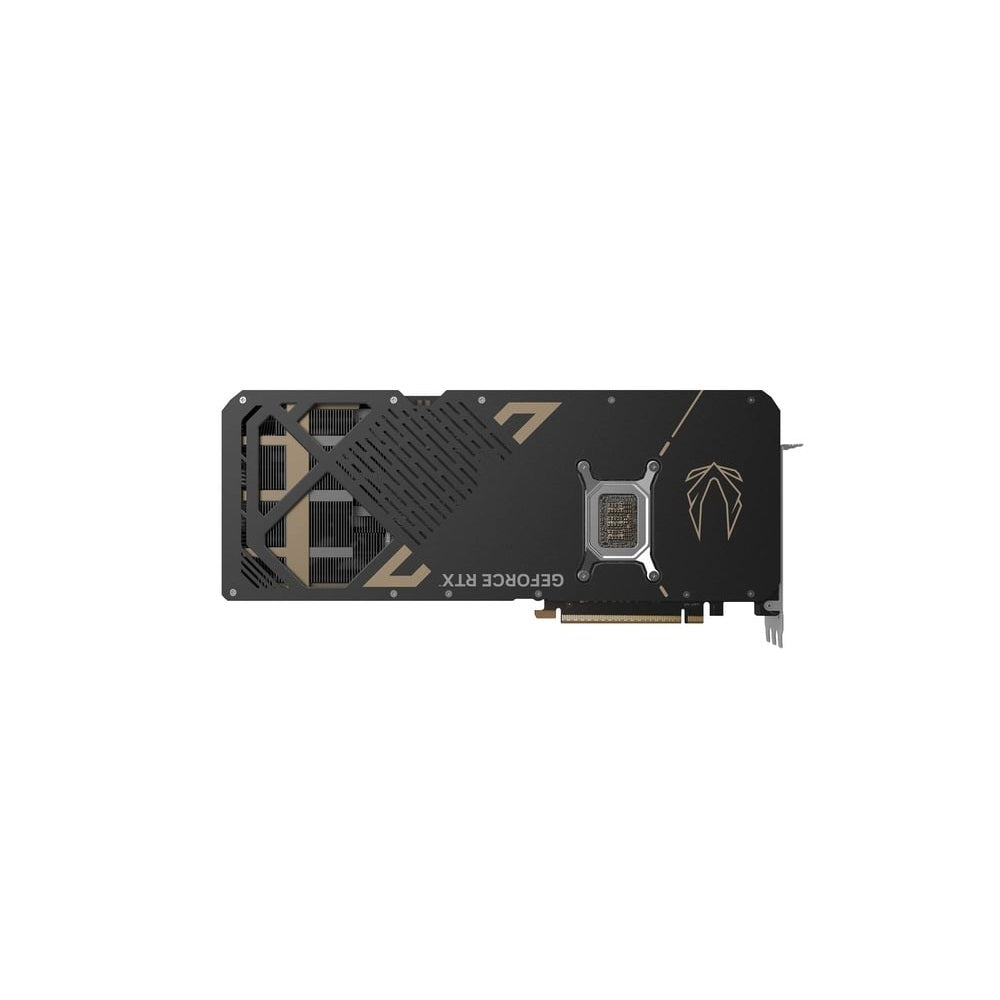

- Metal die-cast Backplate
- Bundled with GPU Support Bracket
- All-new FireStorm Utility
- Model NO. ZT-B50800J-10P
Specifications of ZOTAC Gaming GeForce RTX 5080 Solid OC 16GB NVIDIA Graphic Card
| GPU |
NVIDIA GeForce RTX 5080 GPU |
| CUDA cores |
10752 |
| Video Memory |
16GB GDDR7 |
| Memory Bus |
256-bit |
| Engine Clock |
2625 MHz |
| Memory Clock |
30 Gbps |
| PCI Express |
PCI Express 5.0 x16 |

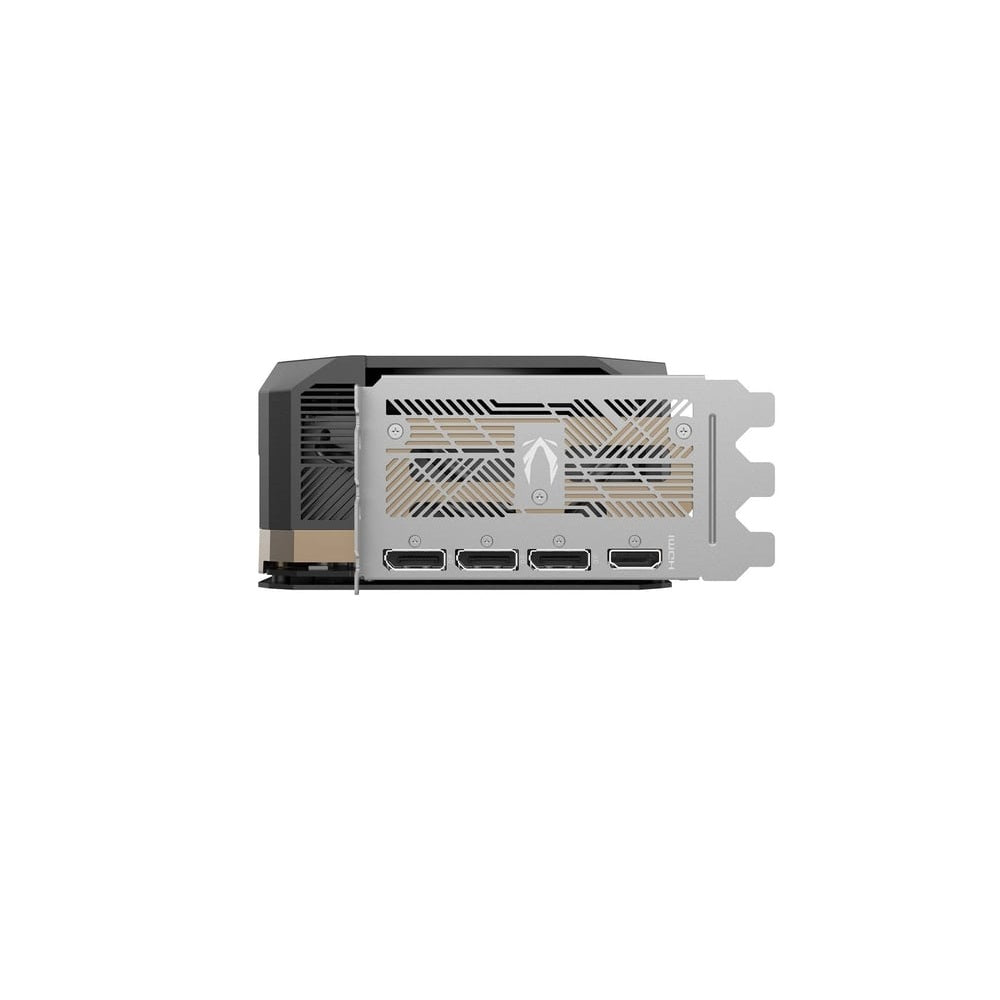

| Display Outputs |
3 x DisplayPort 2.1b
(up to 15360×8460 @ 60Hz)
1 x HDMI® Connector
(Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)
|
| HDCP Support |
2.3 |
| Multi Display Capability |
Quad Display |
| Recommended Power Supply |
800W |
| Power Consumption |
360W |
| Power Input |
1 x 12VHPWR power input |
| DirectX |
Microsoft DirectX® 12 Ultimate |
| OpenGL |
4.6 |
| Cooling |
IceStorm 3.0 |
| Slot Size |
3.5 |
| SLI |
No |
| Supported OS |
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Length |
329.7mm x 137.8mm x 67.8mm / 13" x 5.4" x 2.7" |

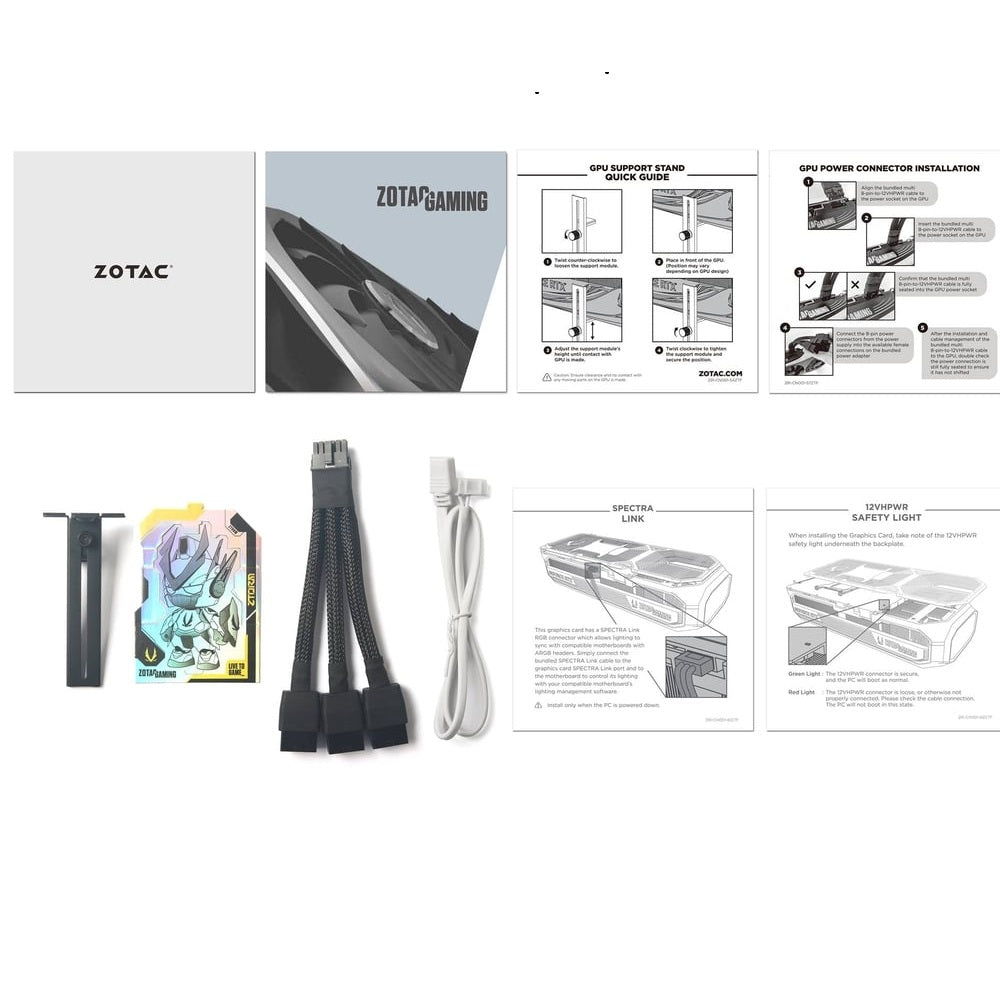

| Accessories |
User Manual
3 x 8-pin-to-12VHPWR cable
SPECTRA LINK cable
GPU Support Stand
|
