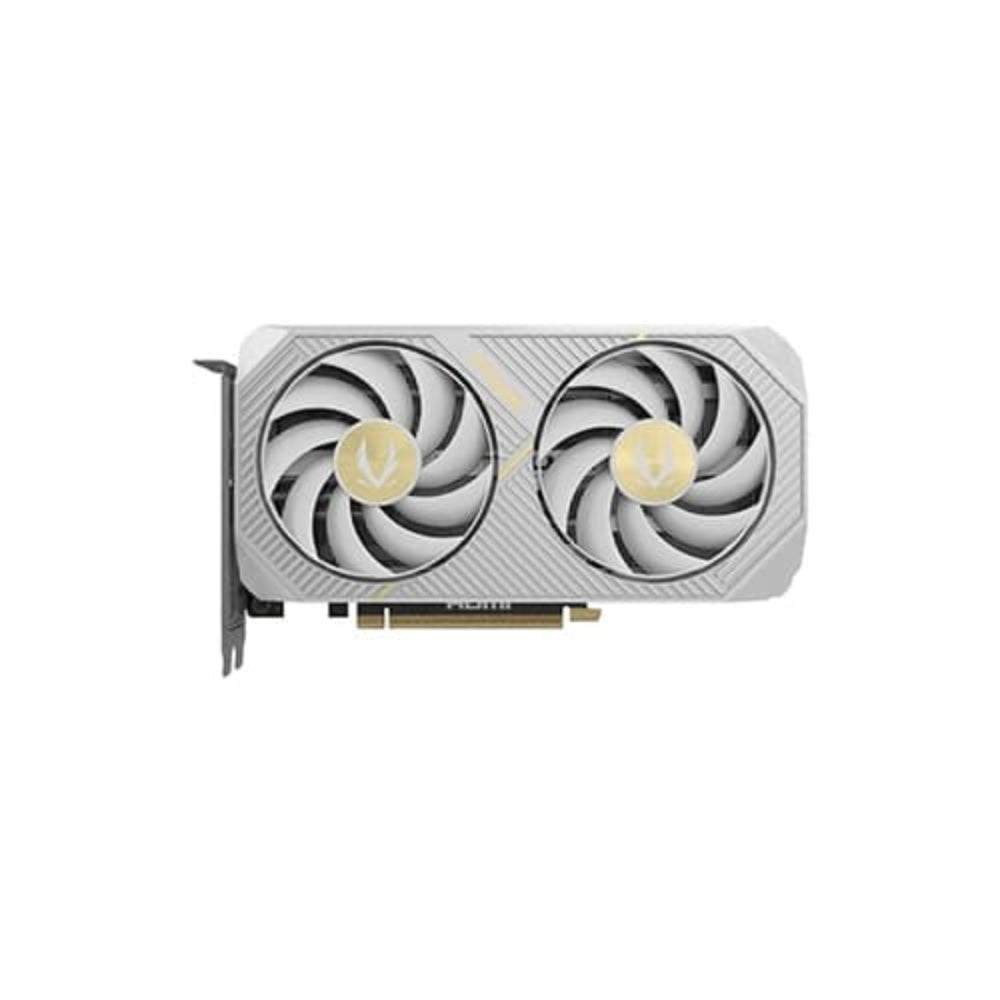

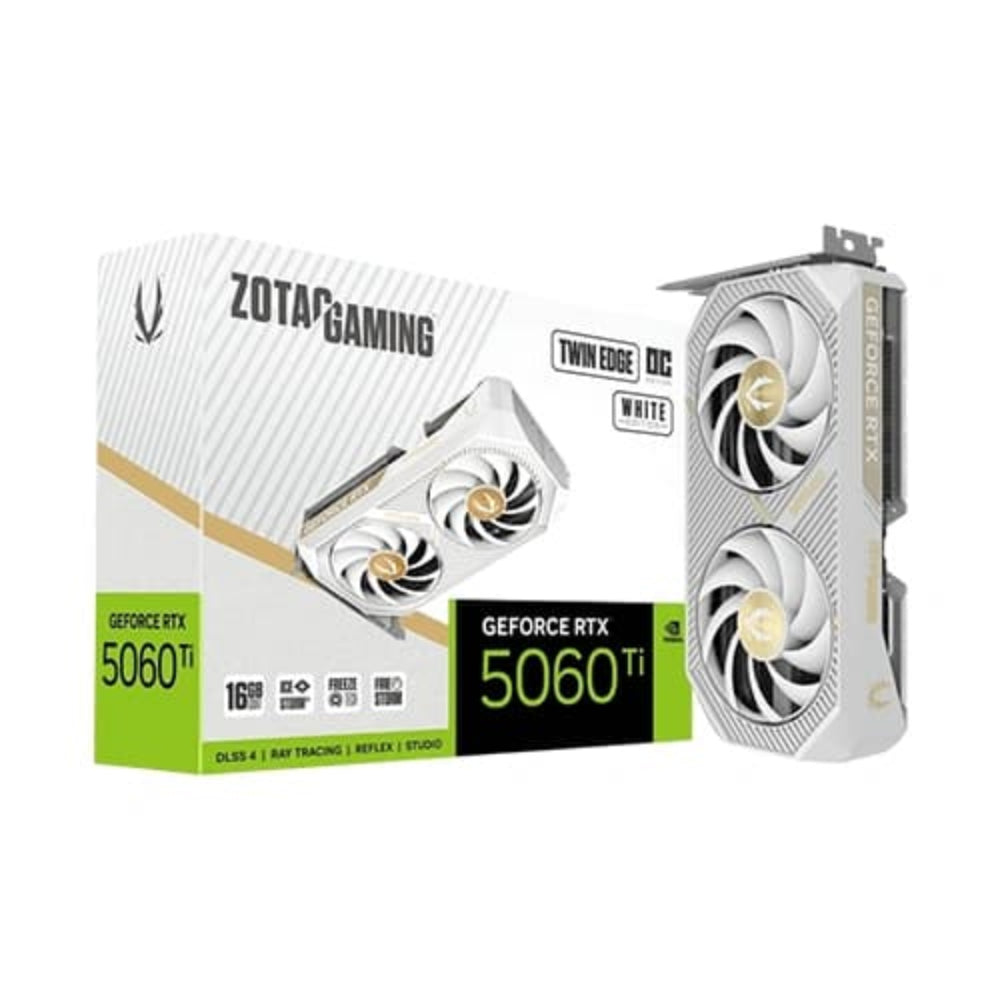

Features of ZOTAC Gaming Geforce RTX 5060 Ti Twin Edge OC White 16GB NVIDIA Graphic Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready Graphics Card
- Compact dual-fan form factor
- IceStorm 2.0 Cooling
- BladeLink Fans
- FREEZE Fan Stop
- Metal Backplate
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC White Edition is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC White Edition is ready to take on the latest title releases with smooth framerates and performance.
GAMING AND STYLE
ZOTAC reimagines one of the core essentials of a performance PC, as the centerpiece of an entire setup. Blending design, performance, and airflow dynamics, the ZOTAC GAMING GeForce RTX 50 series GPUs blur the line between tech and art
WIDE CASE COMPATIBILITY
The compact design of the ZOTAC GAMING GeForce RTX 5060 Series of GPUs are SFF-ready, making it easier for gamers looking to upgrade. With a slim 2-slot width and up to 8.7inch / 220.5mm short length, most PC cases available can easily accommodate with a simple drop-in installation.
STANDARD 8-PIN POWER
A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 650W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5060 Series a more appealing upgrade choice.
- Pass-through structural housing
- Free flowing air movement
- Full-length heatsink
Composite heatpipes
- Thicker envelope
- Multi-channel working fluid
- Grooved wick

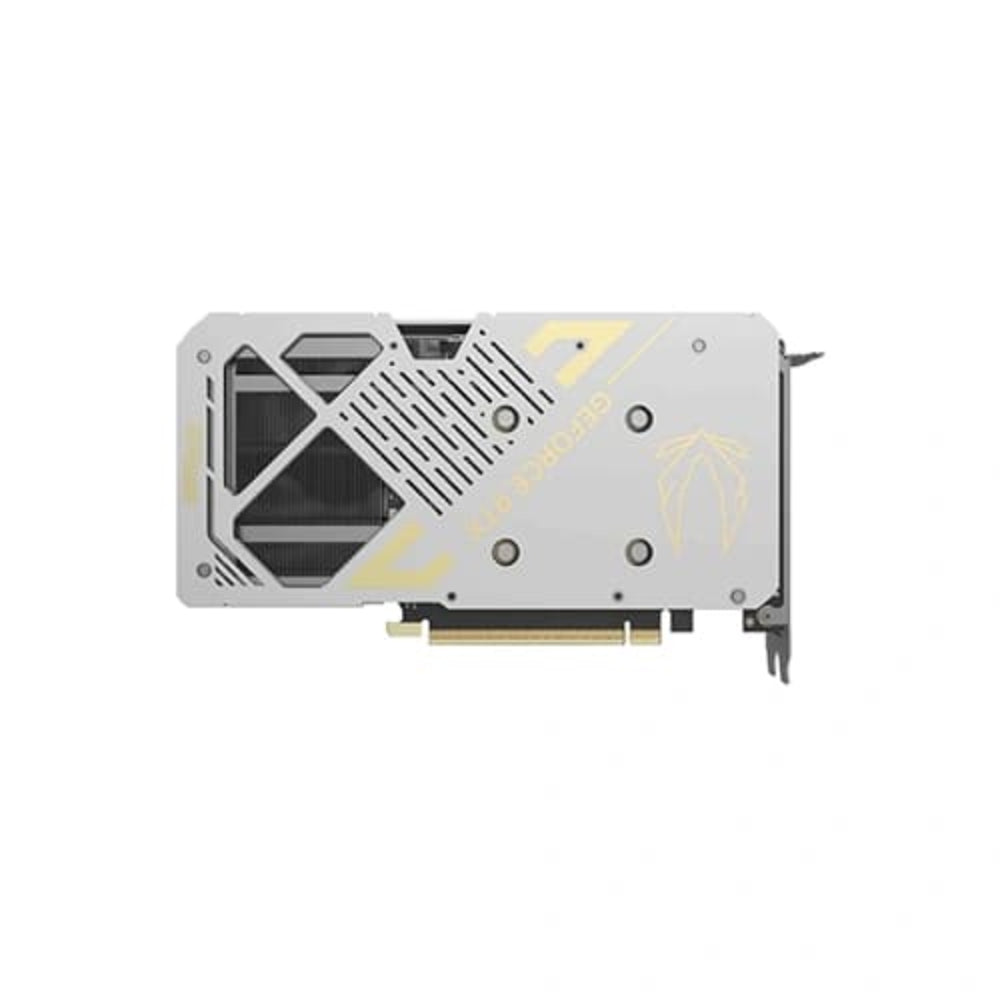

METAL BACKPLATE
The ZOTAC GAMING GeForce RTX 5060 Series rigidity is achieved with a metal backplate, giving it a strong foundation in durability.
Specifications of ZOTAC Gaming Geforce RTX 5060 Ti Twin Edge OC White 16GB NVIDIA Graphic Card
| Product Code |
ZT-B50620Q-10M |
| Chipset |
NVIDIA GEFORCE |
| GPU |
RTX 5060 Ti |
| Engine Clock |
2602 MHz |
| PCI EXPRESS |
5 |
| MEMORY CLOCK |
28 Gbps |
| MEMORY SIZE |
16 GB |
| MEMORY INTERFACE |
128-BIT |
| MEMORY TYPE |
GDDR7 |
| OpenGL |
4.6 |

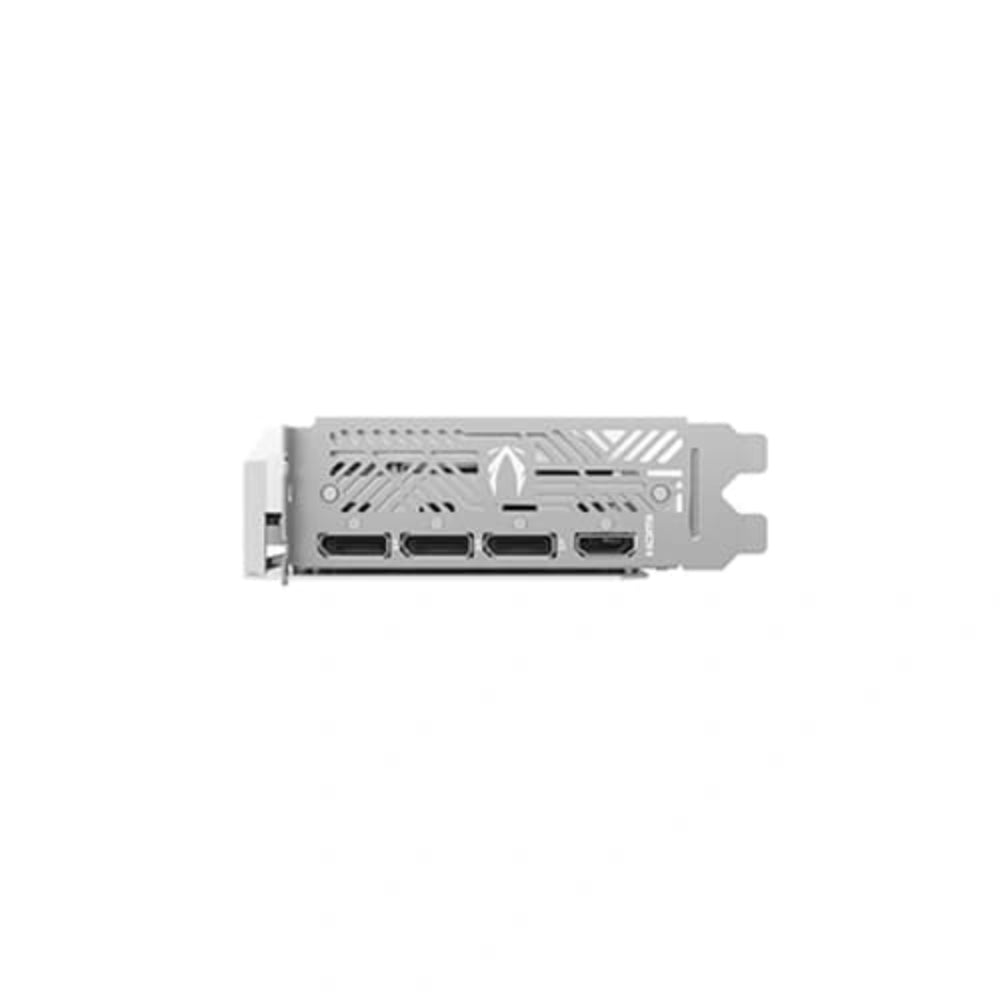

| PORTS |
HDMI,DisplayPort |
| DirectX |
12 Ultimate |
| RESOLUTION |
7680 x 4320 |
| COOLER |
Dual Fan |
| Max Display Support |
4 |
| Recommended PSU |
600W |
| GPU CORE (CUDA CORE) |
4608 |
| POWER CONNECTORS |
1 x 8-pin |
| WARRANTY |
3+2 Years |
| NOTE** |
Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
