Features of ZOTAC Gaming GeForce RTX 2060 Super Mini 8GB Nvidia Graphic Card
ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI 8GB GRAPHICS CARD is Zotac's compact version of the fan-favorite RTX 2060. ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI 8GB GRAPHICS CARD is mini in size but has the same big performance due to the increased number of CUDA cores.
ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI being a small card, it is supported by 99 percent of the cabinets for compact builds. The GPU runs on the Turing GPU architecture and comes with a blazing fast GDDR6 interface and has a VRAM of 8GB with a memory bus of 256-bit.

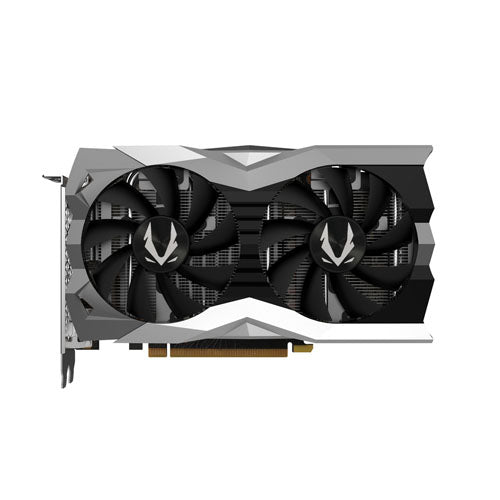

The ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI is featured with ZOTAC’s ice storm 2.0 cooling system which uses high-quality engineered aluminum heat sinks along with copper pipes for heat transfer and dissipation. The two 90mm fans constantly remove heat from the whole heat sink and keeping the GPU core and PCB cool.

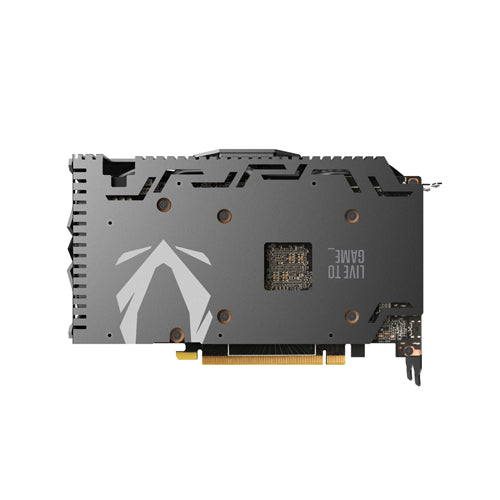

The ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI is covered by a metal backplate to prevent the GPU PCB from getting damaged. ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI comes with the recommended system power of 550Watts to function properly. The GPU needs an 8 pin supplementary power connector to function.
The ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI also supports all the APIs like the Microsft DirectX12, OpenGL 4.5, and VULKAN API. The maximum supported resolution is 4096x2160 making it suitable to use for bigger displays. The ZOTAC GAMING GEFORCE RTX 2060 SUPER MINI has DisplayPort 1.4 along with HDMI 2.0. The GPU comes with a 3+2-year warranty.
GEFORCE® RTX SUPER™ SERIES
The ZOTAC GAMING GeForce RTX SUPER™ series is powered by the award-winning NVIDIA Turing architecture with dedicated Al and ray-tracing cores for ultimate performance and graphics.
NVIDIA TURING™ ARCHITECTURE
This revolutionary architecture, combined with our all-new ZOTAC GAMING GeForce RTX SUPER platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You've never created and enjoyed games like this before.
REAL-TIME RAY TRACING IN GAMES
Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what's possible using traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of real-time ray tracing.
PERFORMANCE
The ZOTAC GAMING GeForce RTX SUPER series come loaded with superfast GDDR6 memory and powerful graphic card to unleash your creative productivity and gaming dominance.
ICESTORM 2.0
The ZOTAC GAMING GeForce RTX SUPER™ graphics cards feature our most powerful cooling hardware. IceStorm 2.0 enables cooler, quieter, and stronger overall sustained performance.
ACTIVE FAN CONTROL
Two individual fan controllers allow users to adjust fan rotations independently and apply increased airflow only to where and when it's needed, reducing overall noise and increasing longevity while still keeping things cool under the hood and performance going strong. It's all done automatically so there's nothing you need to do.
- Turing Architecture, Ray Tracing Cores, Tensor Cores, NVIDIA DLSS
- 8GB 256-bit GDDR6, 14Gbps
- IceStorm 2.0, our strongest cooling, metal wraparound backplate, LED Lit logo (white)
- 4K Ready, 4 display ready, Super compact 8.3-inch length

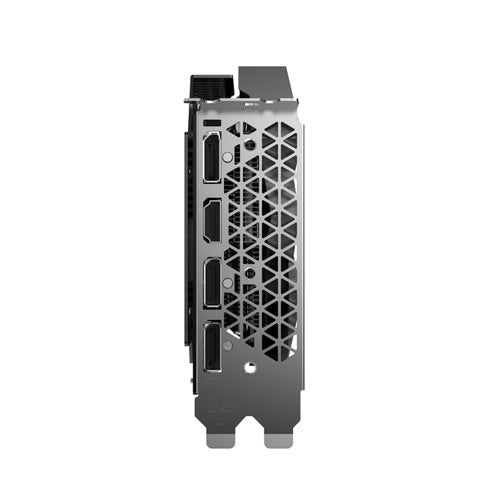

- 3 x DisplayPort 1.4, 1 x HDMI 2.0b
- Boost Clock 1650 MHz
Specifications of ZOTAC Gaming GeForce RTX 2060 Super Mini 8GB Nvidia Graphic Card
| GPU |
GeForce RTX 2060 |
| CUDA Cores |
2176 |
| Video Memory |
8GB GDDR6 |
| Memory BUS |
256-bit |
| Engine Clock |
Boost: 1650 MHz |
| Memory Clock |
14 Gbps |
| PCI Express |
PCIE 3.0 |
| Display Outputs |
3 x DisplayPort 1.4 (4096x2160@60Hz)
HDMI 2.0 (3840x2160@60Hz)
|
| HDCP Support |
Yes |
| Multi Display Capability |
4 |
| Recommended Power Supply |
550W |
| Power Consumption |
175W |
| Power Input |
8-pin |
| DirectX |
12 API feature level 12_1 |
| OpenGL |
4.5 |
| Cooling |
Dual fan |
| Slot Size |
Dual Slot |
| SLI |
N/A |
| Supported OS |
Windows 10 / 7 64-bit, Linux 64-bit |
| Card Length |
209.6mm x 119.3mm x 41mm (8.3in x 4.7in x 1.61in) |
| Accessories |
User Manual |
| Warranty |
Standard Warranty: 2 years Extended Warranty: +3 year Total Warranty: 5 years total Product registration is must to get Extended Warranty. Register product at https://www.zotac.com/in/support#registration |
| Note |
Price, feature and specifications are subject to change without notice. |
