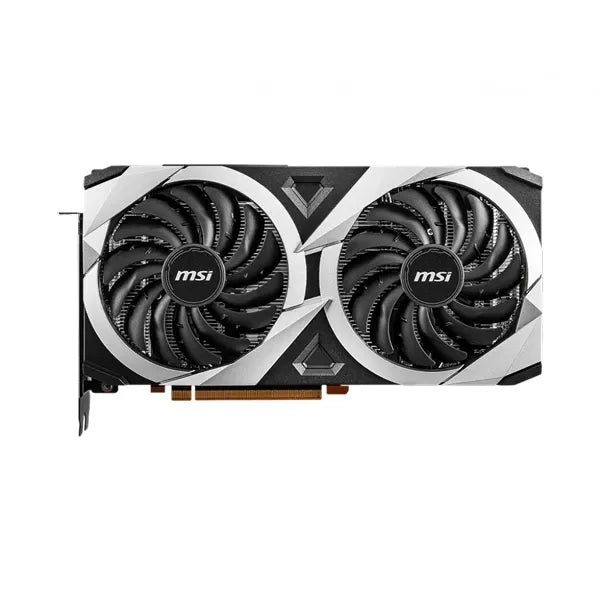

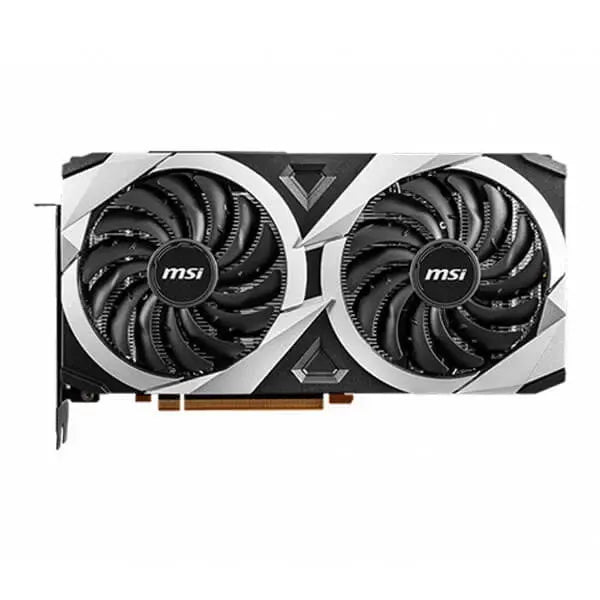

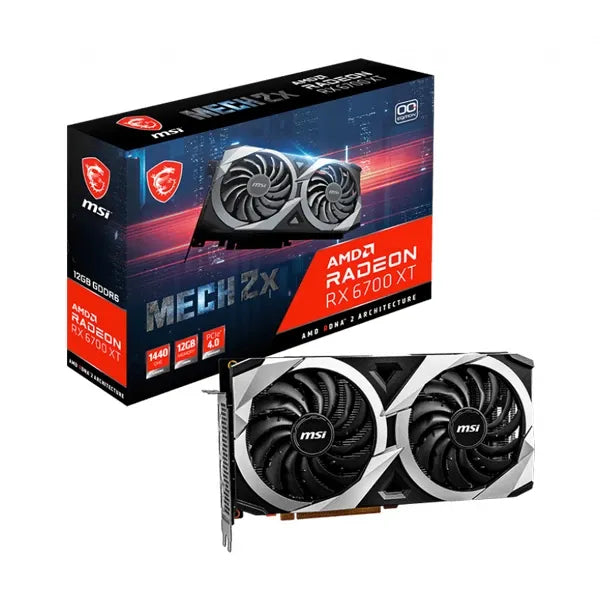

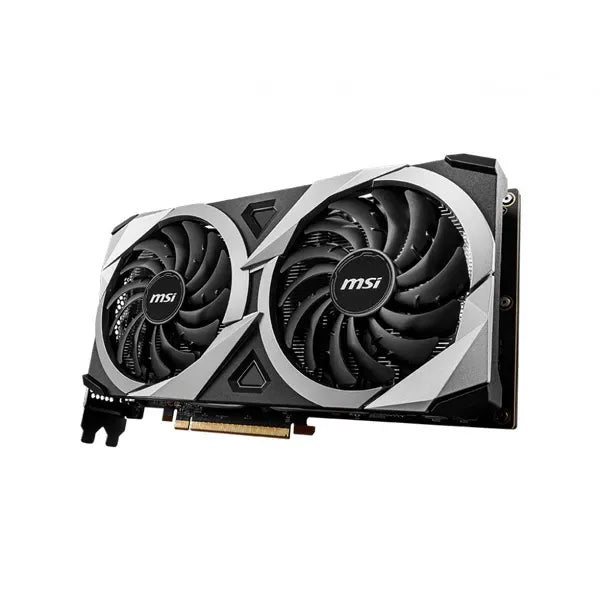

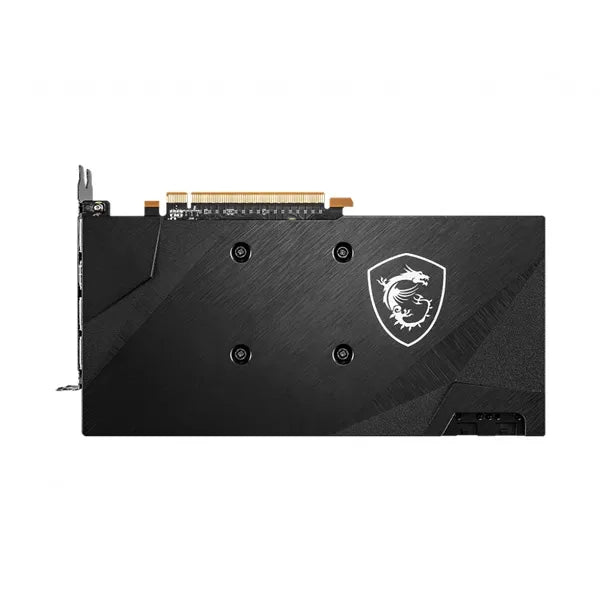

Features of MSI Radeon RX 6700 XT Mech OC 12GB AMD Graphic Card
MSI Radeon RX 6700 XT Mech OC 12GB AMD Graphic Card Based On AMD RDNA2 Architecture, Comes with 2560 Stream Processors, 2620 MHz Boost Clock, 16 Gbps Memory Clock and Ray Tracing Support.
Performance to dominate your game. The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, featuring 40 powerful enhanced Compute Units, the all new AMD Infinity Cache and 12GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and powerhouse 1440p resolution gaming.
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design combined with lowest video card prices that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
Forged from Enhanced Materials
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Tough Enough to Back You Up!
MECH has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Boost Clock / Memory Speed
- Up to 2620 MHz / 16 Gbps
- 12GB GDDR6
-

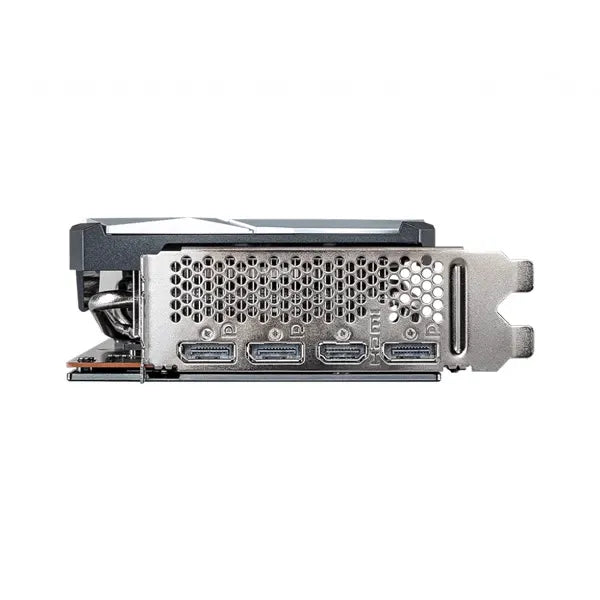

DisplayPort x 3 (v1.4)
HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)
Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system's performance.
- Predator: In-game video recording.
Dragon Center
MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications of MSI Radeon RX 6700 XT Mech OC 12GB AMD Graphic Card
| MODEL |
RX-6700-XT-MECH-2X-12G-OC |
| CHIPSET |
AMD RADEON |
| GPU |
RX 6700 XT |
| PCI EXPRESS |
4.0 |
| GPU BOOST CLOCK |
(Game Clock) - 2474 MHz |
|
(Boost Clock) - 2620 MHz |
| MEMORY CLOCK |
16 Gbps |
| MEMORY SIZE |
12 GB |
| MEMORY INTERFACE |
192-BIT |
| MEMORY TYPE |
GDDR6 |
| DIRECT X SUPPORT |
12 |
| OPEN GL |
4.6 |
| PORTS |
HDMI : Yes 1 x HDMI 2.1 |
|
DisplayPort : Yes 3 x DisplayPort 1.4 |
| RESOLUTION |
7680x4320 |
| CROSS FIRE-X SUPPORTED |
Yes |
| COOLER |
TROX FAN 3.0 |
| DUAL-LINK DVI SUPPORTED |
N/A |
| SOFTWARE |
MSI Afterburner and Drivers |
| PACKAGE CONTENTS |
Graphics Card, User Manual |
| POWER CONNECTORS |
2 x 8-pin |
| WARRANTY |
3 Years |
| NOTE** |
***Features, Price and Specifications are subject to change without notice. |
