Features of MSI GeForce RTX 5060 Ti Inspire 2X OC 8GB Graphic Card
GeForce RTX™ 5060 Ti 8G INSPIRE 2X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
Extreme Performance: 2632 MHz (MSI Center)
Boost: 2617 MHz
- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
BIG VISION, SMALL FORM
INSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
Compact Design, Boundless Creativity
INSPIRE combines a small form factor with enhanced performance, making it the perfect fit for creative professionals seeking efficiency.

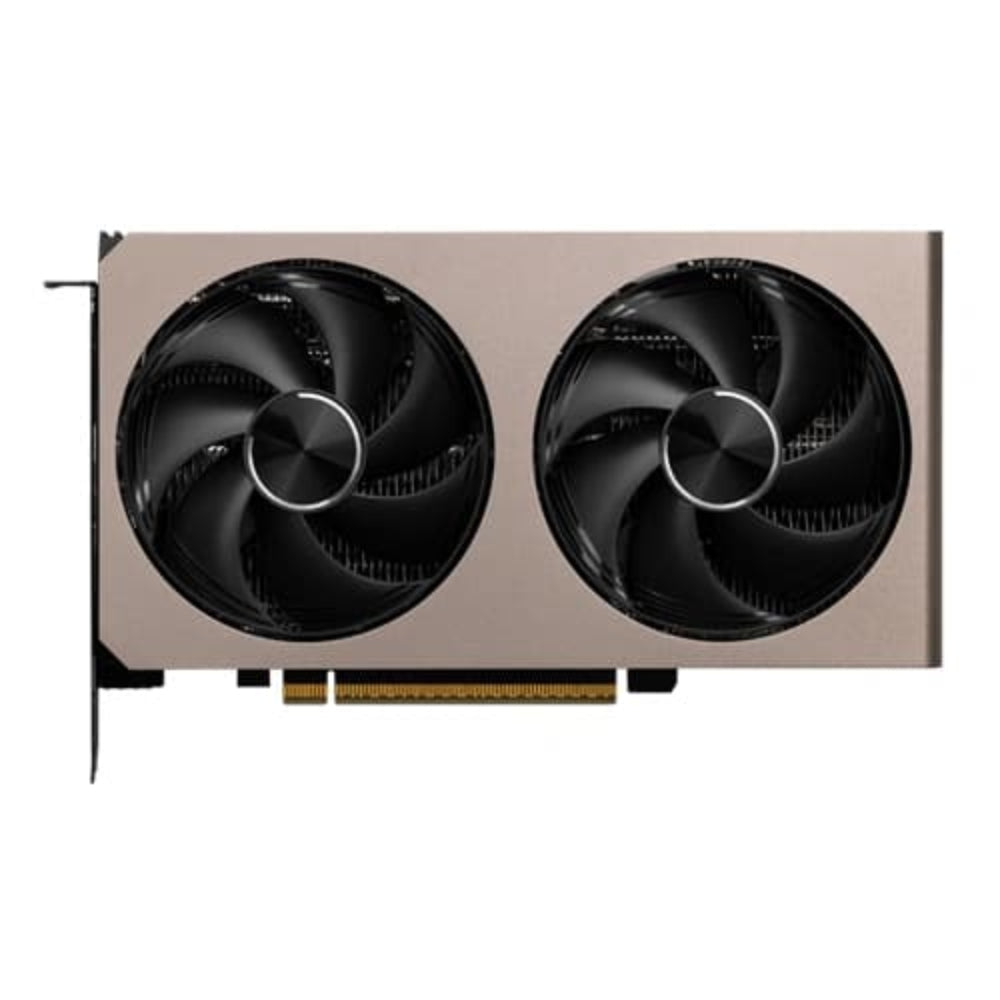

DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
Specification of MSI GeForce RTX 5060 Ti Inspire 2X OC 8GB Graphic Card
| Product Code |
G506T-8I2C |
| Chipset |
NVIDIA GEFORCE |
| GPU |
RTX 5060 Ti |
| Engine Clock |
Extreme Performance: 2632 MHz
Boost: 2617 MHz |
| PCI EXPRESS |
5 |
| MEMORY CLOCK |
28 Gbps |
| MEMORY SIZE |
8 GB |
| MEMORY INTERFACE |
128-BIT |
| MEMORY TYPE |
GDDR7 |
| OpenGL |
4.6 |

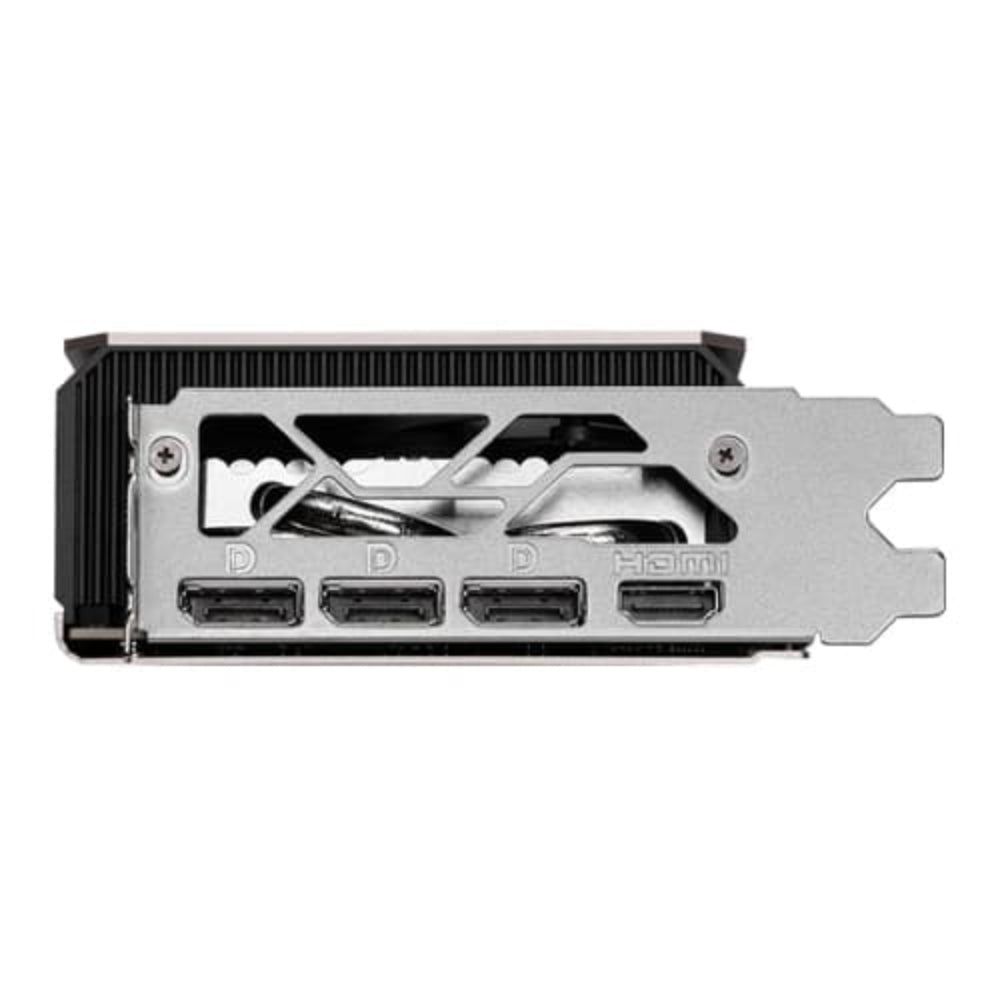

| PORTS |
HDMI,DisplayPort |
| DirectX |
12 Ultimate |
| RESOLUTION |
7680 x 4320 |
| COOLER |
Dual Fan |
| Max Display Support |
4 |
| Recommended PSU |
600W |
| GPU CORE (CUDA CORE) |
4608 |
| POWER CONNECTORS |
1 x 8-pin |
| WARRANTY |
3 Years |
| NOTE** |
***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
