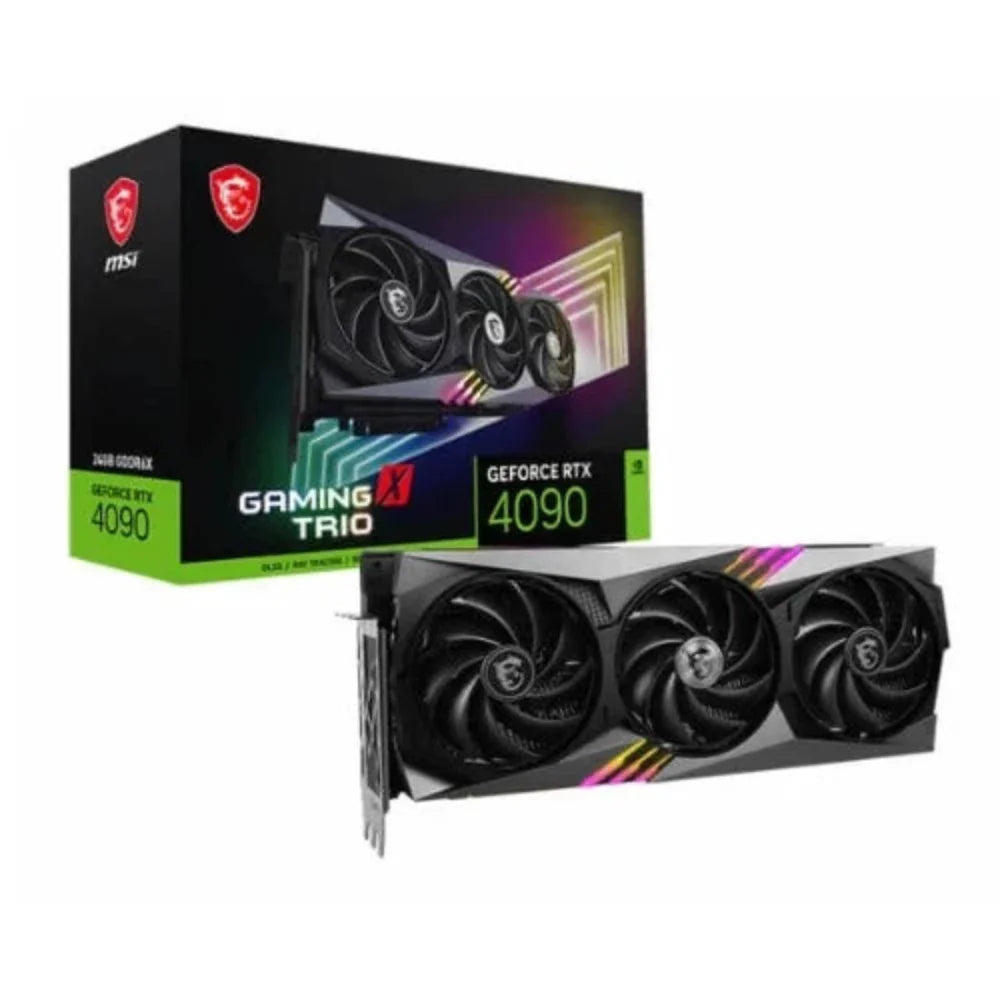

Features Of MSI GeForce RTX 4090 Gaming X Trio 24GB
The NVIDIA® GeForce RTX® 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X msi rtx 4090 to deliver the ultimate experience for gamers and creators.
Boost Clock / Memory Speed
- 2595 MHz / 21 Gbps
- 24GB GDDR6X

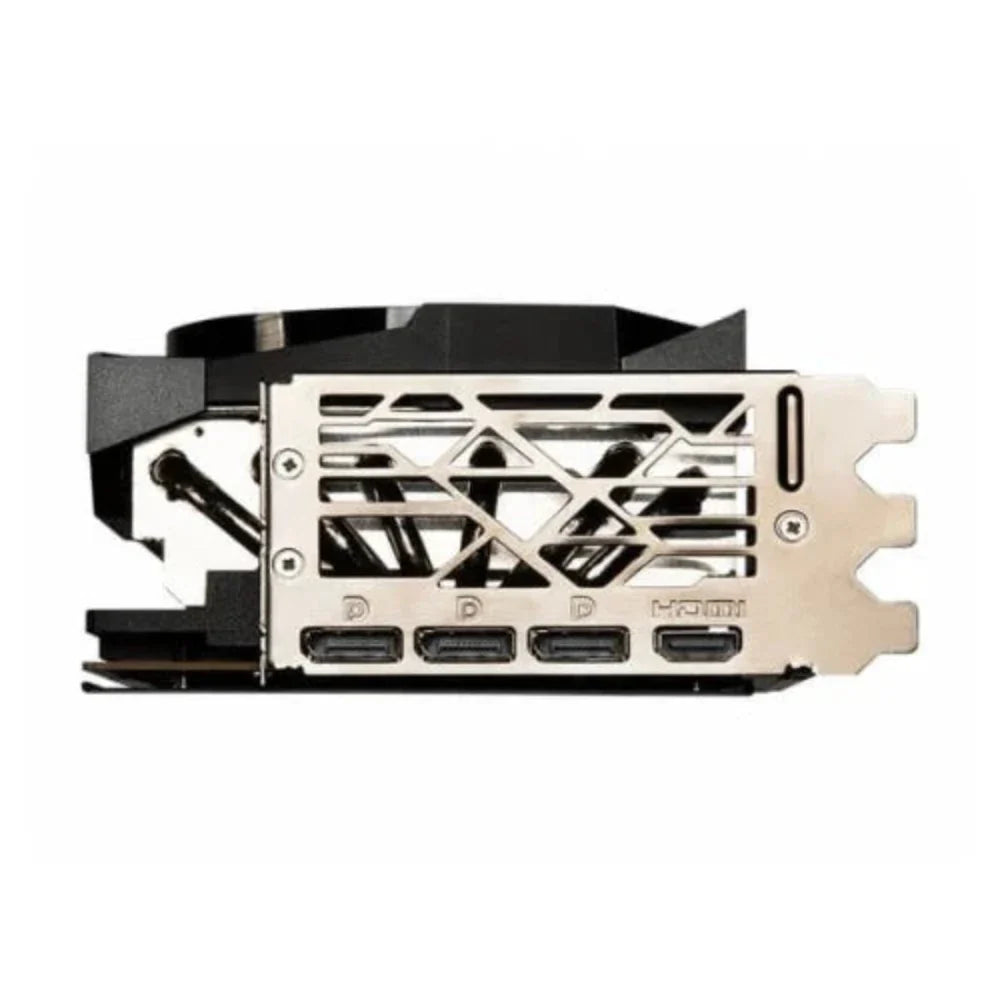

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

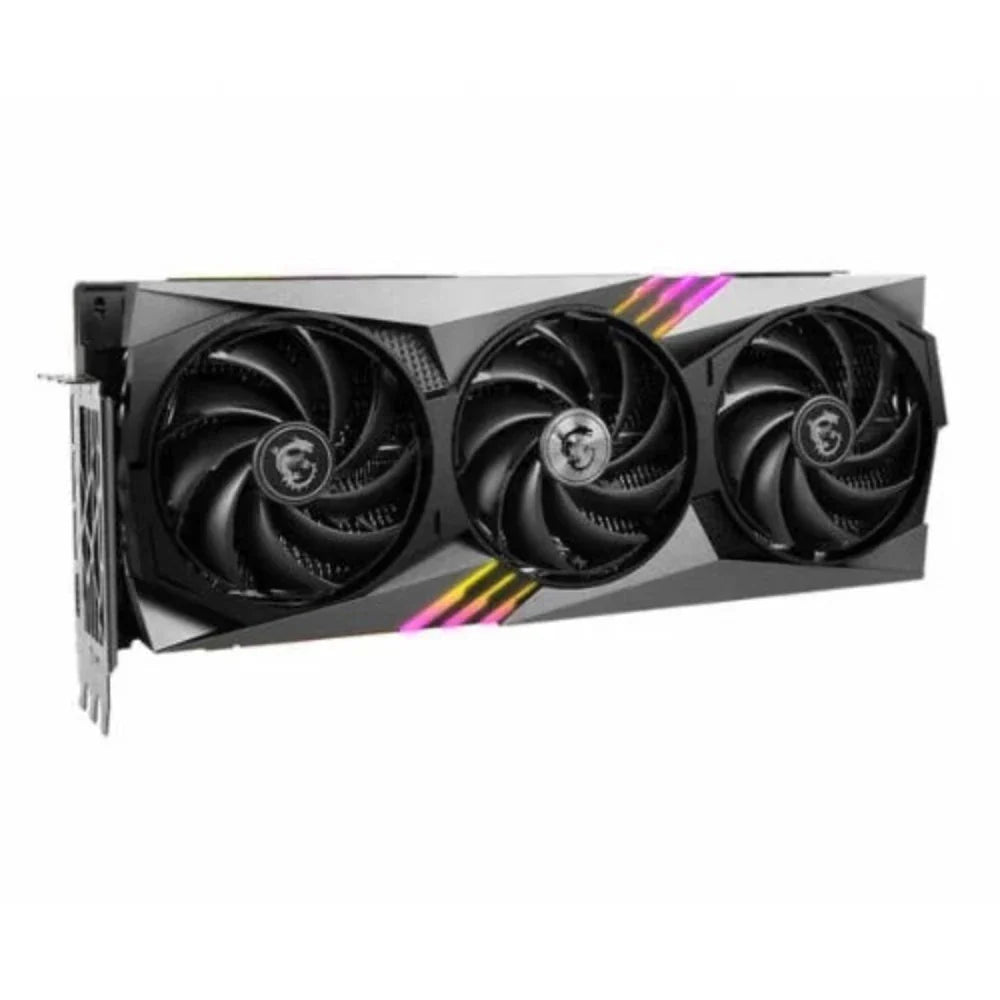

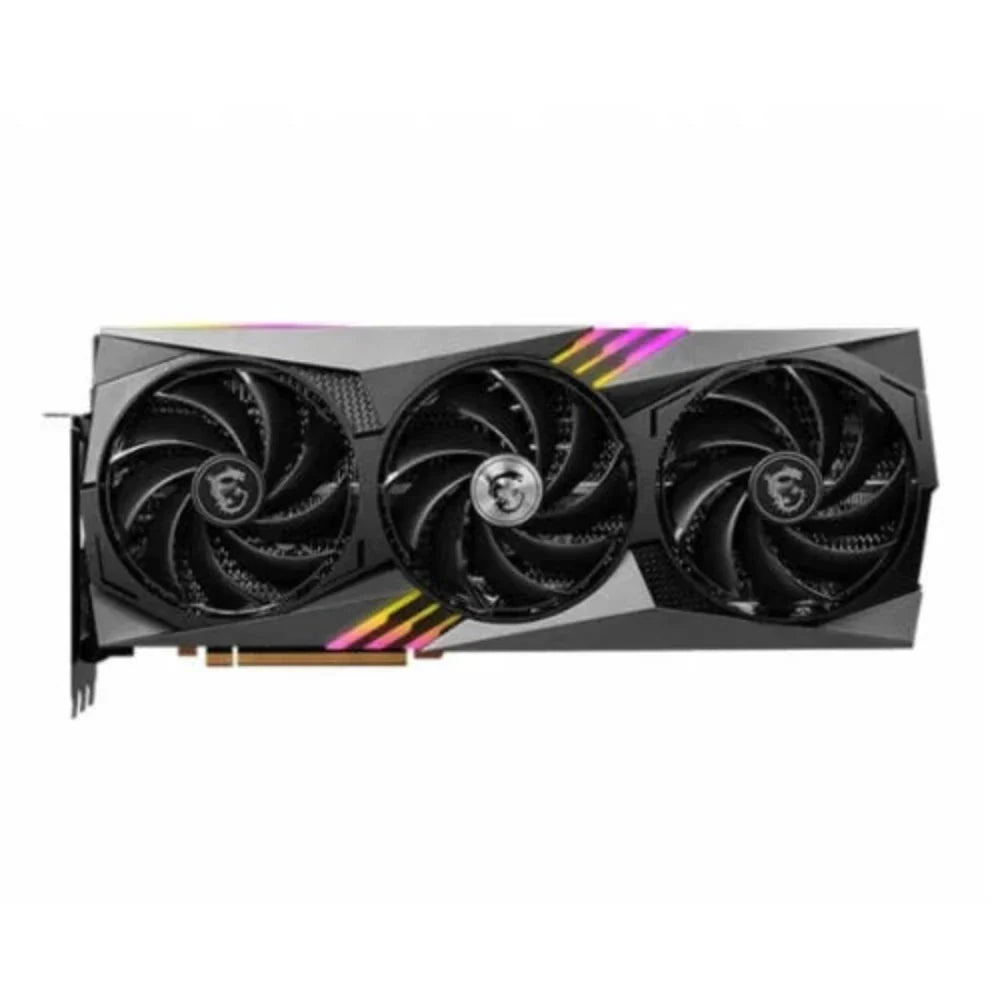

TRI FROZR 3 Thermal Design
-
TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
-
Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
-
Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
-
Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications Of MSI GeForce RTX 4090 Gaming X Trio 24GB
| MODEL NAME |
GeForce RTX™ 4090 GAMING X TRIO 24G |
| GeForce RTX™ 4090 GAMING X TRIO 24G |
NVIDIA® GeForce RTX™ 4090 |
| INTERFACE |
PCI Express® Gen 4
|
| CORE CLOCKS |
Extreme Performance: 2610 MHz (MSI Center) |
|
Boost: 2595 MHz (GAMING & SILENT Mode) |
| CUDA® CORES |
16384 Units |
| MEMORY SPEED |
21 Gbps |
| MEMORY |
24GB GDDR6X |
| MEMORY BUS |
384-bit |
| OUTPUT |
DisplayPort x 3 (v1.4a) |
|
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
| HDCP SUPPORT |
Y |
| POWER CONSUMPTION |
450 W |
| POWER CONNECTORS |
16-pin x 1 |
| RECOMMENDED PSU |
850 W |
| CARD DIMENSION (MM) |
337 x 140 x 77 mm |
| WEIGHT (CARD / PACKAGE) |
2170 g / 3093 g |
| DIRECTX VERSION SUPPORT |
12 Ultimate |
| OPENGL VERSION SUPPORT |
4.6 |
| MAXIMUM DISPLAYS |
4 |
| G-SYNC® TECHNOLOGY |
Y |
| DIGITAL MAXIMUM RESOLUTION |
7680x4320 |
|
|
