Features Of MSI GeForce RTX 4080 Gaming X Trio 16GB
- Boost Clock / Memory Speed
- TBD / 22.4 Gbps
- 16GB GDDR6X
-

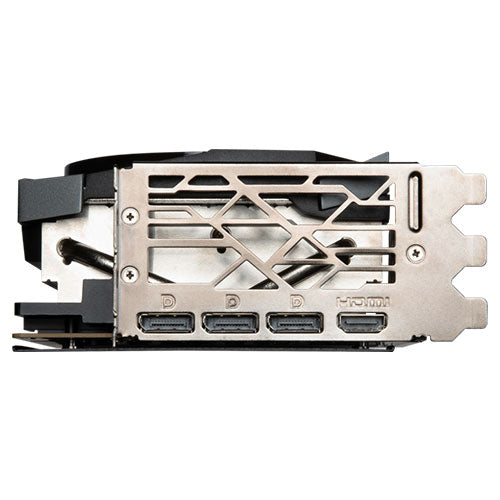

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
- TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
- Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
- Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
- MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
Specifications Of MSI GeForce RTX 4080 Gaming X Trio 16GB
| Graphics Processing Unit |
MSI GeForce RTX 4080 Gaming X Trio 16GB |
| Interface |
PCI Express® Gen 4 |
| Core Clocks |
TBD |
| Cuda Cores |
9728 Units |
| Memory Speed |
22.4 Gbps |
| Memory |
16GB GDDR6X |
| Memory Bus |
256-Bit |
| Output |
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
|
| HDCP Support |
Y |
| Power Consumption |
TBD |
| Power Connectors |
16-Pin x 1 |
| Recommeneded PSU |
850 W (Min.750 W) |
| Card Dimension (mm) |
337 x 140 x 67 mm |
| Weight (Card / Package) |
1876 g / 2816 g |
| Direct X Version Support |
12 Ultimate |
| Open GL Version Support |
4.6 |
| Maximum Displays |
4 |
| G-Sync Technology |
Y |
| VR Ready |
Y |
| Digital Max Resolution |
7680 x 4320 |
| Warranty |
3 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
