Features Of MSI GeForce RTX 4070 Super Gaming Slim 12GB
Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2640 MHz / 21 Gbps
- 12GB GDDR6X

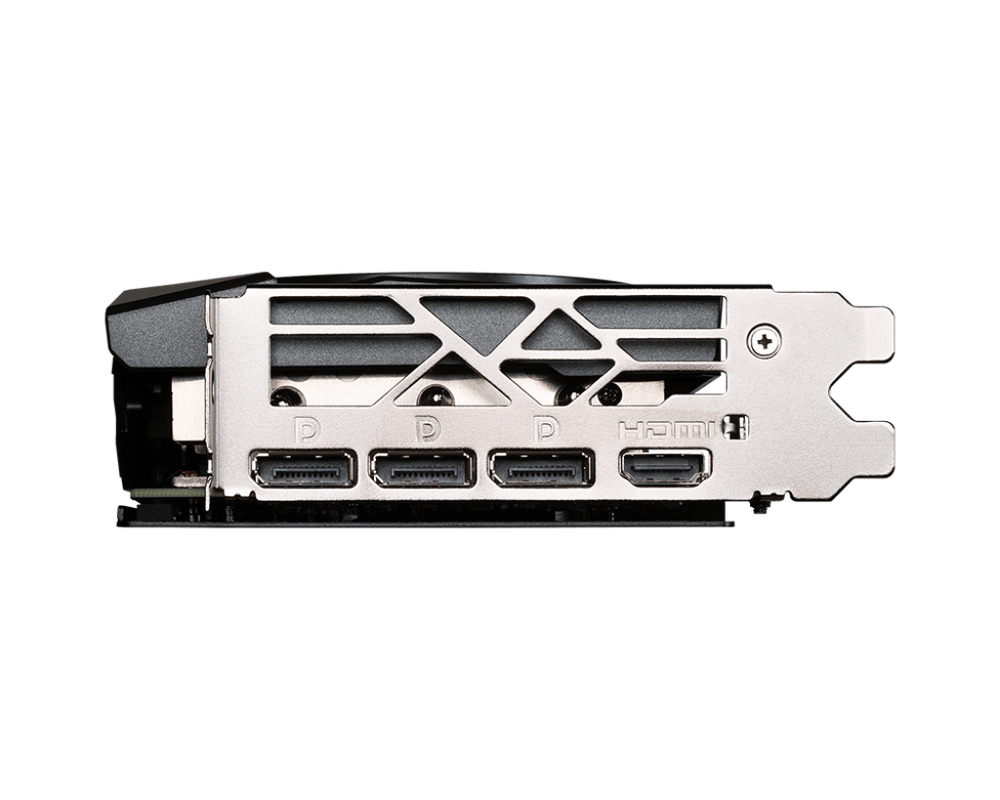

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

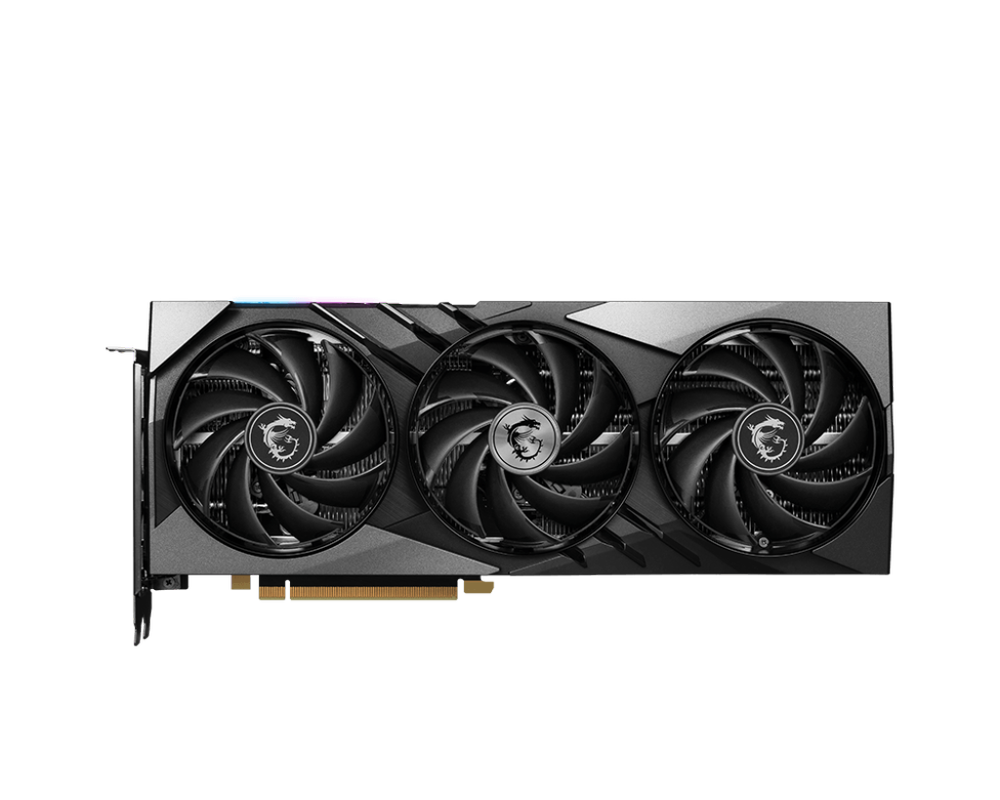

TRI FROZR 3 Thermal Design
-
TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
-
Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
-
Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
-
Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications Of MSI GeForce RTX 4070 Super Gaming Slim 12GB
| MODEL NAME |
MSI GeForce RTX 4070 Super Gaming Slim 12GB |
| GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 4070 SUPER
|
| INTERFACE |
PCI Express® Gen 4 |
| CORE CLOCKS |
Extreme Performance: 2490 MHz (MSI Center)
Boost: 2475 MHz
|
| CUDA® CORES |
7168 Units |
| MEMORY SPEED |
21 Gbps |
| MEMORY |
12GB GDDR6X |
| MEMORY BUS |
192-bit |
| OUTPUT |
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
|
| HDCP SUPPORT |
Y |
| POWER CONSUMPTION |
220 W
|
| POWER CONNECTORS |
16-pin x 1 |
| RECOMMENDED PSU |
650W |
| CARD DIMENSION (MM) |
307 x 125 x 46 mm
|
| WEIGHT (CARD / PACKAGE) |
972 g / 1585 g
|
| DIRECTX VERSION SUPPORT |
12 Ultimate |
| OPENGL VERSION SUPPORT |
4.6 |
| MAXIMUM DISPLAYS |
4 |
| G-SYNC® TECHNOLOGY |
Y |
| DIGITAL MAXIMUM RESOLUTION |
7680 x 4320
|
