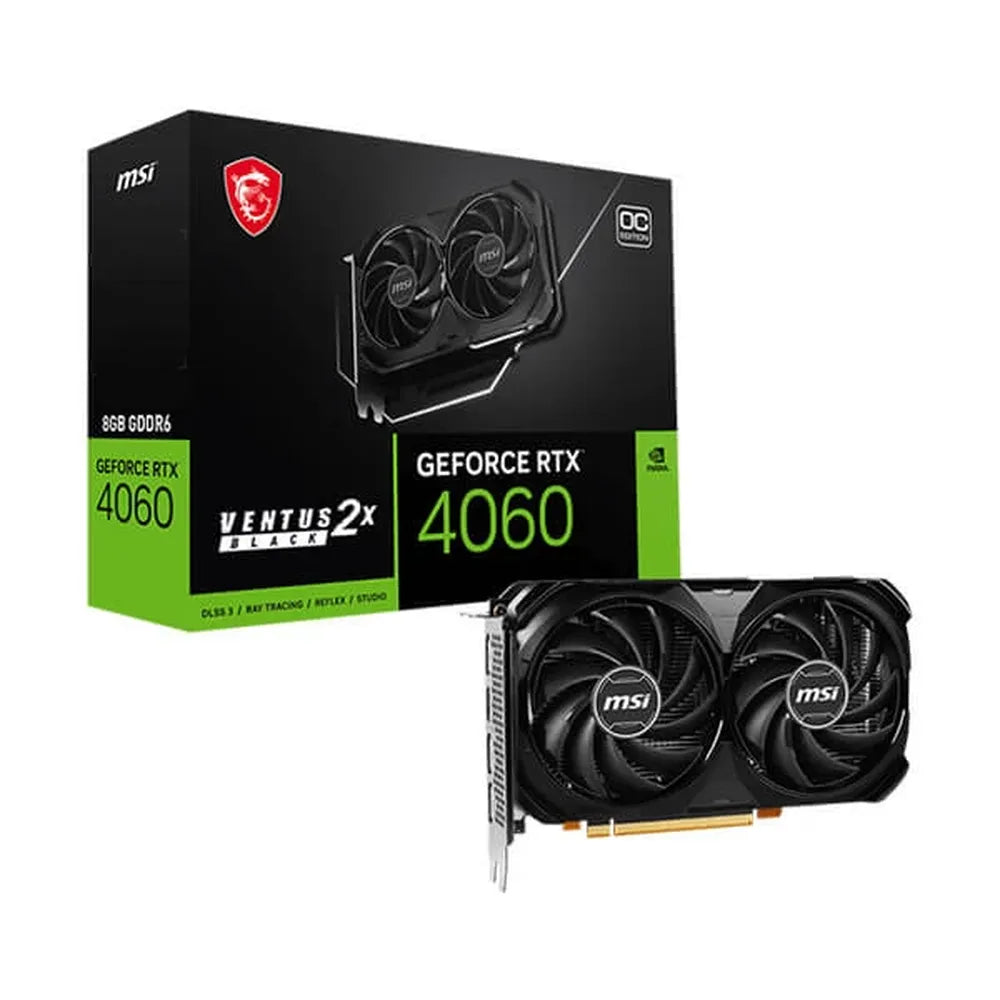

Features of MSI GeForce RTX 4060 Ventus 2X Black OC 8GB
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 graphics card lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3 and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2475 MHz / 17 Gbps
- 8GB GDDR6
-

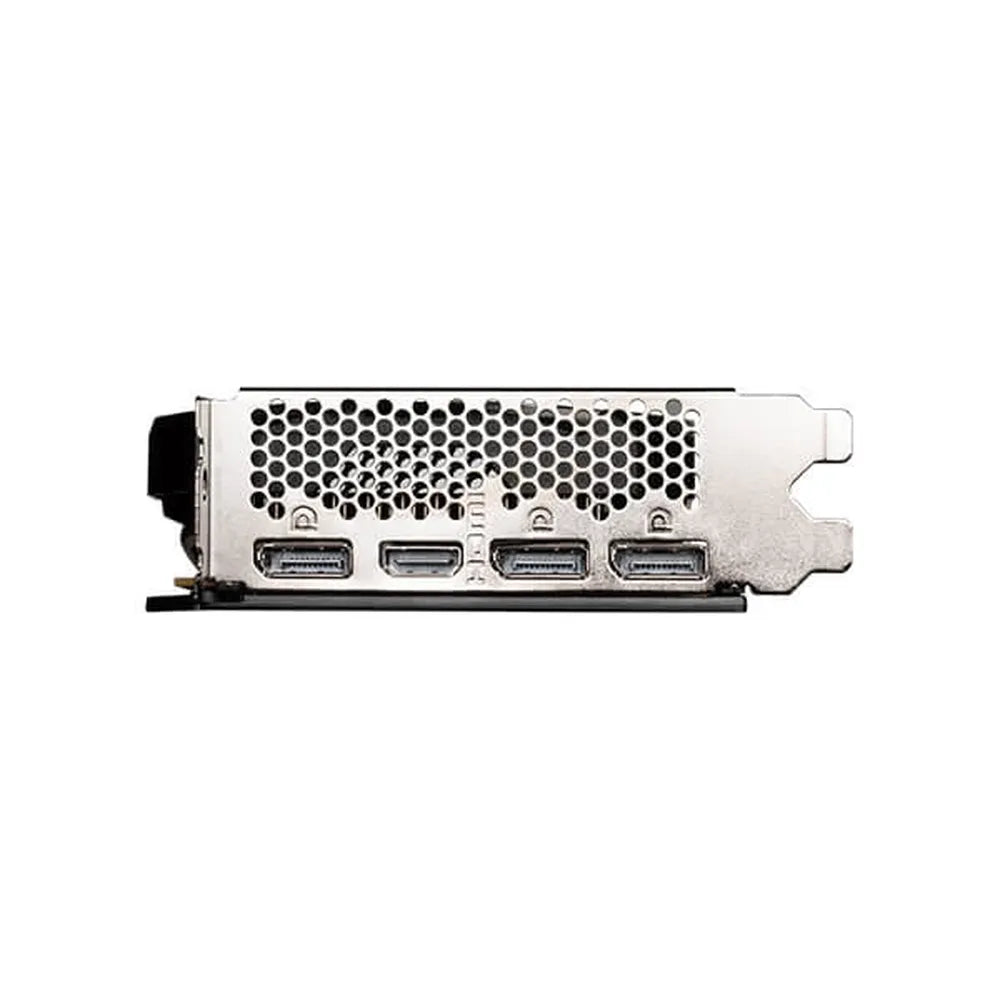

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

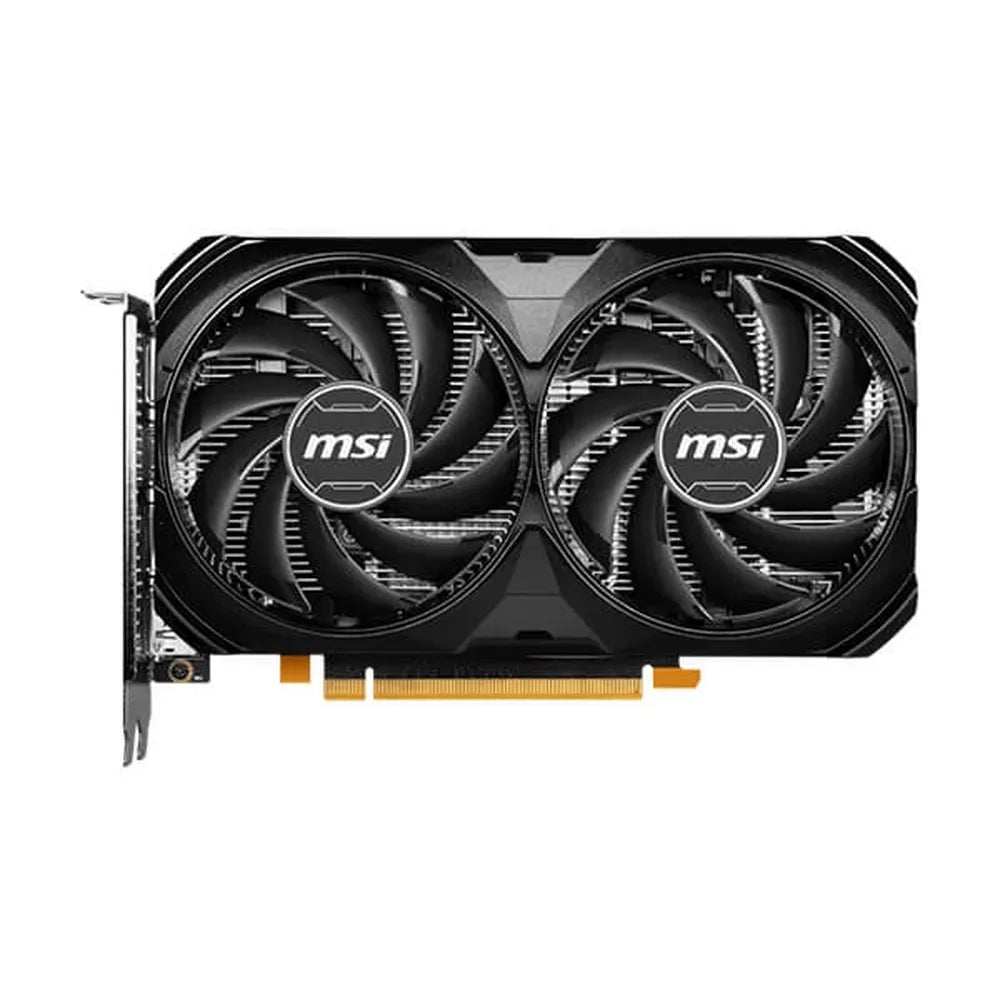

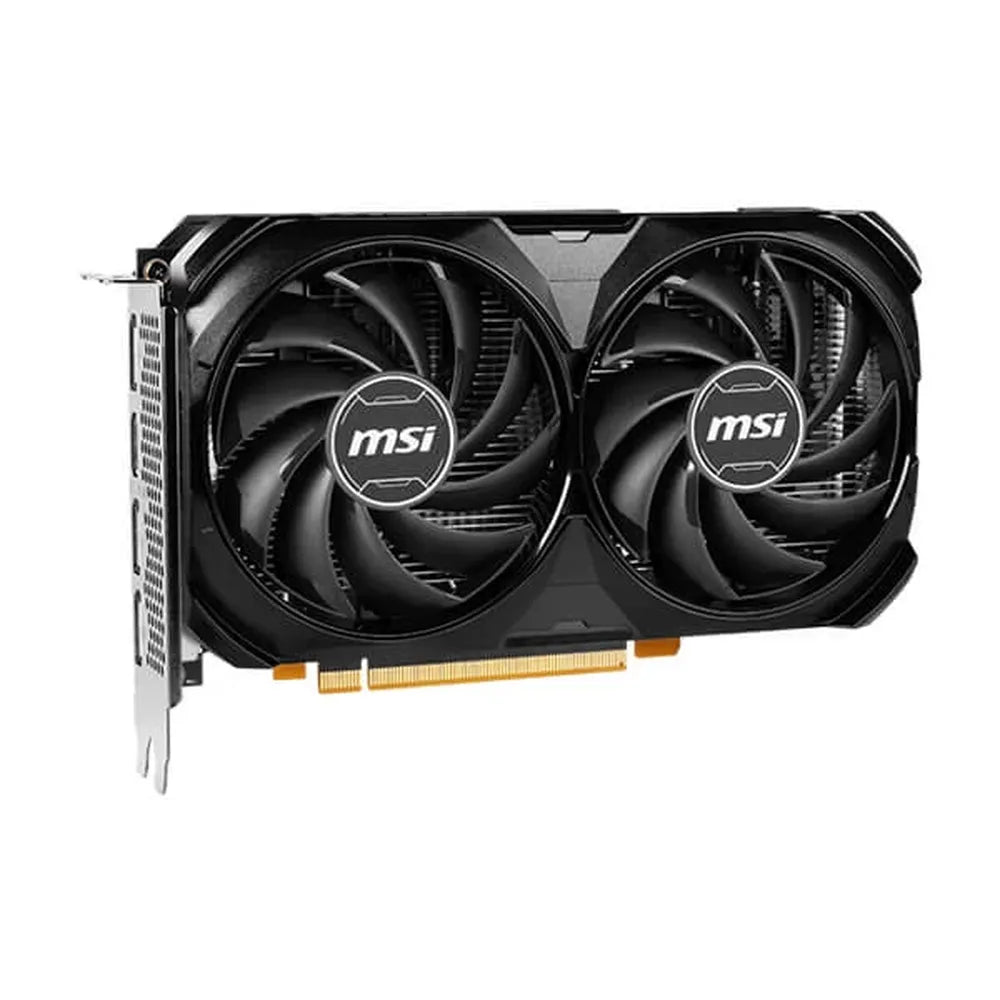

Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

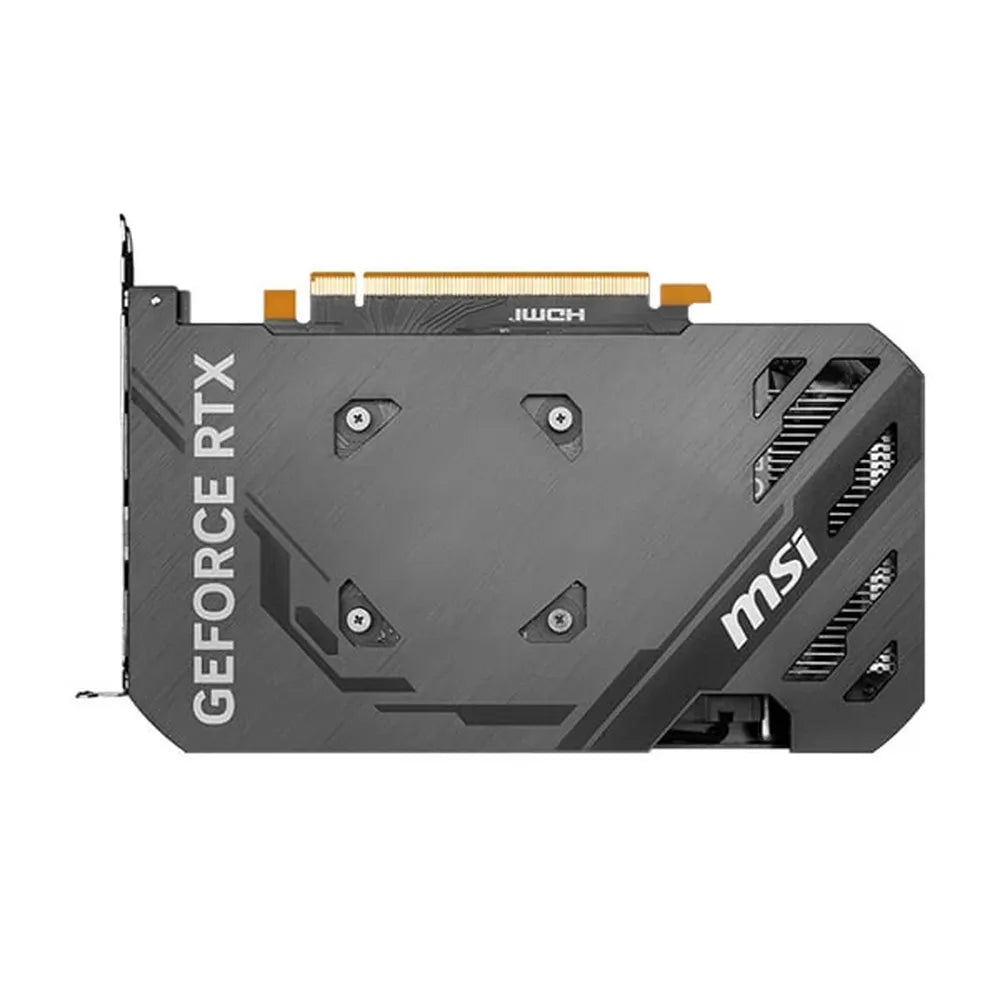

Reinforcing Backplate
- The reinforcing backplate features of msi rtx 4060 flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specification of MSI GeForce RTX 4060 Ventus 2X Black OC 8GB
| MODEL NAME |
MSI GeForce RTX 4060 Ventus 2X Black OC 8GB |
| GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 4060 |
| INTERFACE |
PCI Express® Gen 4 x 8 |
| CORE CLOCKS |
Extreme Performance: 2505 MHz (MSI Center) Boost: 2490 MHz |
| CUDA® CORES |
3072 Units |
| MEMORY SPEED |
17 Gbps |
| MEMORY |
8GB GDDR6 |
| MEMORY BUS |
128-bit |
| OUTPUT |
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
|
| HDCP SUPPORT |
Y |
| POWER CONSUMPTION |
115 W or 120 W |
| POWER CONNECTORS |
8-pin x 1 |
| RECOMMENDED PSU |
550 W |
| CARD DIMENSION (MM) |
199 x 120 x 41 mm |
| WEIGHT (CARD / PACKAGE) |
546 g / 783 g |
| DIRECTX VERSION SUPPORT |
12 Ultimate |
| OPENGL VERSION SUPPORT |
4.6 |
| MAXIMUM DISPLAYS |
4 |
| G-SYNC® TECHNOLOGY |
Y |
| DIGITAL MAXIMUM RESOLUTION |
7680 x 4320 |
