Features of MSI GeForce RTX 4060 Ti Gaming X 16GB Nvidia
Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2640 MHz / 18 Gbps
- 16GB GDDR6
-

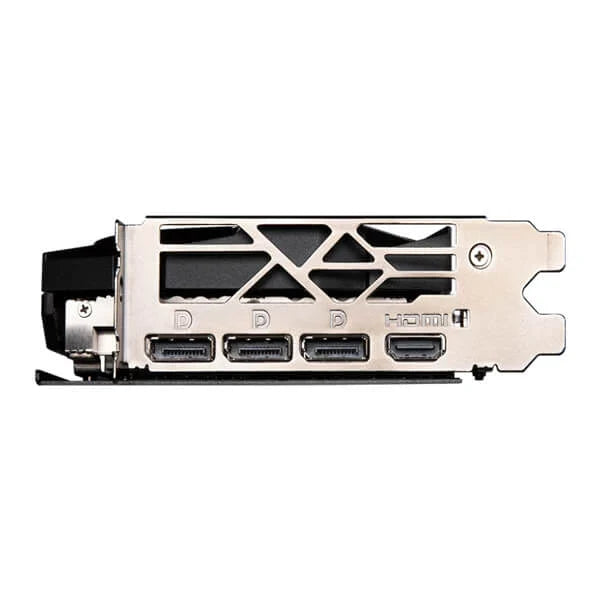

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TWIN FROZR 9 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications of MSI GeForce RTX 4060 Ti Gaming X 16GB Nvidia
| MODEL NAME |
MSI GeForce RTX 4060 Ti Gaming X 16GB |
| GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 4060 Ti |
| INTERFACE |
PCI Express® Gen 4 x16 (uses x8) |
| CORE CLOCKS |
Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
| CUDA® CORES |
4352 Units |
| MEMORY SPEED |
18 Gbps |
| MEMORY |
16GB GDDR6 |
| MEMORY BUS |
128-bit |
| OUTPUT |
DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
| HDCP SUPPORT |
Y |
| POWER CONSUMPTION |
165 W |
| POWER CONNECTORS |
8-pin x 1 |
| RECOMMENDED PSU |
550 W |
| CARD DIMENSION (MM) |
247 x 130 x 42 mm |
| WEIGHT (CARD / PACKAGE) |
672 g / 1089 g |
| DIRECTX VERSION SUPPORT |
12 Ultimate |
| OPENGL VERSION SUPPORT |
4.6 |
| MAXIMUM DISPLAYS |
4 |
| G-SYNC® TECHNOLOGY |
Y |
| DIGITAL MAXIMUM RESOLUTION |
7680 x 4320 |
