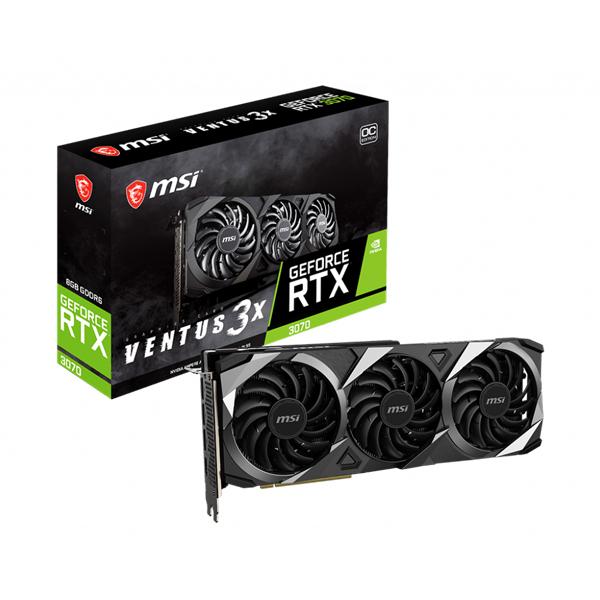

Features of MSI GeForce RTX 3070 Ventus 3X OC 8GB Nvidia Graphic Card
The MSI GeForce RTX 3070 Ventus 3X OC 8GB Nvidia Graphic Card is powered by Ampere—NVIDIA's 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
Core / Memory
- Boost Clock / Memory Speed
- 1755 MHz / 14 Gbps
- 8GB GDDR6

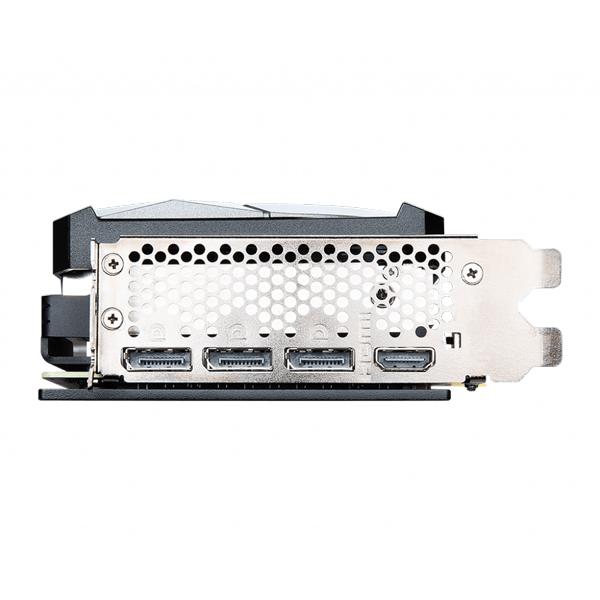

- DisplayPort x 3 (v1.4a) / HDMI 2.1 x 1

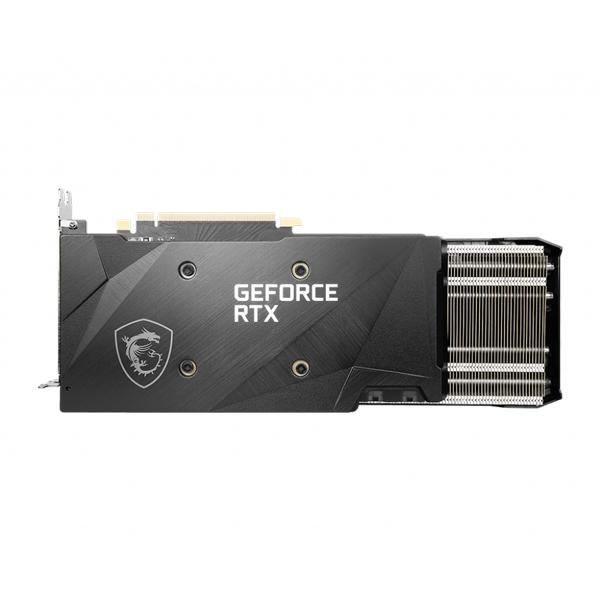

Graphene Backplate
A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.
Core Pipe
Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

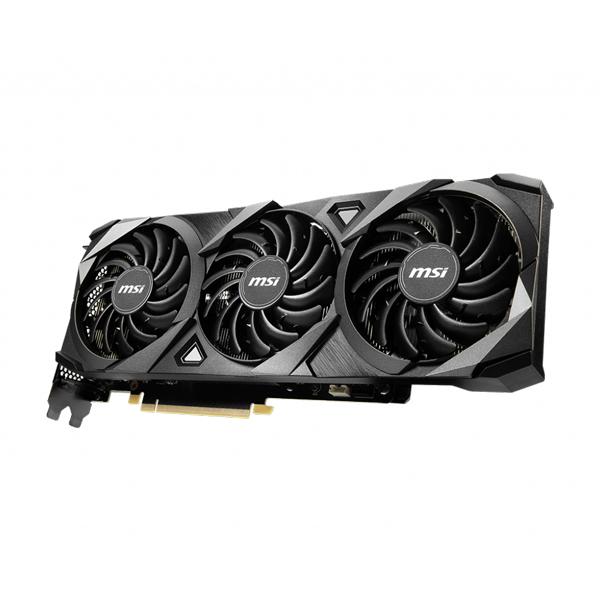

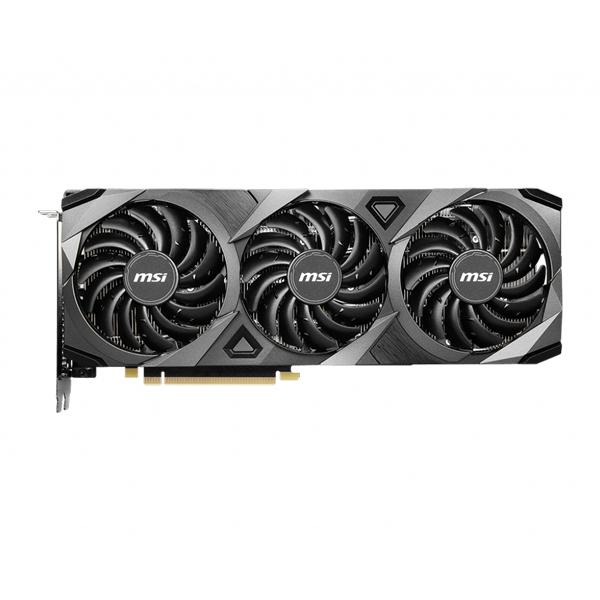

Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
GRAPHENE BACKPLATE
A lightweight composite Graphene backplate reinforces the length of the graphics card while providing passive thermal conduction properties.
Dragon Center
MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications of MSI GeForce RTX 3070 Ventus 3X OC 8GB Nvidia Graphic Card
| Model Name |
GeForce RTX™ 3070 VENTUS 3X OC |
| Graphics Processing Unit |
NVIDIA® GeForce RTX™ 3070 |
| Interface |
PCI Express® Gen 4 |
| Cores |
5888 Units |
| Core Clocks |
1755 MHz |
| Memory Speed |
14 Gbps |
| Memory |
8GB GDDR6 |
| Memory Bus |
256-bit |
| Output |
DisplayPort x 3 (v1.4a) / HDMI 2.1 x 1 |
| HDCP Support |
Y |
| Power Consumption |
220 W |
| Power Connectors |
8-pin x 2 |
| Recommended PSU |
650 W |
| Card Dimension (MM) |
305 x 121 x 52 mm |
| Weight (Card / Package) |
991.6g / 1586.6g |
| DirectX Version Support |
12 API |
| OpenGl Version Support |
4.6 |
| Maximum Displays |
4 |
| VR Ready |
Y |
| G Sync® Technology |
Y |
| Adaptive Vertical Sync |
Y |
| Digital Maximum Resolution |
7680 x 4320 |
| Warranty |
3 Years |
| Note* |
Price, feature and specifications are subject to change without notice. |
