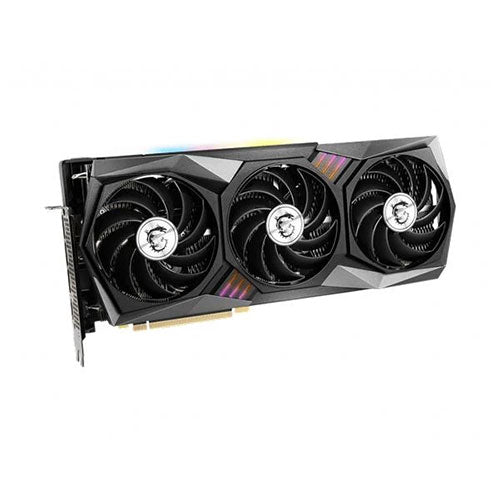

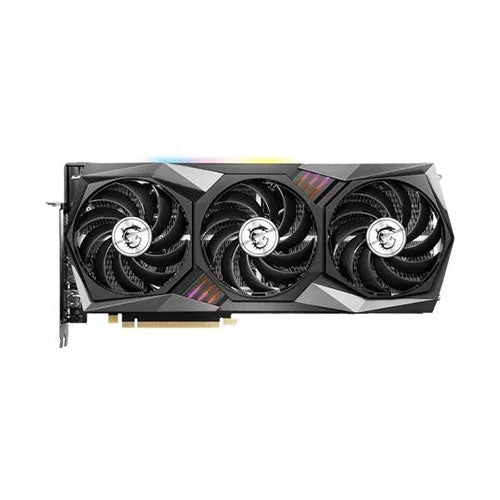

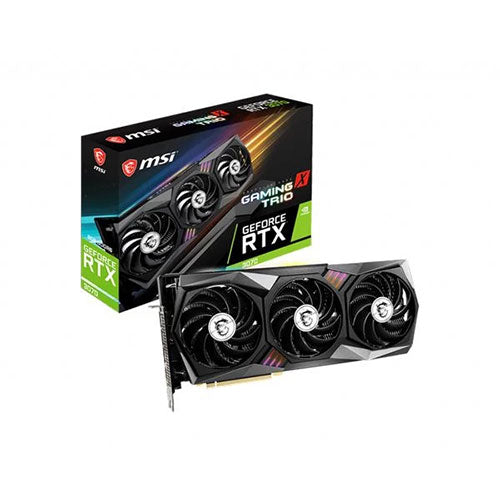

Features of MSI GeForce RTX 3070 Ti Gaming X Trio 8GB Nvidia Graphic Card
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
BEND THE RULES, NOT THE CARD

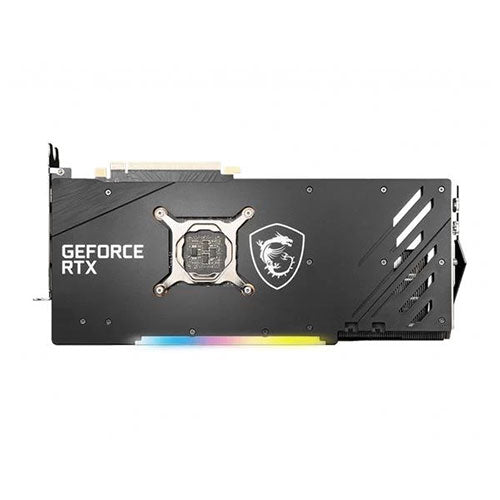

Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
The MSI GeForce RTX 3070 Ti Gaming X Trio 8GB Nvidia Graphic Card is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory, it gives you the power you need to rip through the most demanding games.
Boost Clock / Memory Speed
- 1830 MHz / 19 Gbps
- 8GB GDDR6X
-

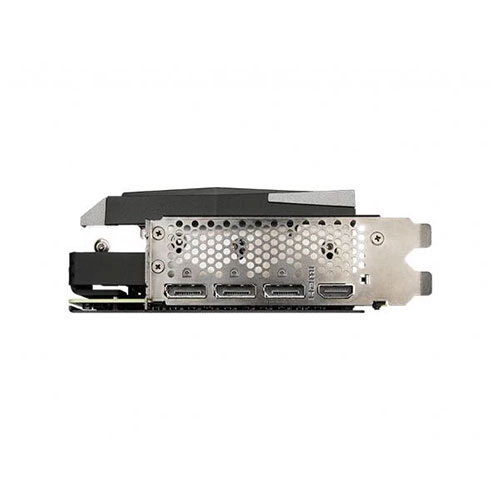

DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications of MSI GeForce RTX 3070 Ti Gaming X Trio 8GB Nvidia Graphic Card
| MODEL NAME |
GeForce RTX™ 3070 Ti GAMING X TRIO 8G |
| GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 3070 Ti |
| INTERFACE |
PCI Express® Gen 4 |
| CORES |
6144 Units |
| CORE CLOCKS |
Boost: 1830 MHz |
| MEMORY SPEED |
19 Gbps |
| MEMORY |
8GB GDDR6X |
| MEMORY BUS |
256-bit |
|
OUTPUT
|
DisplayPort x 3 (v1.4a) |
| HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT |
Y |
| POWER CONSUMPTION |
310 W |
| POWER CONNECTORS |
8-pin x2 |
| RECOMMENDED PSU |
750 W |
| CARD DIMENSION (MM) |
323 x 140 x 56 mm |
| WEIGHT (CARD / PACKAGE) |
1515 g / 2343 g |
| DIRECTX VERSION SUPPORT |
12 API |
| OPENGL VERSION SUPPORT |
4.6 |
| MAXIMUM DISPLAYS |
4 |
| VR READY |
Y |
| G-SYNC® TECHNOLOGY |
Y |
| ADAPTIVE VERTICAL SYNC |
Y |
| DIGITAL MAXIMUM RESOLUTION |
7680 x 4320 |
