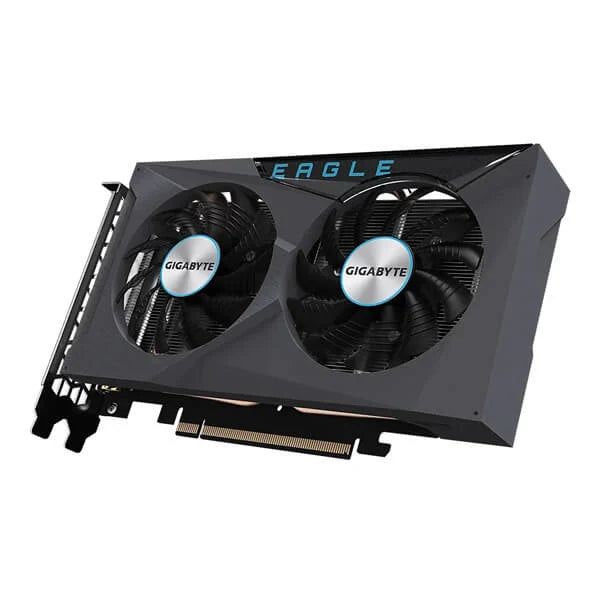

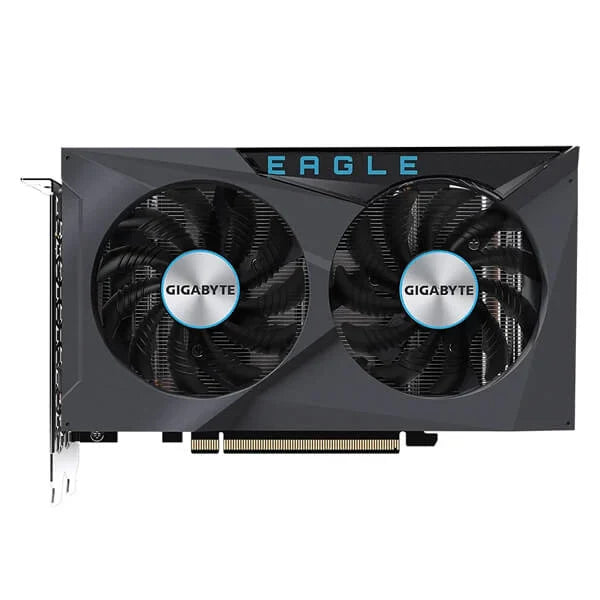

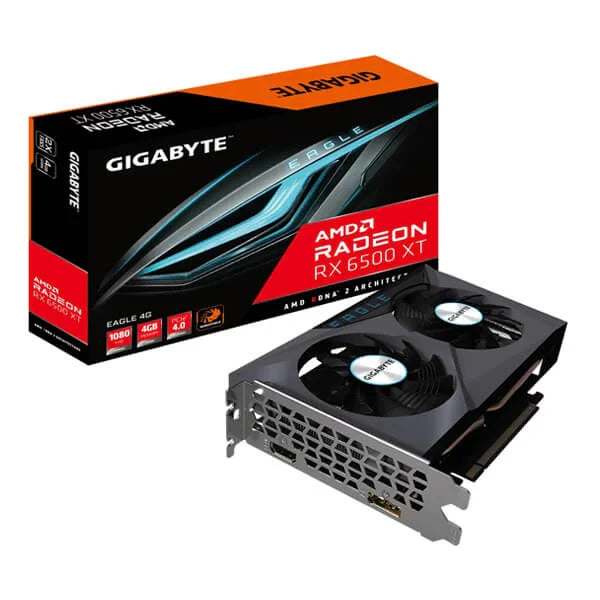

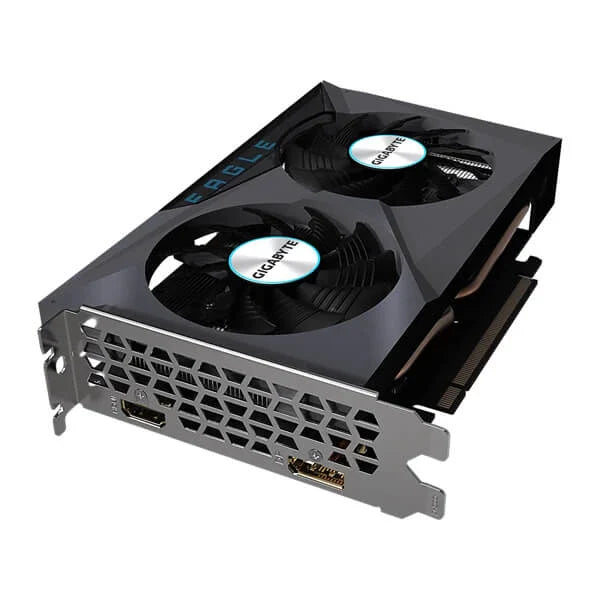

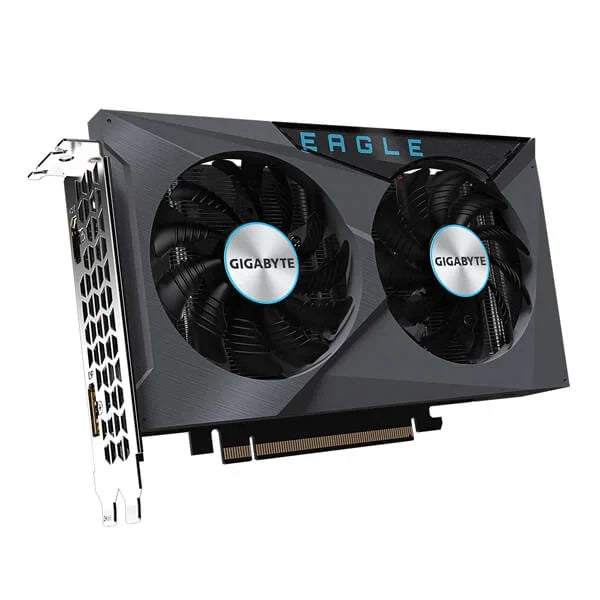

Features of GIGABYTE Radeon RX 6500 XT Eagle 4GB AMD Graphics Card
- Powered by AMD RDNA™ 2 Radeon™ RX 6500 XT
- Integrated with 4GB GDDR6 64-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- Graphene nano lubricant
CORE CLOCK
- Boost Clock : up to 2815 MHz
- Game Clock : up to 2610 MHz
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate
Specifications of GIGABYTE Radeon RX 6500 XT Eagle 4GB AMD Graphics Card
| MODEL |
GV-R65XTEAGLE-4GD |
| CHIPSET |
AMD RADEON |
| GPU |
RX 6500 XT |
| PCI EXPRESS |
4 |
| GPU BOOST CLOCK |
2815 MHz |
| MEMORY CLOCK |
18 Gbps |
| MEMORY SIZE |
4 GB |
| MEMORY INTERFACE |
64-BIT |
| MEMORY TYPE |
GDDR6 |
| DIRECT X SUPPORT |
12 Ultimate |
| OPEN GL |
4.6 |
| PORTS |
1x DisplayPort 1.4a |
|
1x HDMI 2.1 |
| RESOLUTION |
7680x4320 |
| COOLER |
Dual Fan |
| DUAL-LINK DVI SUPPORTED |
Yes |
| SOFTWARE |
Drivers and Software |
| PACKAGE CONTENTS |
Graphics Card, User Manual |
| SLI SUPPORTED |
Yes |
| POWER CONNECTORS |
1 x 6-pin |
| WARRANTY |
3 Years |
| NOTE |
***** Features, Price, Specifications are subject to change without notice.
|
