Features of GIGABYTE Radeon RX 6400 Eagle 4GB AMD Graphics Card
Powered by AMD RDNA™ 2 Radeon™ RX 6400
Integrated with 4GB GDDR6 64-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Graphene nano lubricant

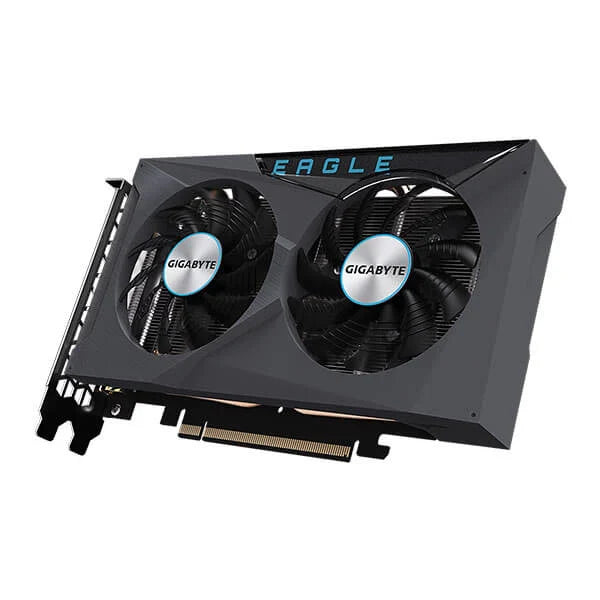

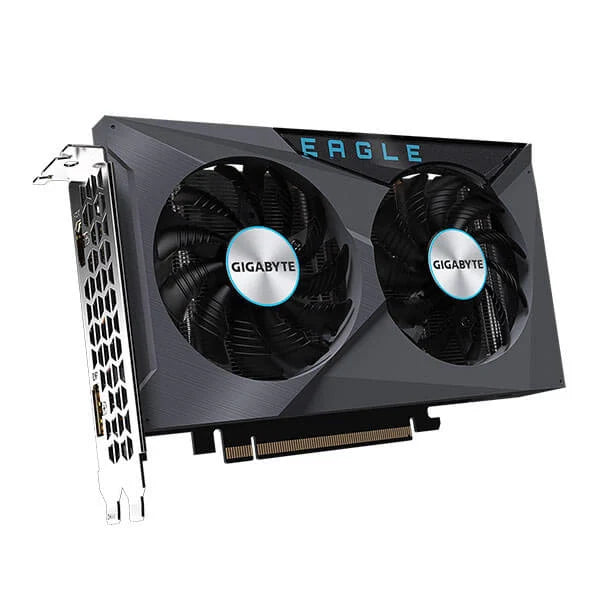

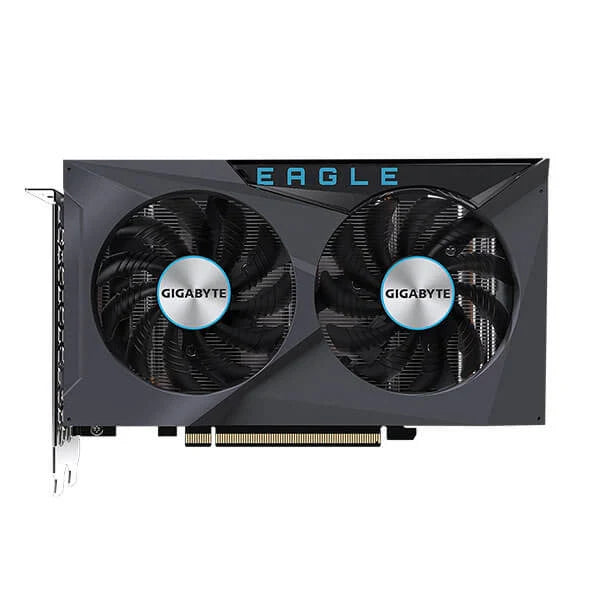

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate.
- Powered by AMD RDNA™ 2 GIGABYTE Radeon RX 6400 Eagle 4GB AMD Graphics Card
- Integrated with 4GB GDDR6 64-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- Graphene nano lubricant
Specifications of GIGABYTE Radeon RX 6400 Eagle 4GB AMD Graphics Card
| Graphics Processing |
Radeon™ RX 6400 |
| Core Clock |
Boost Clock* : up to 2321 MHz
Game Clock* : up to 2039 MHz
|
| Stream Processors |
768 |
| Process Technology |
6nm |
| Memory Clock |
16000 MHz |
| Memory Size |
4GB |
| Memory Type |
GDDR6 |
| Memory Bus |
64 Bit |
| Memory Bandwidth (GB/s) |
128 GB/s |
| Card Bus |
PCI-E 4.0 |
| Digital Max Resolution |
7680×4320 |
| Multi View |
2 |
| Card Size |
L=192 W=117 H=38 mm |
| PCB Form |
ATX |
| Direct X |
12 Ultimate |
| Open GL |
4.6 |
| Recommended PSU |
350W |
| Power Connectors |
N/A |

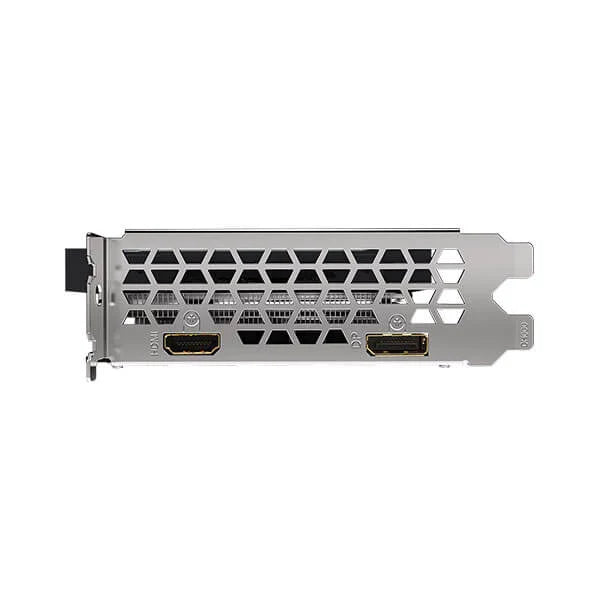

| Output |
DisplayPort 1.4 *1
HDMI 2.1 *1
|
| Accessories |
Quick Guide |
| Warranty |
3 Years |
| Note** |
Prices, Specifications & Features are subject to change without notice
|
