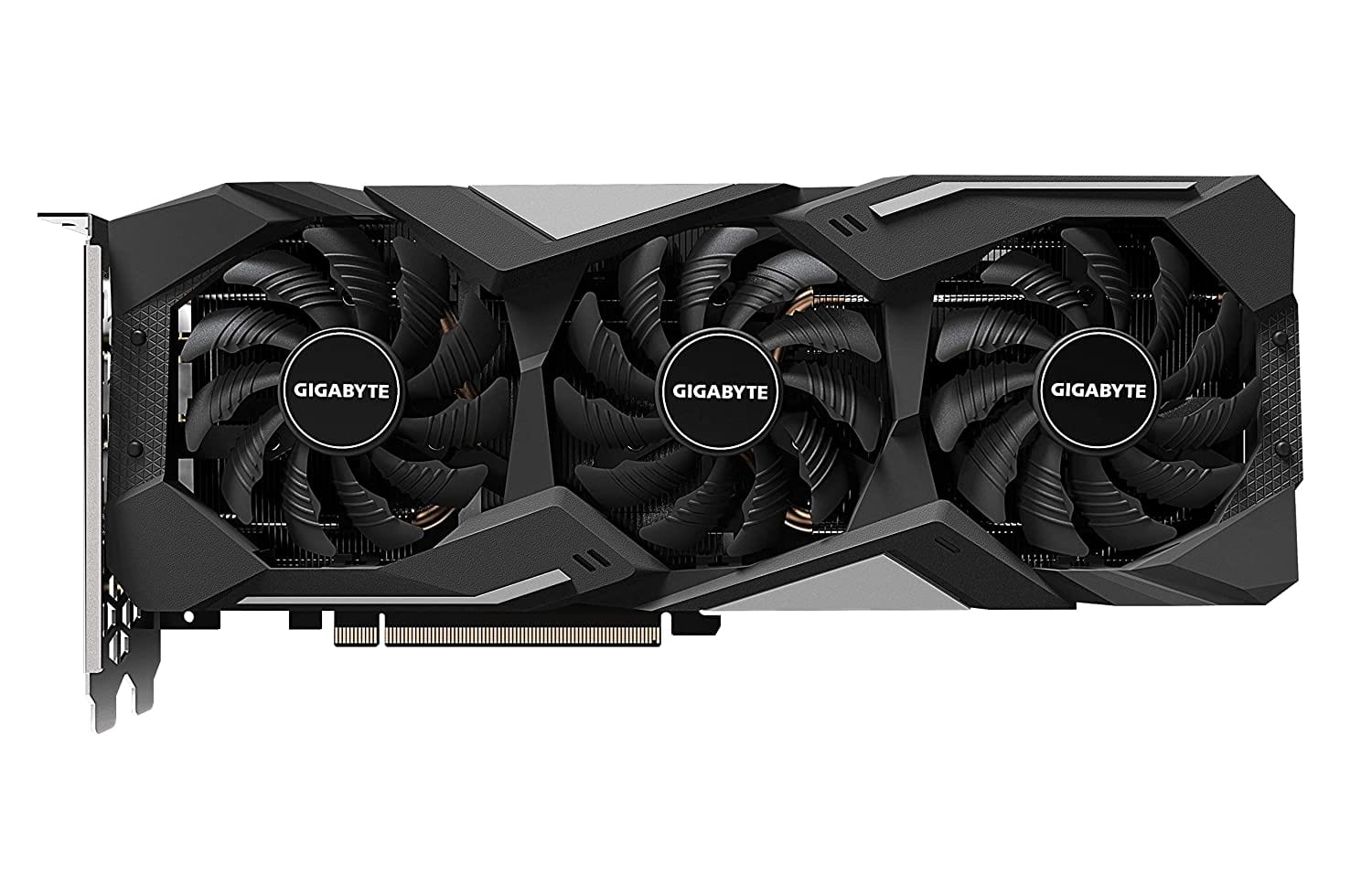

Features of GIGABYTE Radeon RX 5500 XT Gaming OC 8GB AMD Graphic Card

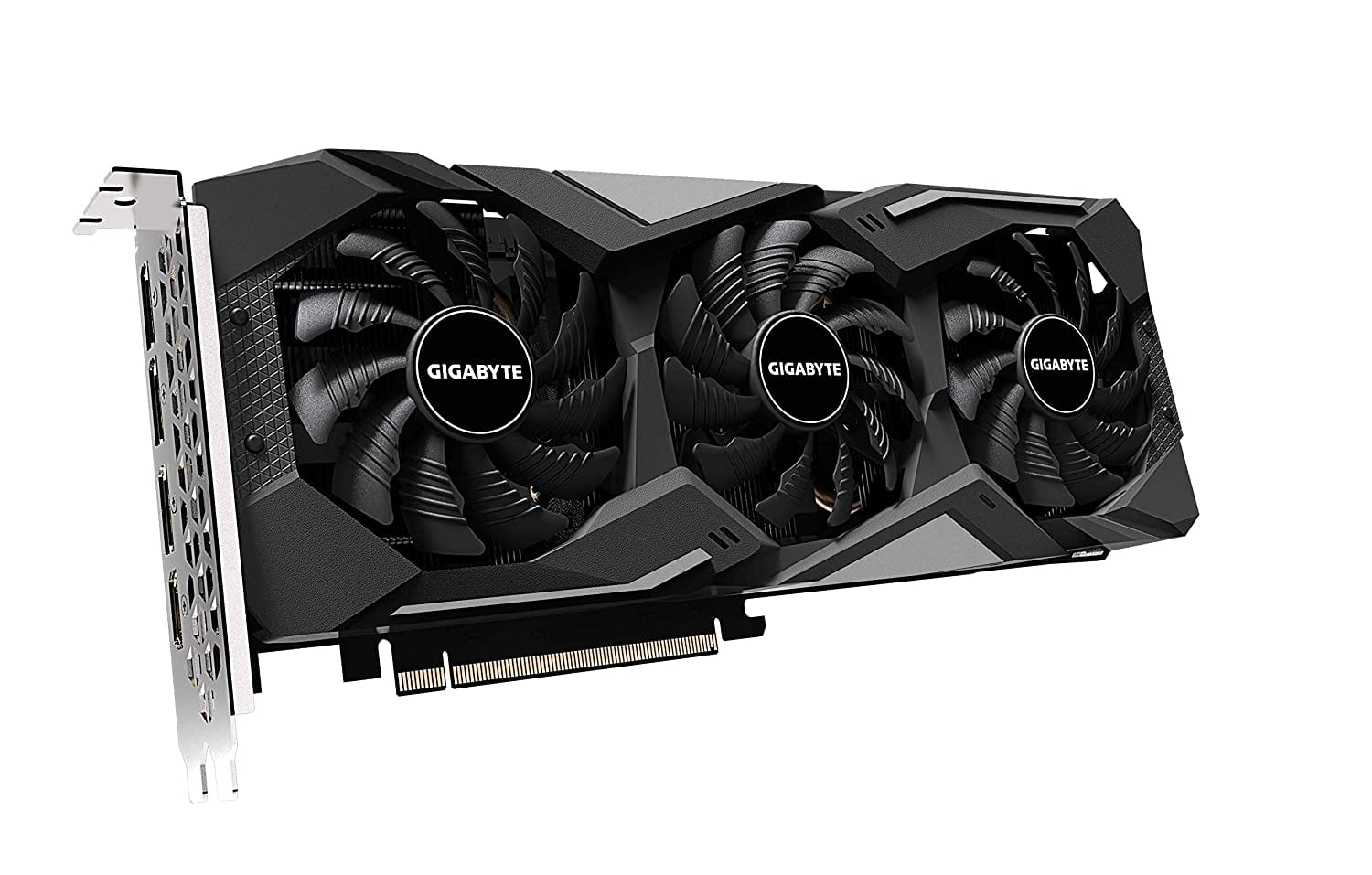

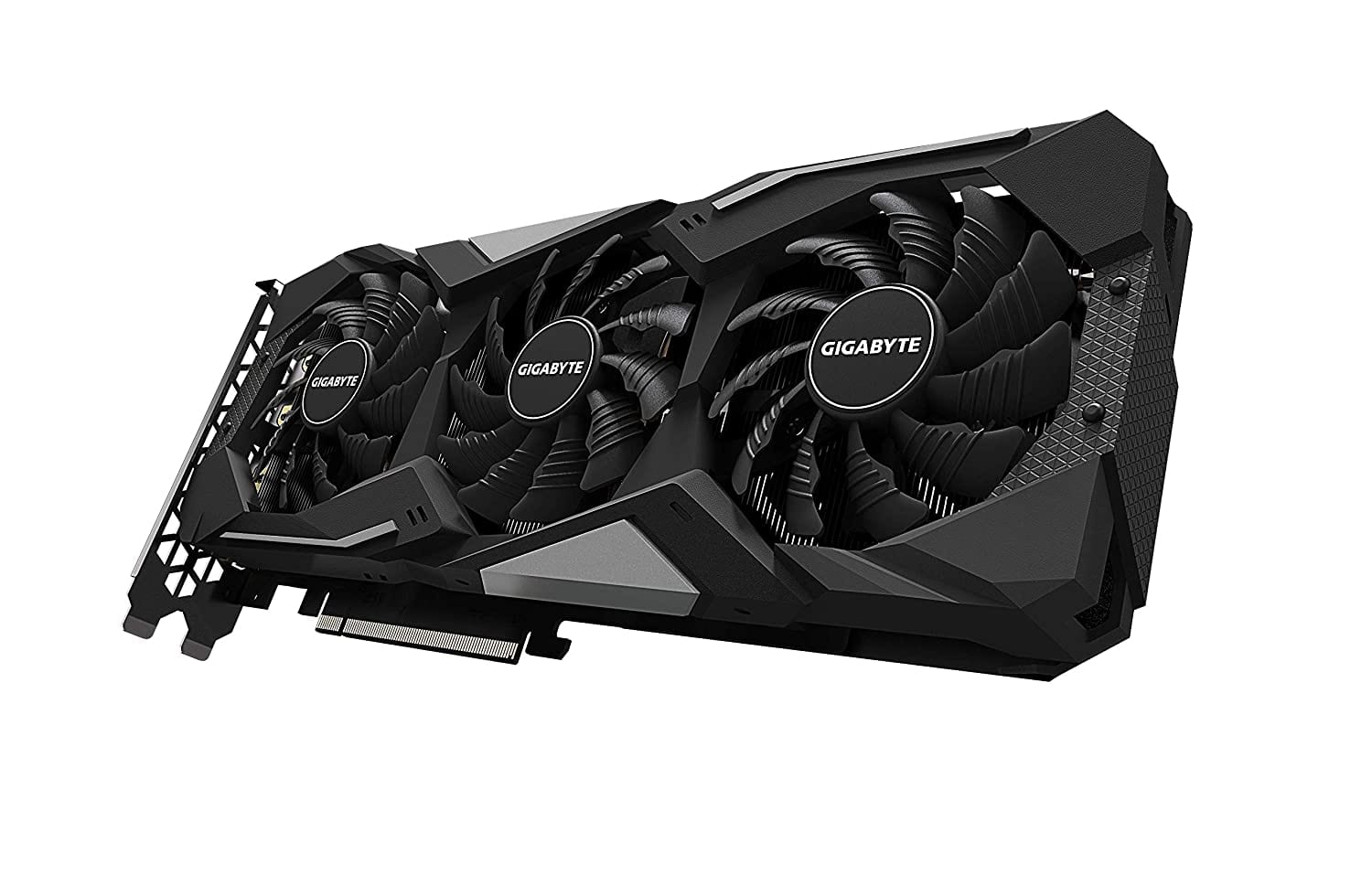

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.
Composite heat-pipe
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
Built for OverClocking with 6+1 power phases
6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
AORUS Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
Get the immersive gaming performance with the GIGABYTE Radeon RX 5500 XT Gaming OC 8GB AMD graphics card for pc
- Powered by AMD Radeon™ RX 5500 XT
- Integrated with 8GB GDDR6 128-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices

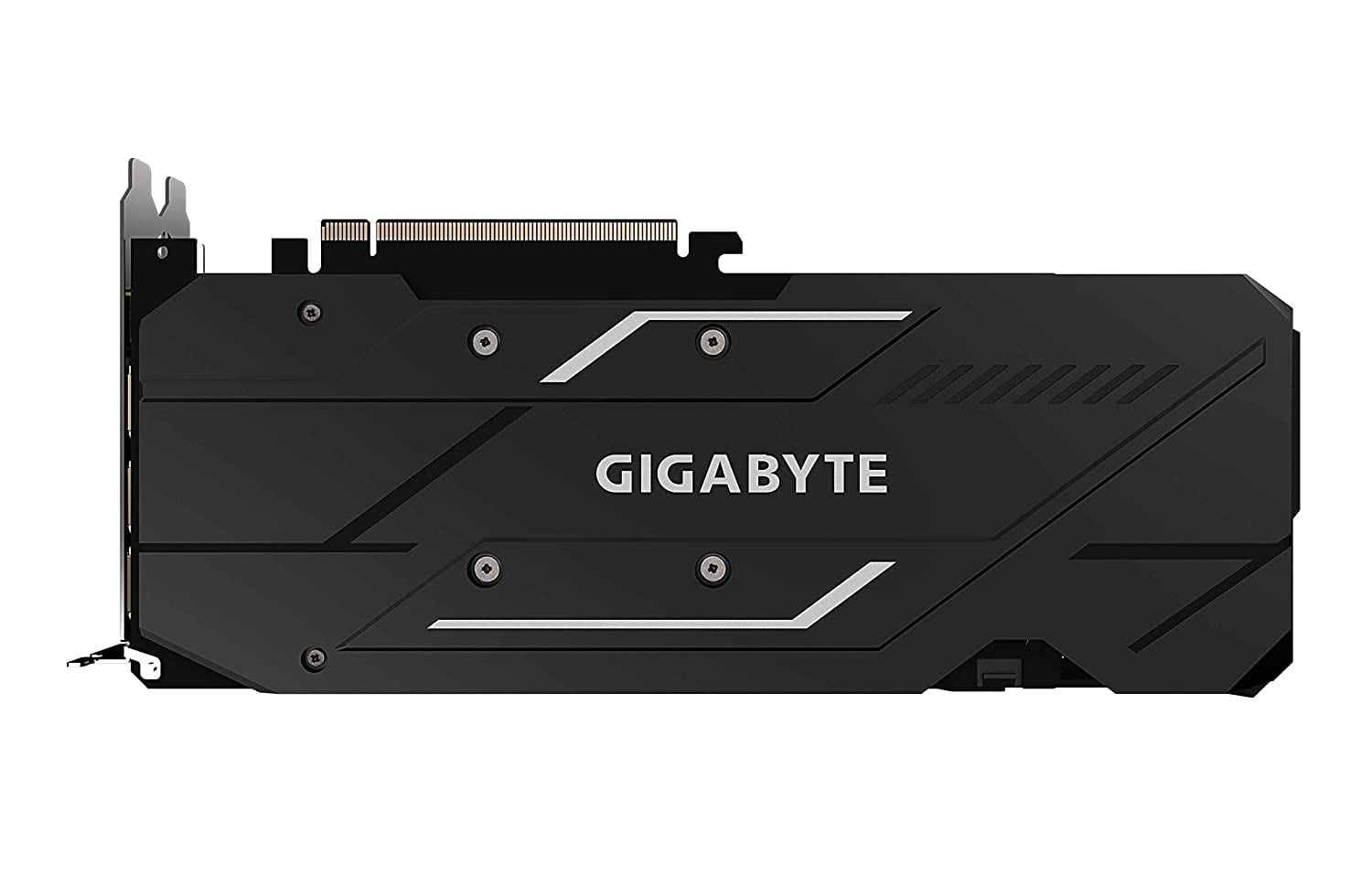

- Protection Back Plate
- PCI-Express 4.0 Support
- Boost Clock : up to 1845 MHz
- Game Clock* : 1737 MHz (Reference card is 1717 MHz)
Specifications of GIGABYTE Radeon RX 5500 XT Gaming OC 8GB AMD Graphic Card
| Graphics Processing |
Radeon™ RX 5500 XT |
| Core Clock |
Boost Clock : up to 1845 MHz
Game Clock* : 1737 MHz (Reference card: 1717 MHz)
|
| Stream Processors |
1408 |
| Process Technology |
7 nm |
| Memory Clock |
14000 MHz |
| Memory Interface |
8GB GDDR6 |
| Memory Bus |
256 bit |
| Memory Bandwidth |
224 GB/s |
| Card Bus |
PCI-E 4.0 |
| Resolution |
7680x4320@60Hz |
| Multi-view |
4 |
| Dimension |
281x115x40 mm |
| PCB Form |
ATX |
| DirectX |
12 |
| OpenGL |
4.6 |
| Recommended PSU |
450 W |
| Power Connectors |
8 Pin*1 |

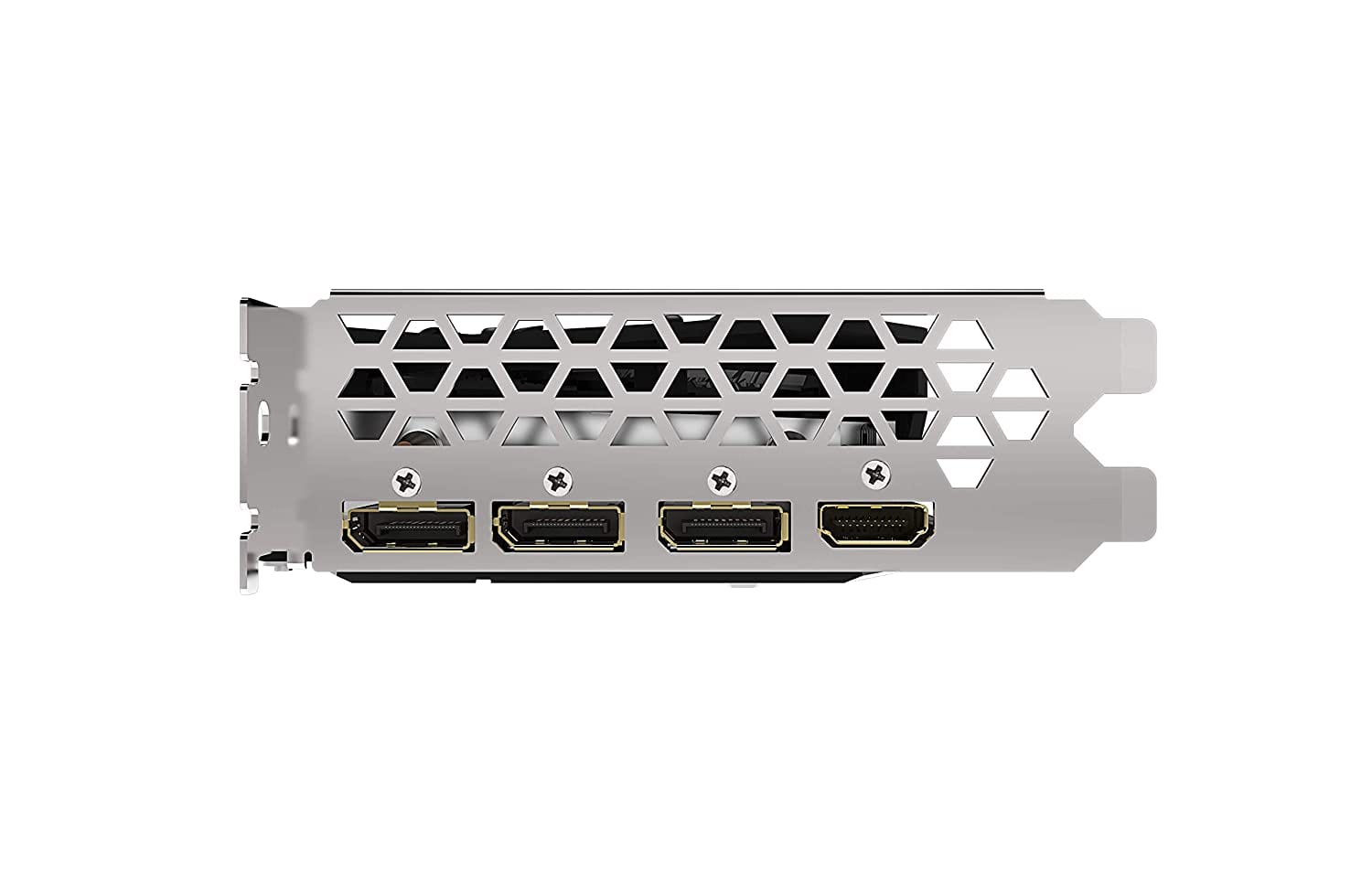

| Output |
DisplayPort 1.4 *3
HDMI 2.0b *1
|
| SLI Support |
N/A |
| Accessories |
Quick guide |
| Warranty |
3 Years |
| Note |
Price, features and specifications are subject to change without notice. |
