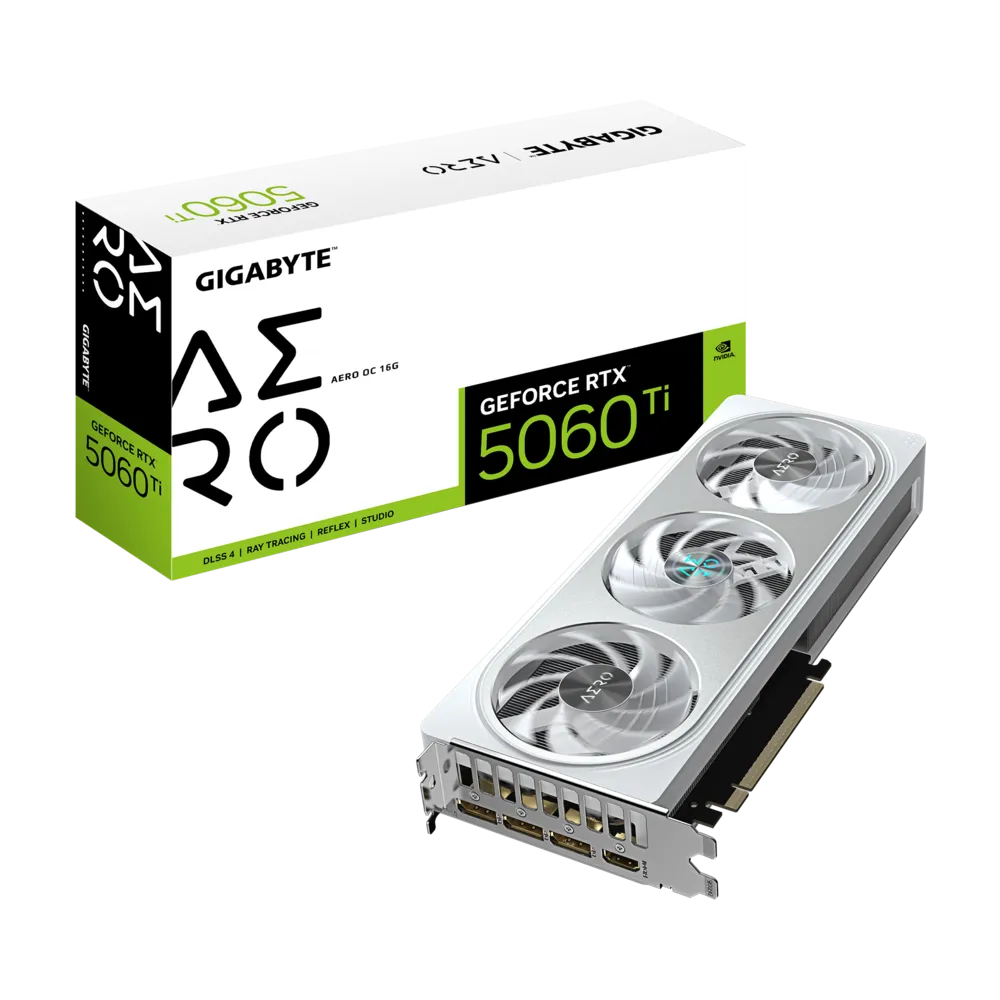

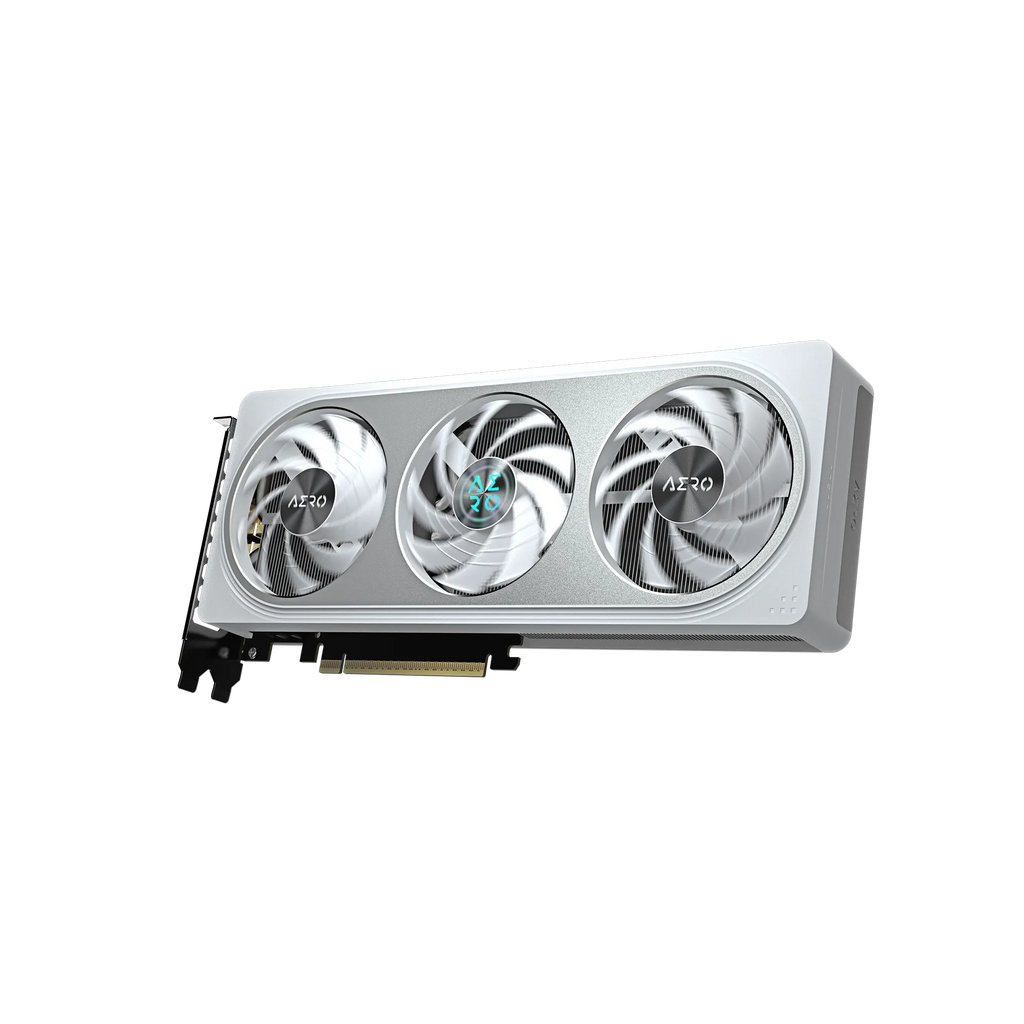

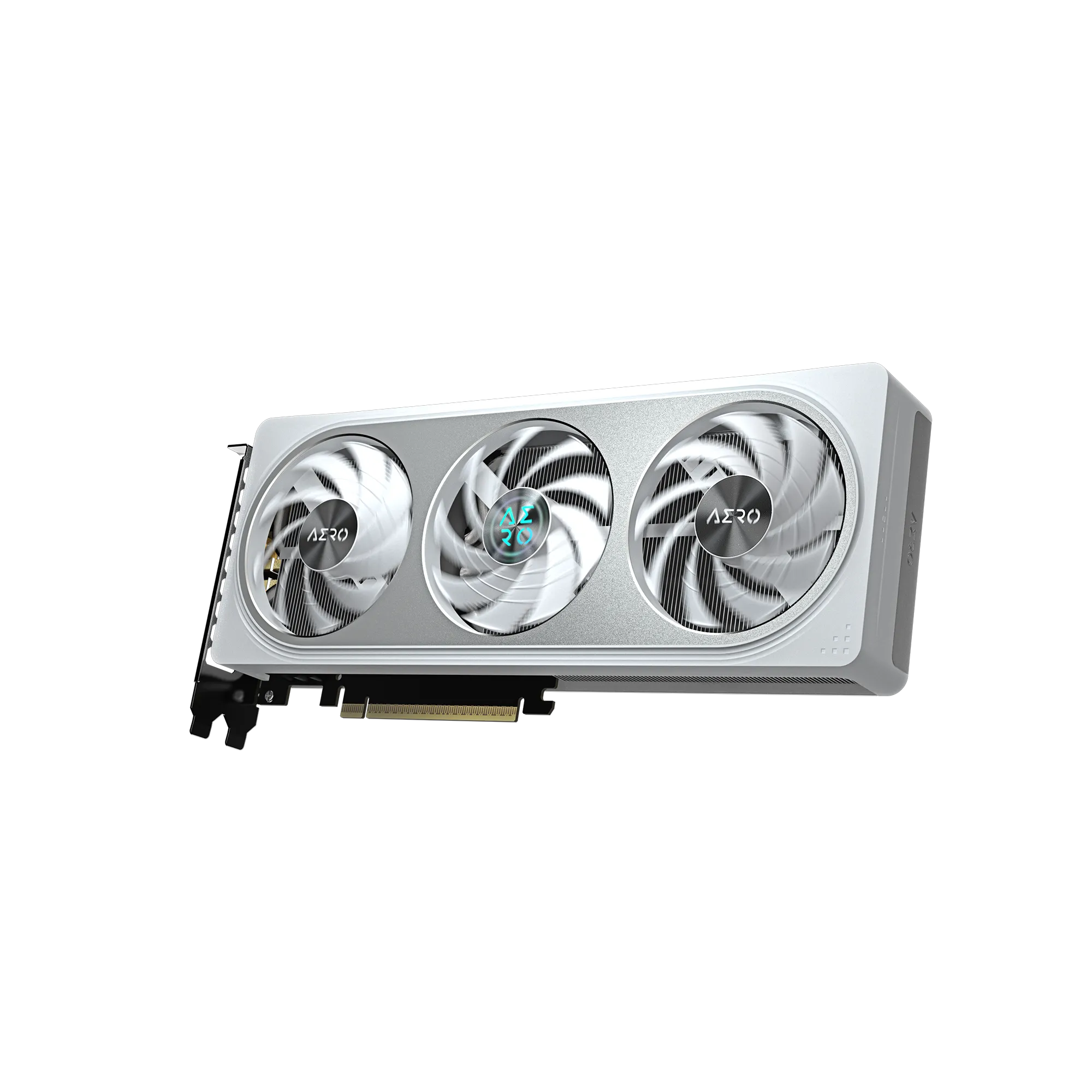

Features of GIGABYTE GeForce RTX 5060 Ti AERO OC 16GB Nvidia Graphic Card
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
Specification of GIGABYTE GeForce RTX 5060 Ti AERO OC 16GB Nvidia Graphic Card
| Product Code |
GV-N506TAERO-OC-16GD |
| Graphics Processing |
GeForce RTX™ 5060 Ti |
| Core Clock |
2647 MHz (Reference card :2572 MHz) |
| Cuda Cores |
TBD |
| Memory Clock |
28 Gbps |
| Memory Size |
16 GB |
| Memory Type |
GDDR7 |
| Memory Bus |
128 Bit |
| Card Bus |
PCI-E 5.0 |
| Digital Max Resolution |
7680×4320 |
| Multi View |
4 |
| Card Size |
L=281 W=117 H=40 mm |
| PCB Form |
ATX |
| DirectX |
DirectX 12 API |
| Open GL |
4.6 |
| Recommended PSU |
650W |
| Power Connectors |
8 Pin*1 |
| Output |
DisplayPort 2.1b *3
HDMI 2.1b *1 |
| Accessories |
Quick guide |
| Warranty |
3 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
