Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

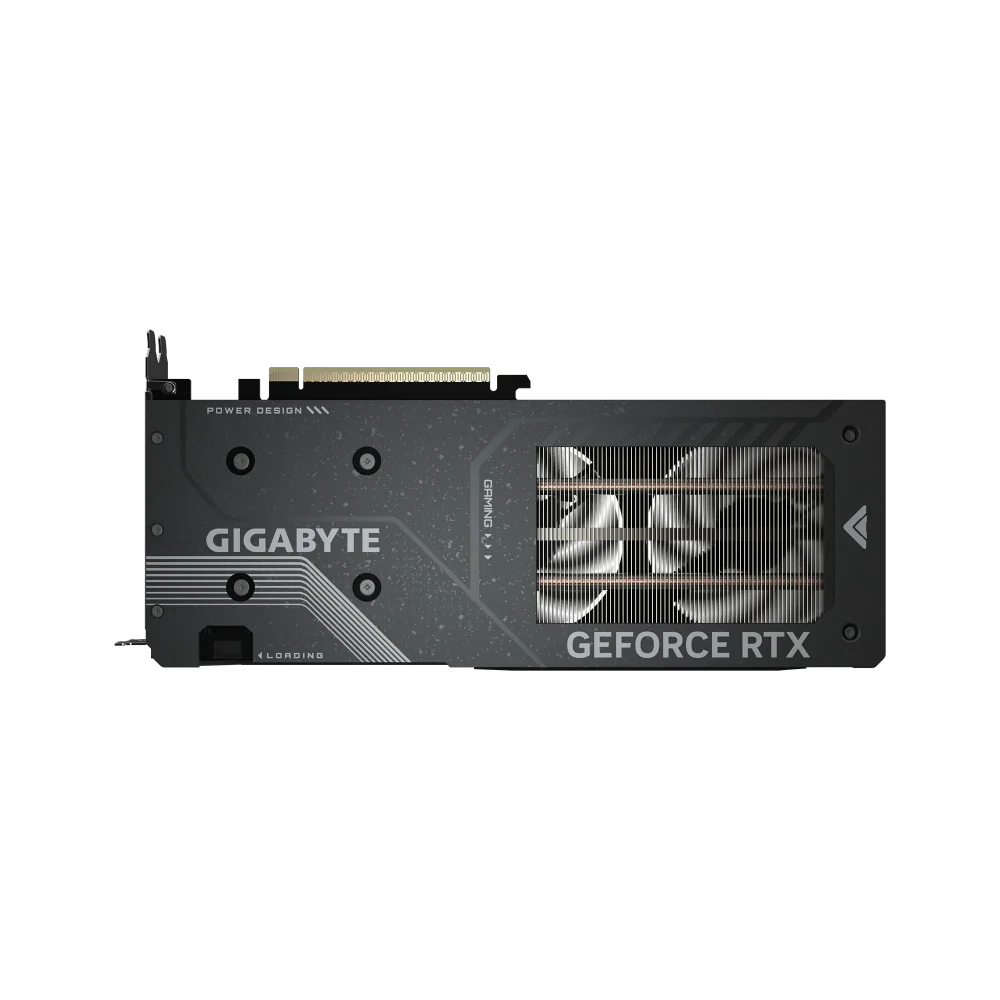

REINFORCED STRUCTURE
The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
ULTRA DURABLE ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

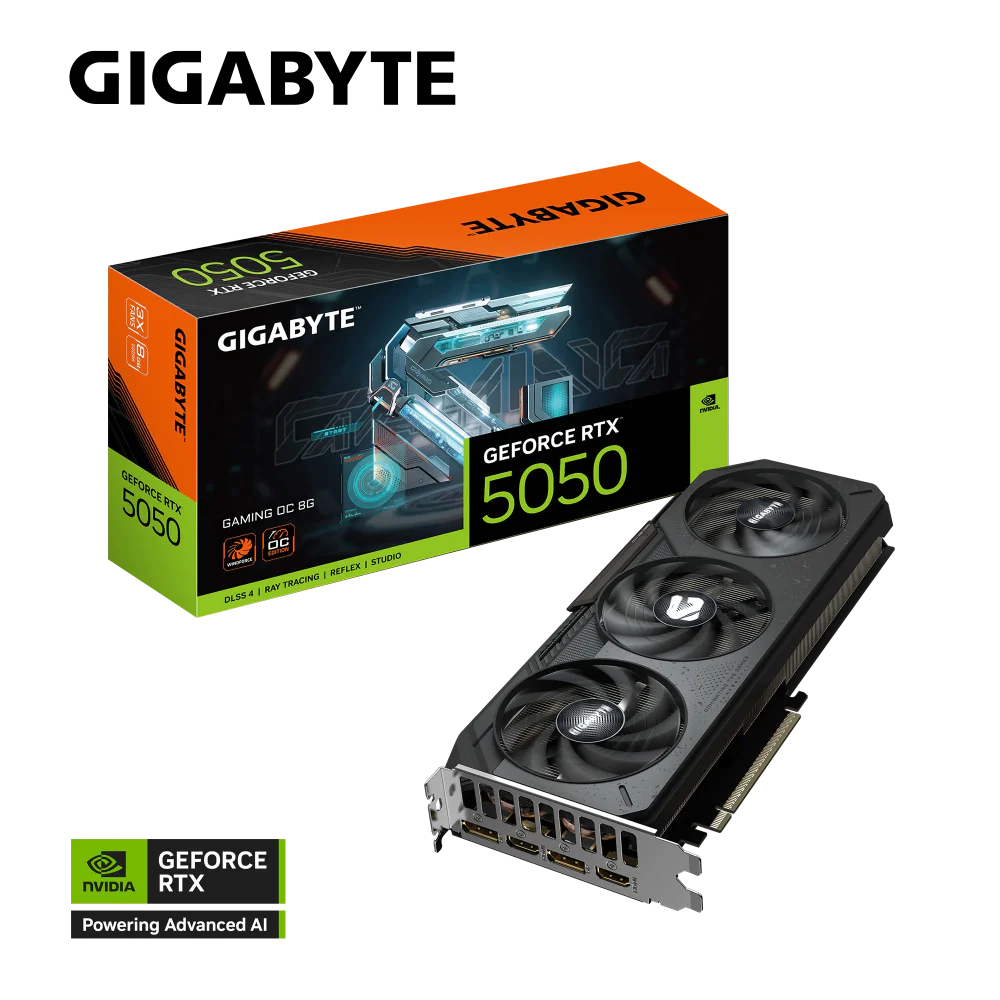

Specification of GIGABYTE GeForce RTX 5050 Gaming OC 8GB NVIDIA Graphic Card
| Product Code | GV-N5050GAMING-OC-8GD |
| Graphics Processing | GeForce RTX™ 5050 |
| Core Clock | 2632 MHz (Reference card : 2572MHz) |
| CUDA® Cores | 2560 |
| Memory Clock | 20 Gbps |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=280 W=117 H=40 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 550W |
| Power Connectors | 8 Pin*1 |
| Output | DisplayPort 2.1b *2 HDMI 2.1b *2 |
