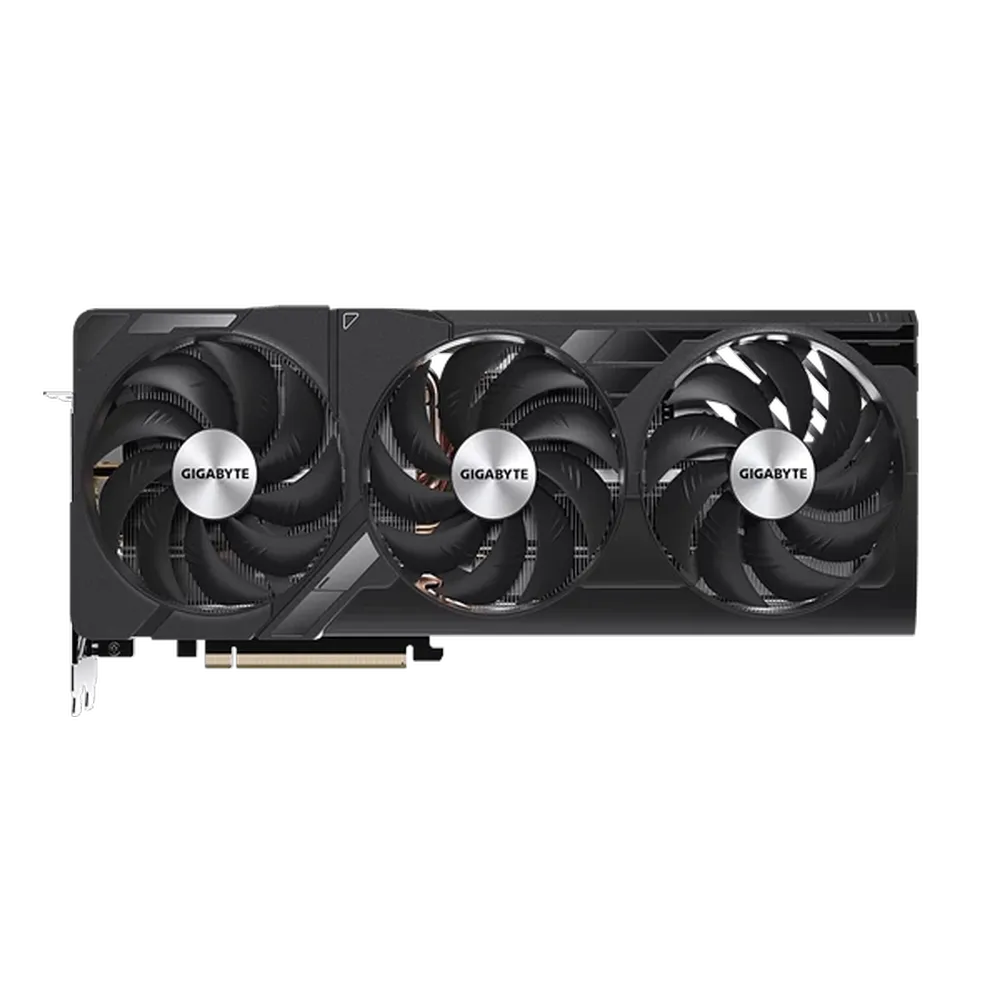

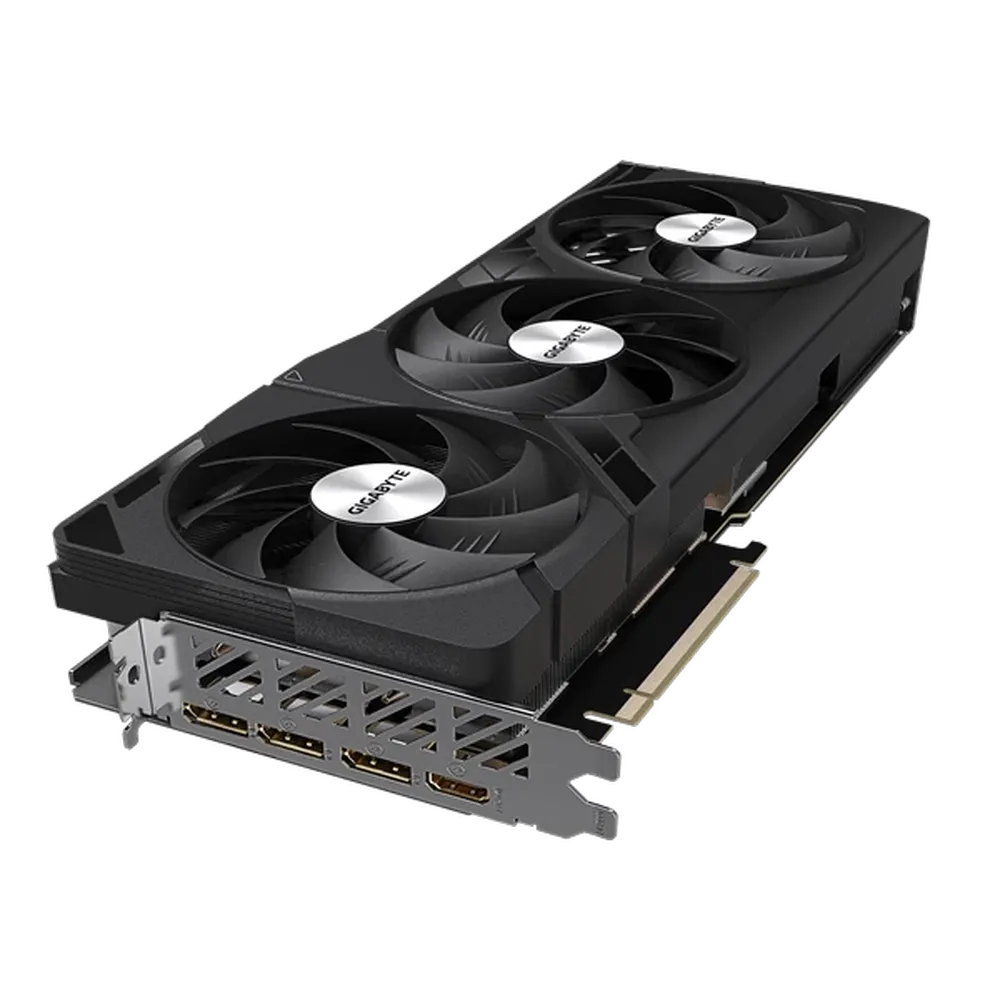

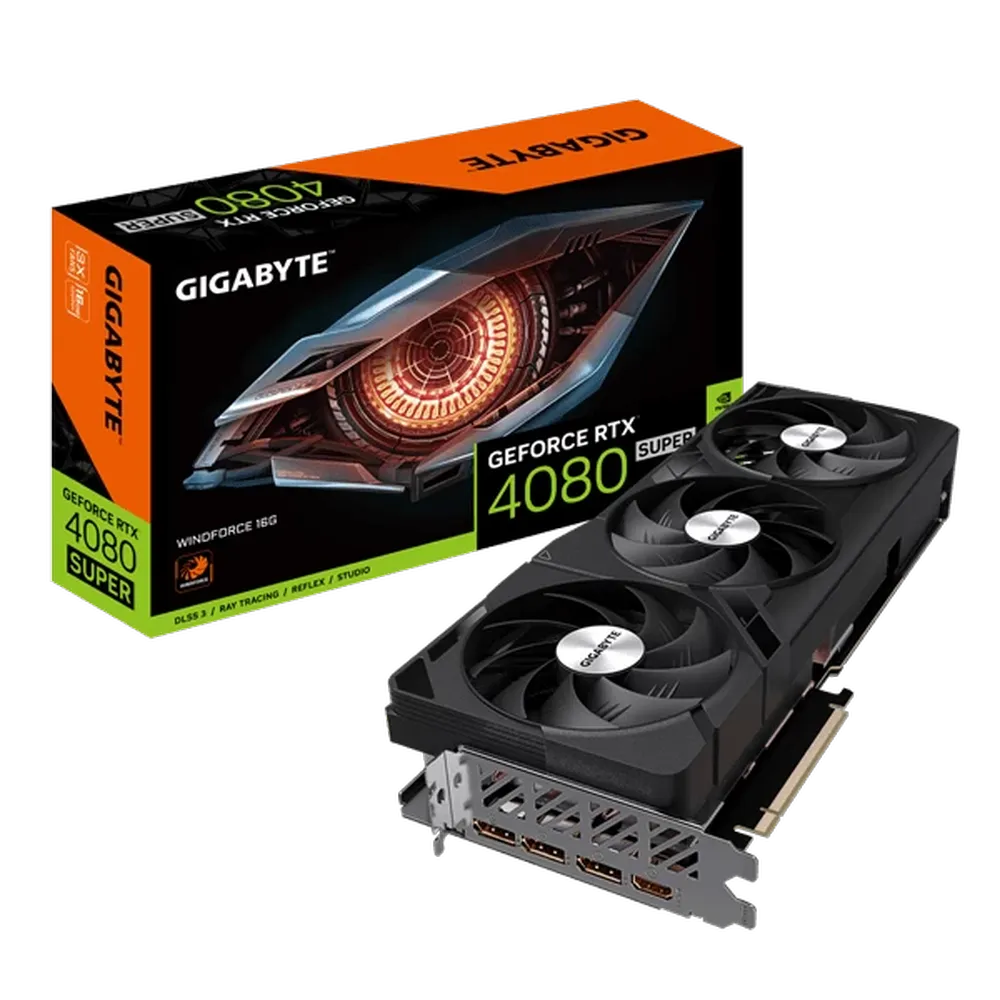

Features of GIGABYTE GeForce RTX 4080 Super Windforce 16GB NVIDIA Graphic Card
Gigabyte RTX 4080 Super Windforce GPU with accelerated ray tracing and AI-powered graphics which is featuring 16GB GDDR6X 256-bit Memory, 2550MHz Core Clock and 23 Gbps Memory Clock. GPU suitable for video editing, 3D rendering and graphic designing
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4080 SUPER
- Integrated with 16GB GDDR6X 256-bit memory interface
- WINDFORCE Cooling System
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low vga card for pc
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Specification of GIGABYTE GeForce RTX 4080 Super Windforce 16GB NVIDIA Graphic Card
| MODEL |
GV-N408SWF3-16GD |
| CHIPSET |
NVIDIA GEFORCE |
| GPU |
RTX 4080 SUPER |
| PCI EXPRESS |
4 |
| GPU BASE CLOCK |
2210 MHz |
| GPU BOOST CLOCK |
2550 MHz |
| MEMORY CLOCK |
23 Gbps |
| MEMORY SIZE |
16 GB |
| MEMORY INTERFACE |
256-BIT |
| MEMORY TYPE |
GDDR6X |
| DIRECT X SUPPORT |
12 Ultimate |
| OPEN GL |
4.6 |
| PORTS |
DisplayPort 1.4a *3HDMI 2.1a *1 |
| RESOLUTION |
7680 x 4320 |
| COOLER |
WINDFORCE |
| SOFTWARE |
Driver And Software |
| PACKAGE CONTENTS |
Graphics Card, User Manual |
| GPU CORE (CUDA CORE) |
10240 |
| POWER CONNECTORS |
1 x 16-pin |
