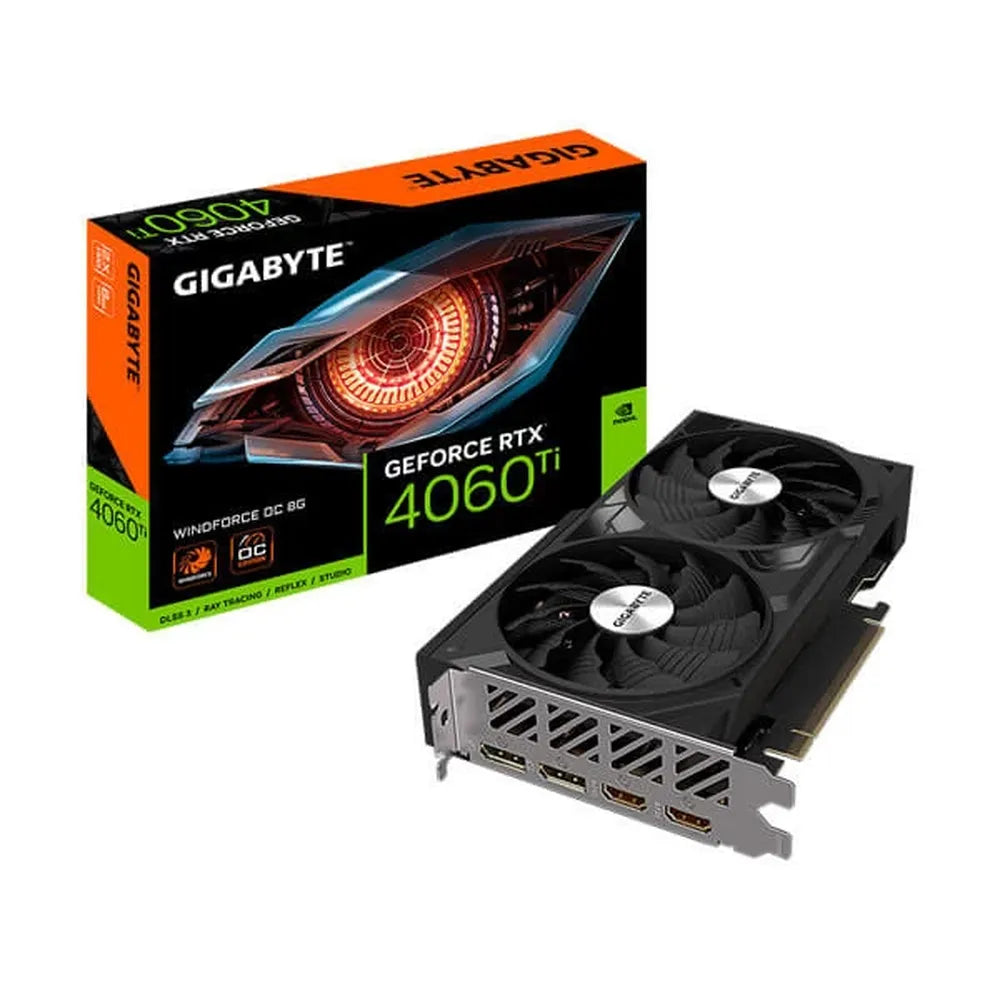

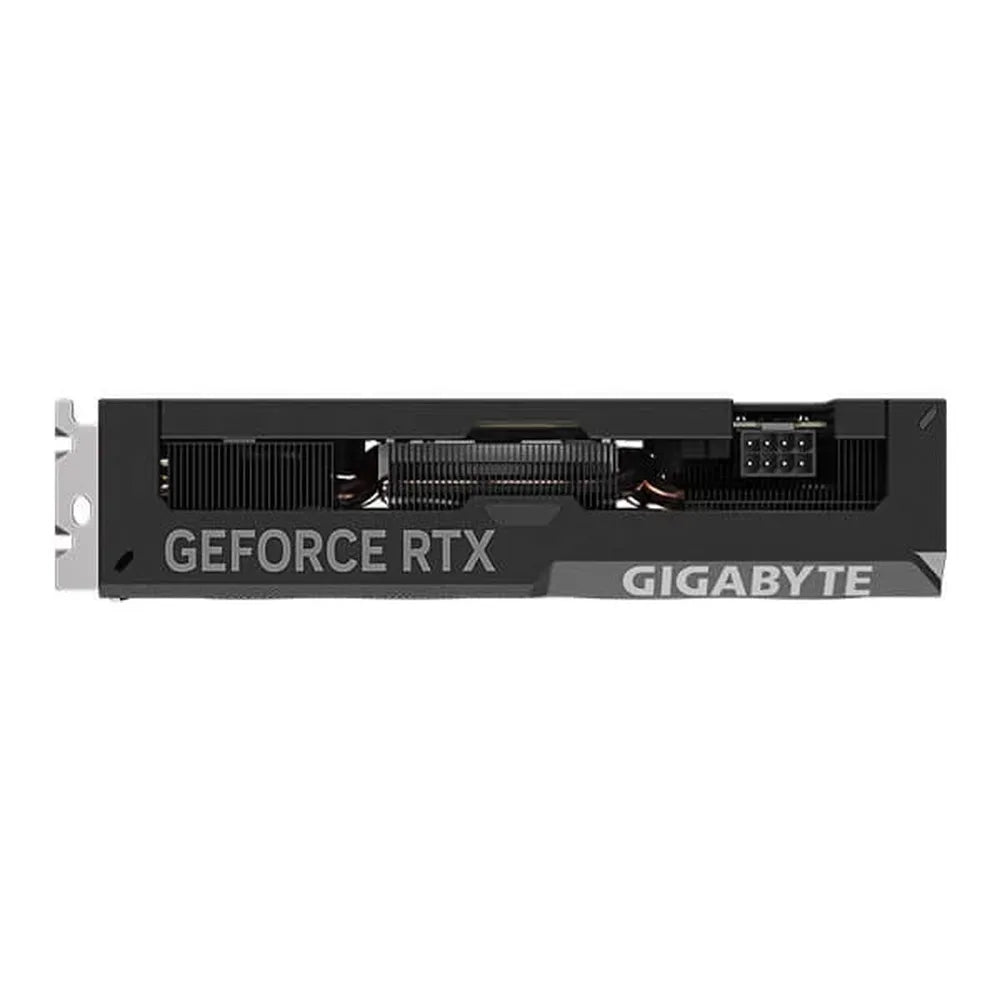

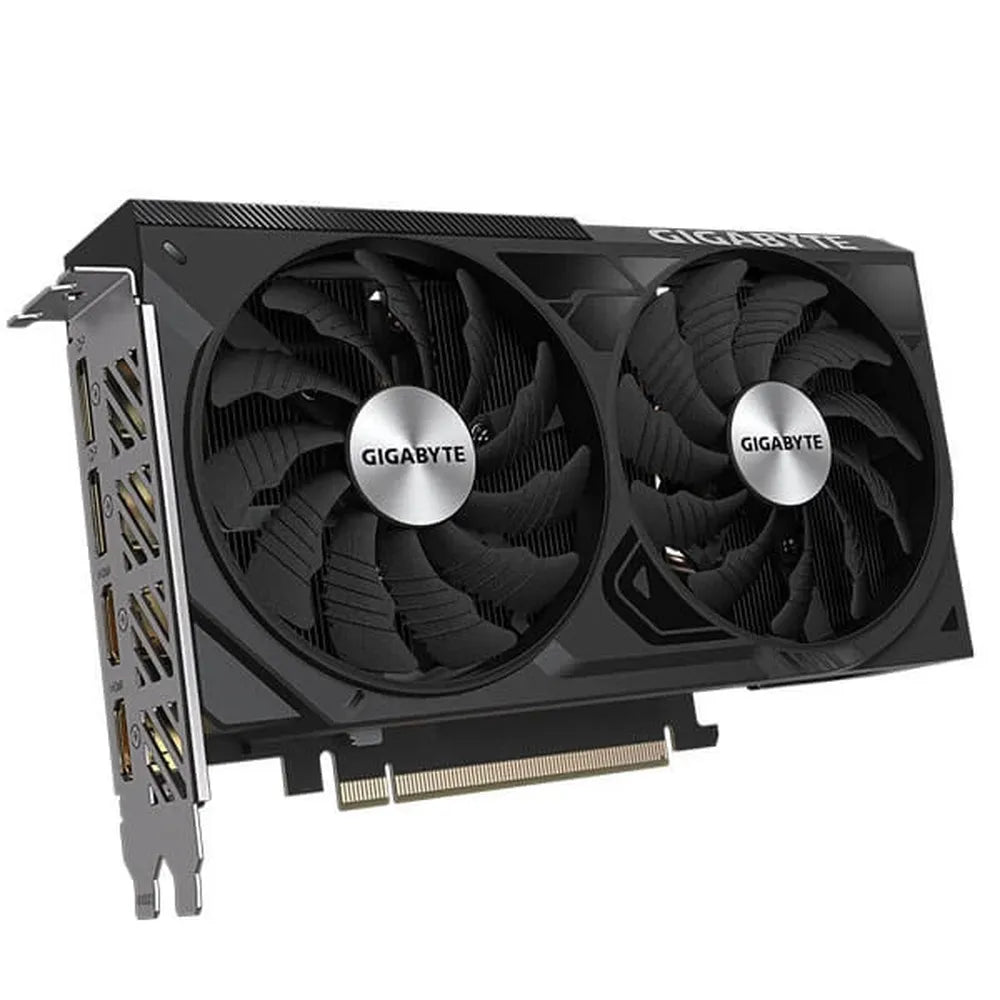

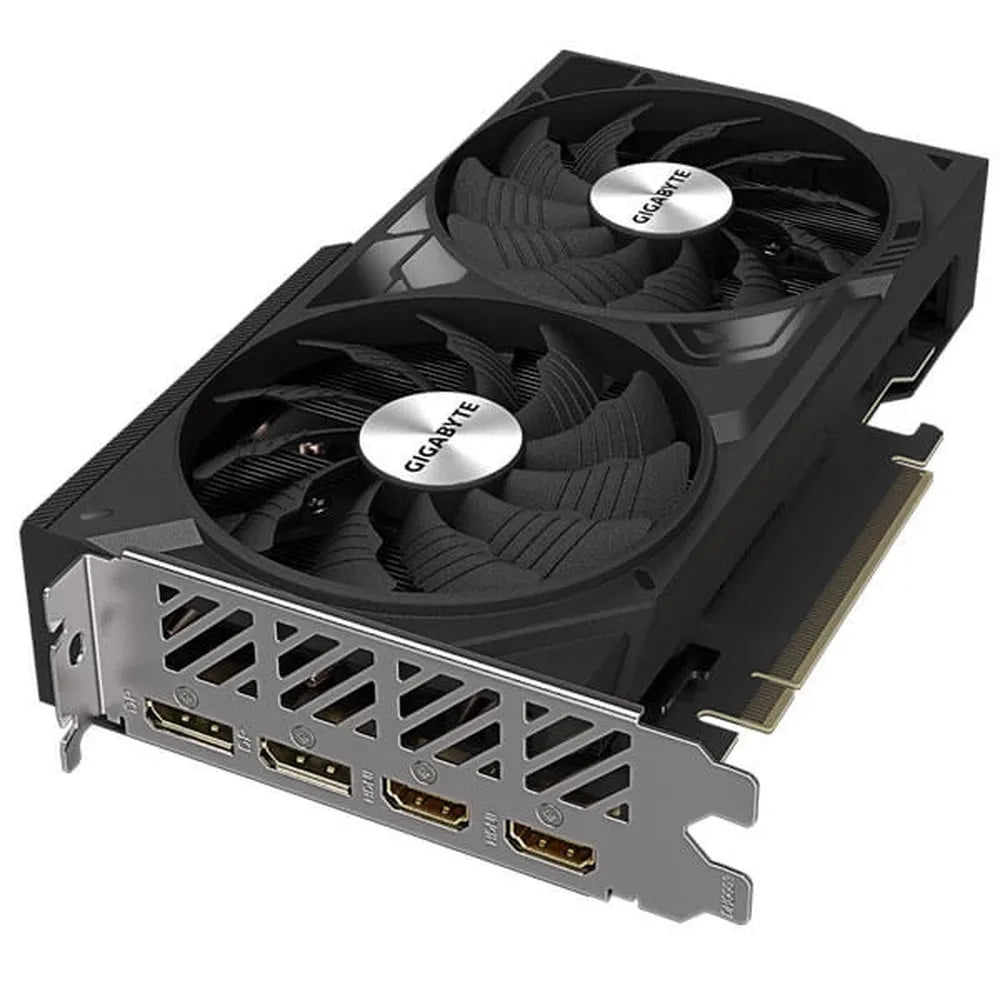

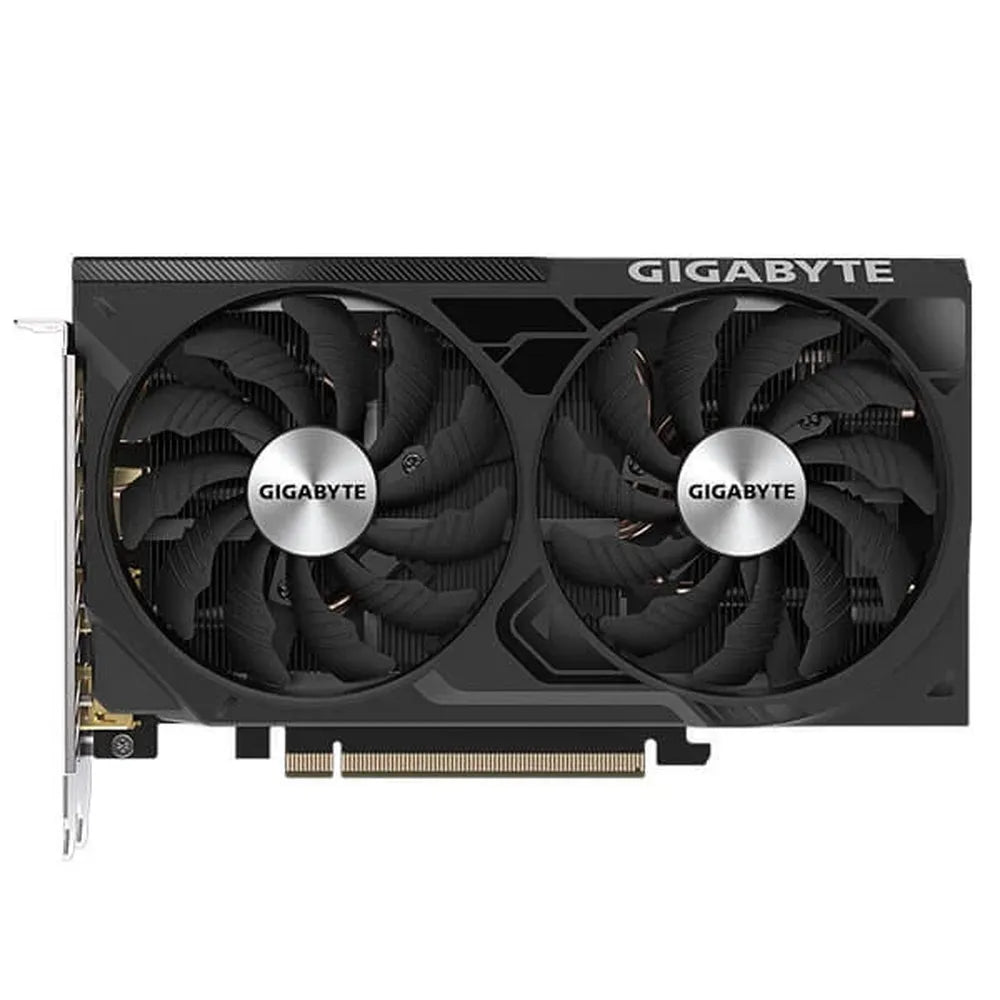

Features of GIGABYTE GeForce RTX 4060 Ti Windforce OC 8GB NVIDIA Graphics Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system

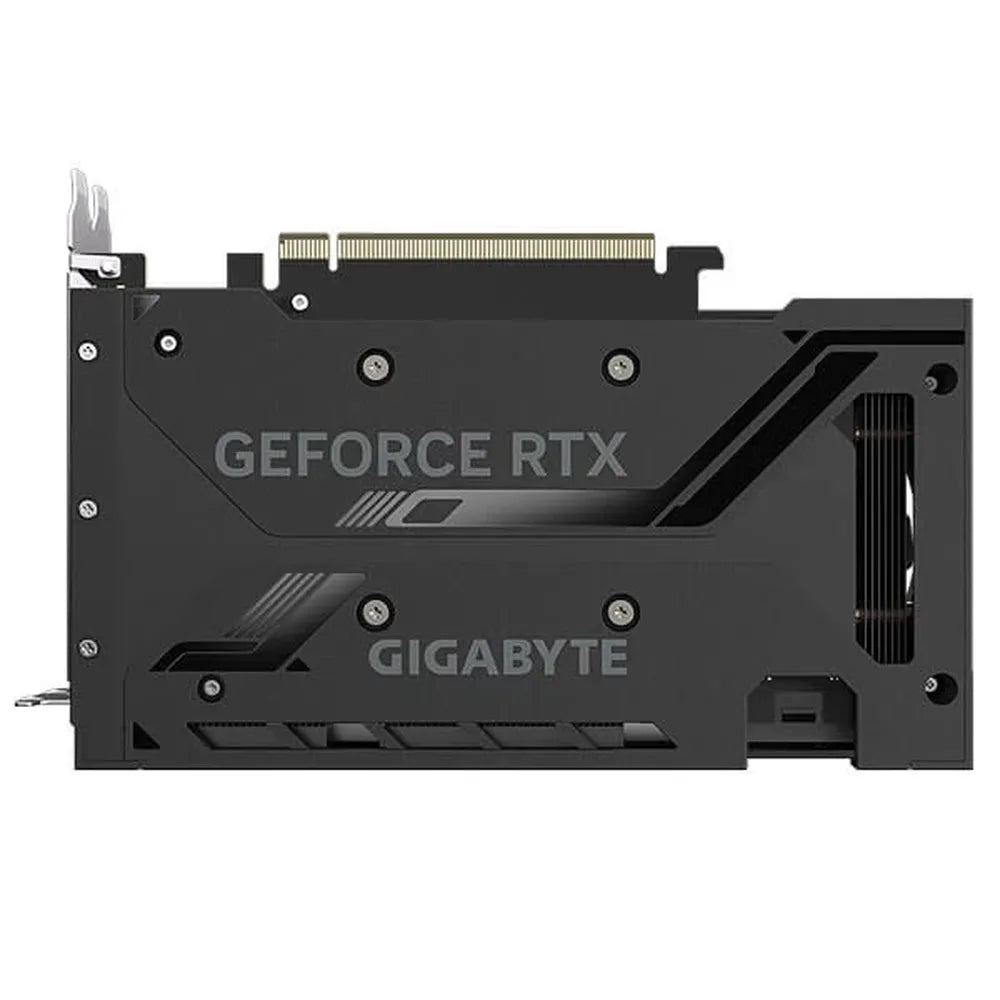

- Protection back plate
CORE CLOCK
2550 MHz (Reference Card: 2535 MHz)
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
Specifications of GIGABYTE GeForce RTX 4060 Ti Windforce OC 8GB NVIDIA Graphics Card
| MODEL |
GV-N406TWF2OC-8GD |
| CHIPSET |
NVIDIA GEFORCE |
| GPU |
RTX 4060 Ti |
| PCI EXPRESS |
4 |
| MEMORY CLOCK |
18 Gbps |
| MEMORY SIZE |
8 GB |
| MEMORY INTERFACE |
128-BIT |
| MEMORY TYPE |
GDDR6 |
| DIRECT X SUPPORT |
12 Ultimate |
| OPEN GL |
4.6 |

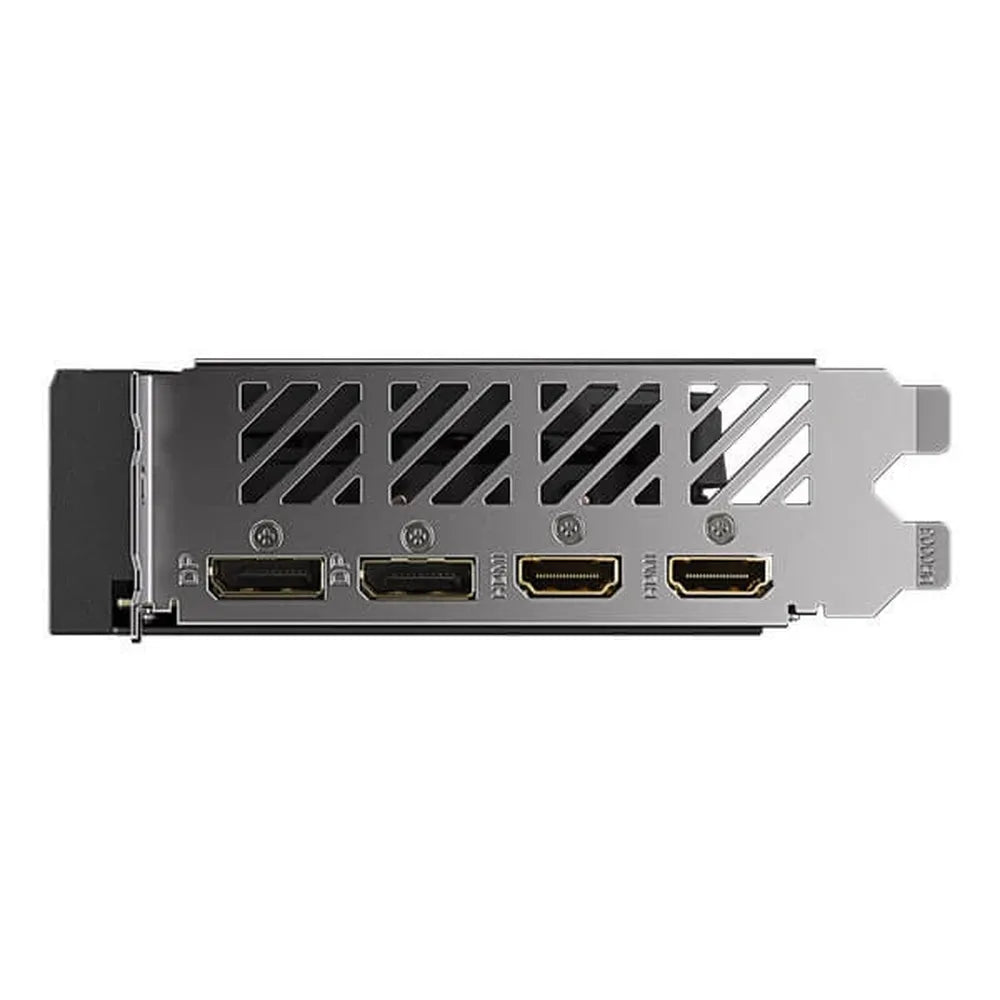

| PORTS |
DisplayPort 1.4a*2 |
|
HDMI 2.1a*2 |
| RESOLUTION |
7680 x 4320 |
| COOLER |
Windforce 2x |
| SOFTWARE |
Driver And Software |
| PACKAGE CONTENT |
SGraphics Card, User Manual |
| GPU CORE |
(CUDA CORE)4352 |
| POWER CONNECTORS |
1 x 8-pin |
| WARRANTY |
3 Years |
| NOTE |
***** Features, Price, Specifications are subject to change without notice. |
