Features of GIGABYTE GeForce RTX 4060 Ti Gaming OC 16GB
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (16GB)
- Integrated with 16GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS

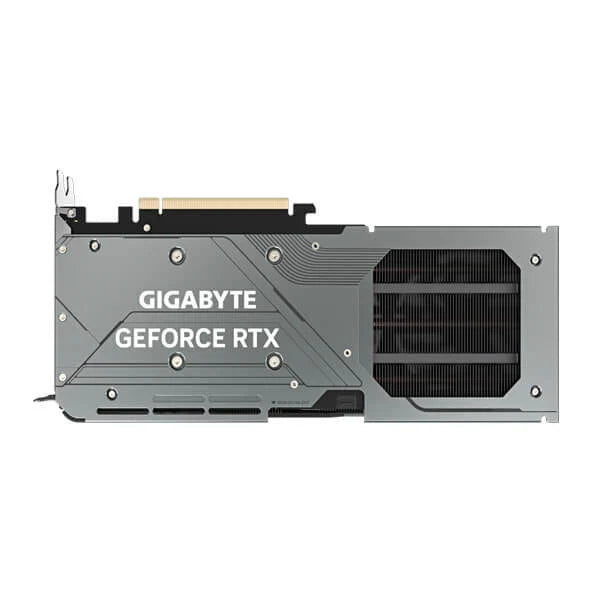

- Protection metal back plate

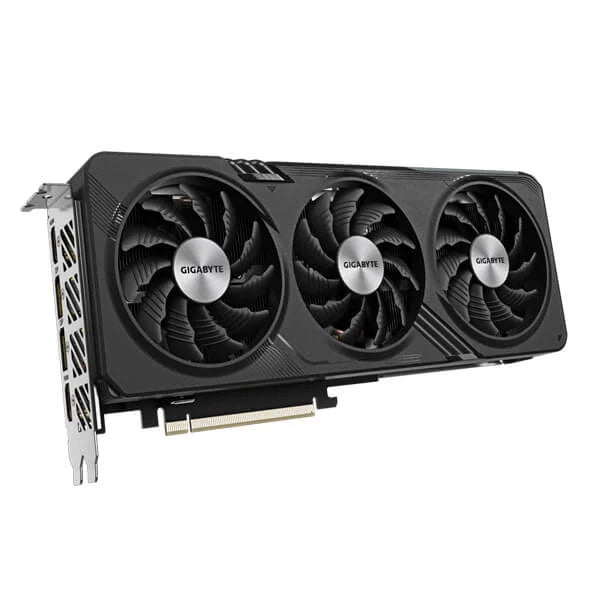

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system of the GIGABYTE GeForce RTX 4060 Ti Gaming OC 16GB Nvidia graphics card for pc features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications of GIGABYTE GeForce RTX 4060 Ti Gaming OC 16GB Nvidia Graphic Card
| MODEL |
GV-N406TGAMING-OC-16GD |
| CHIPSET |
NVIDIA GEFORCE |
| GPU |
RTX 4060 Ti |
| PCI EXPRESS |
4 |
| GPU BOOST CLOCK |
2595 MHz |
| MEMORY CLOCK |
18 Gbps |
| MEMORY SIZE |
16 GB |
| MEMORY INTERFACE |
128-BIT |
| MEMORY TYPE |
GDDR6 |
| DIRECT X SUPPORT |
12 Ultimate |
| OPEN GL |
4.6 |

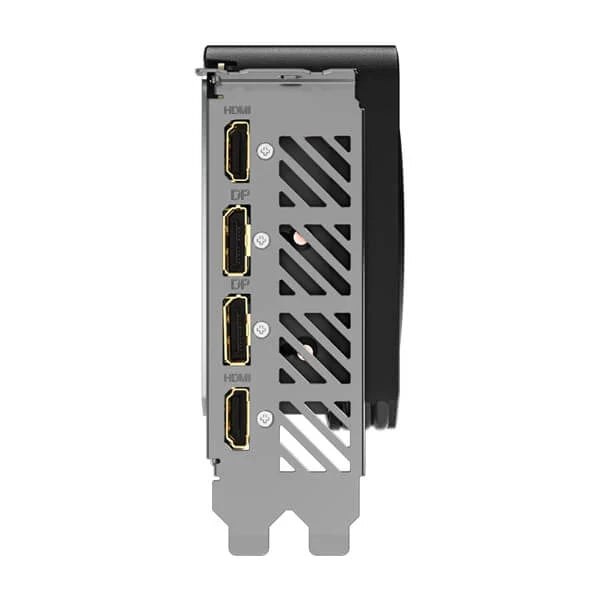

| PORTS |
DisplayPort 1.4a*2 |
|
HDMI 2.1a*2 |
| RESOLUTION |
7680 x 4320 |
| COOLER |
Windforce 3x |
| SOFTWARE |
Driver And Software |
| PACKAGE CONTENTS |
Graphics Card, User Manual |
| GPU CORE (CUDA CORE) |
4352 |
| POWER CONNECTORS |
1 x 8-pin |
| WARRANTY |
3 Years |
| NOTE** |
*** Features, Price, Specifications are subject to change without notice.
|
