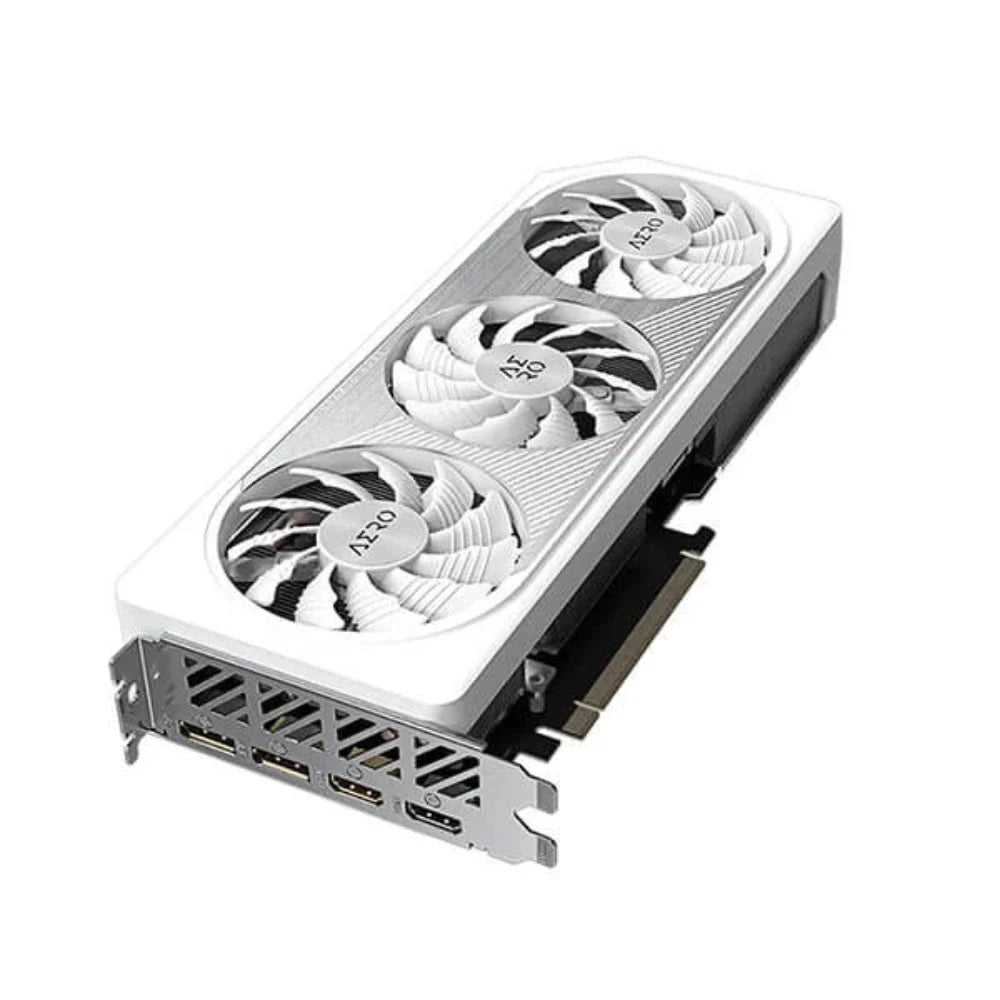

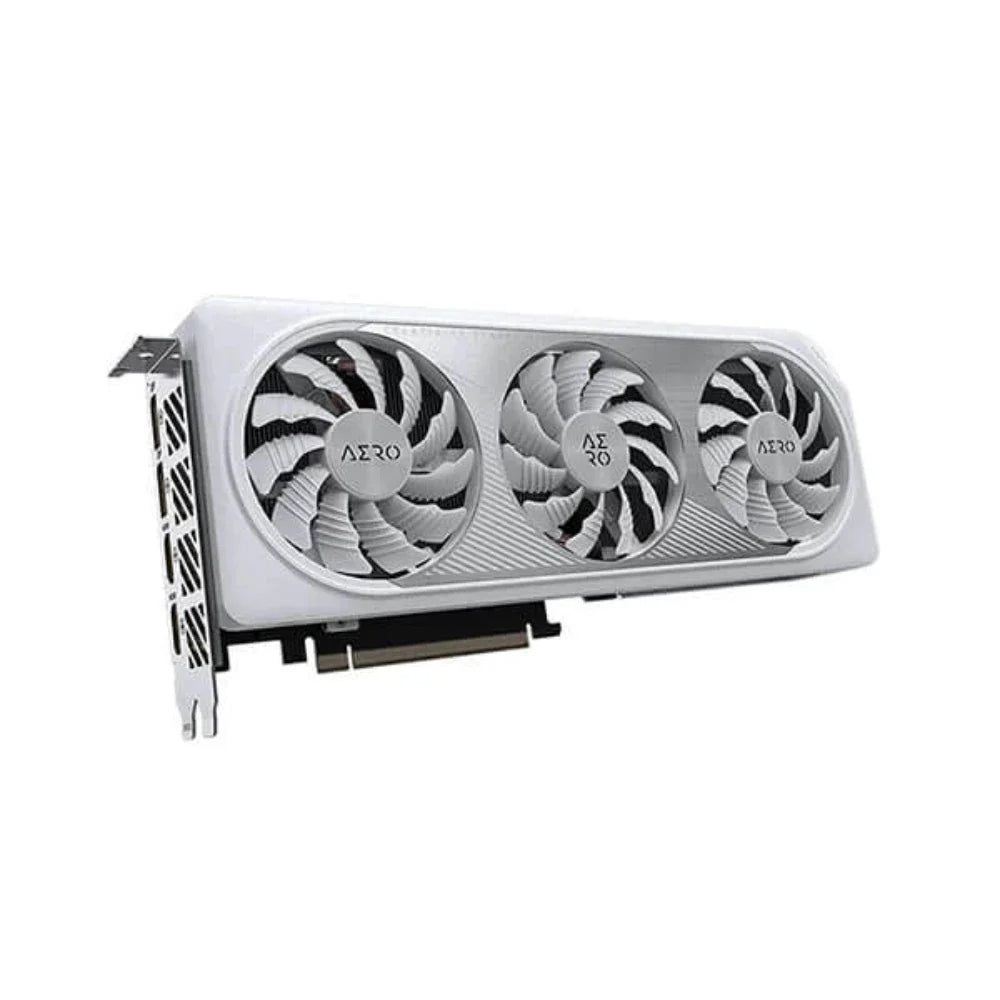

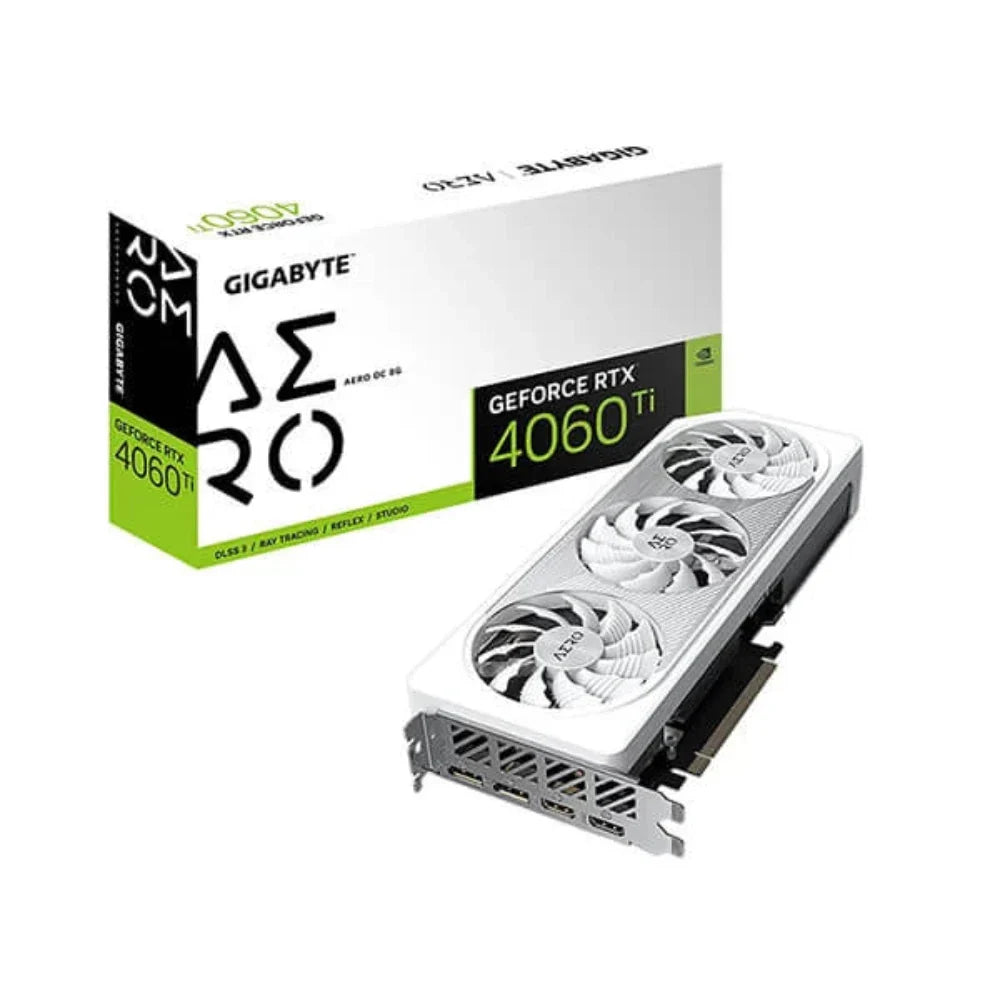

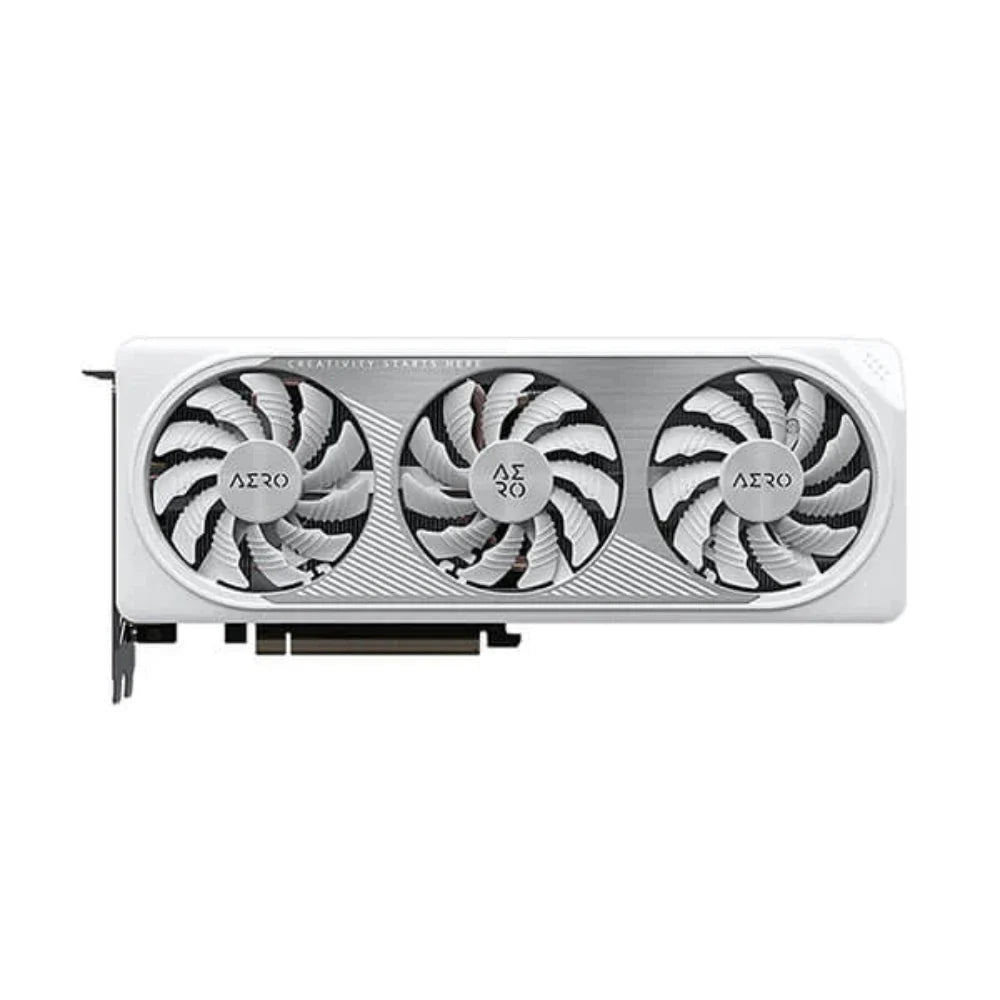

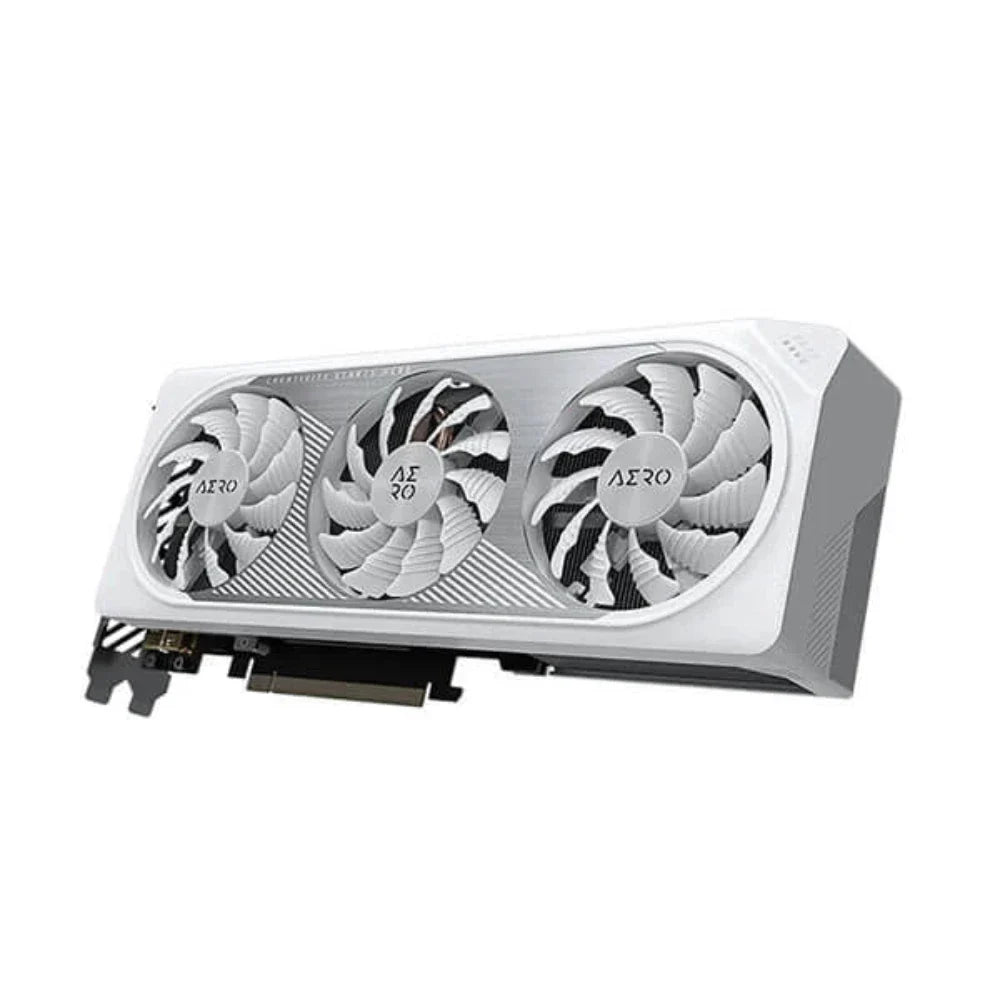

Features Of GIGABYTE GeForce RTX 4060 Ti Aero OC
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS
- 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GIGABYTE GeForce RTX 4060 Ti Aero OC graphics card for pc
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Specifications Of GIGABYTE GeForce RTX 4060 Ti Aero OC
Â
| Chipset |
GeForce RTXâ„¢ 4060 Ti (8GB) |
| Core Clock |
2580 MHz (Reference card: 2535 MHz) |
| CUDA® Cores |
4352 |
| Memory Clock |
18 Gbps |
| Memory Size |
8 GB |
| Memory Bus |
128 bit |
| Memory Type |
GDDR6 |
| Card Bus |
PCI-E 4.0 |
| Resolution |
7‎680x4320 |
| Multi-view |
4 |
| Dimension |
L=281 W=117 H=50 mm |
| PCB Form |
ATX |
| DirectX |
1‎2 Ultimate |
| OpenGL |
4.6 |
| Recommended PSU |
500 W |
| Power Connectors |
8‎ Pin*1 |
| Output |
DisplayPort 1.4a*2
HDMI 2.1a*2 |
| Accessories |
Quick guide |
| Warranty |
3 Years Warranty |
| Note* |
Price, feature and specifications are subject to change without notice. |
