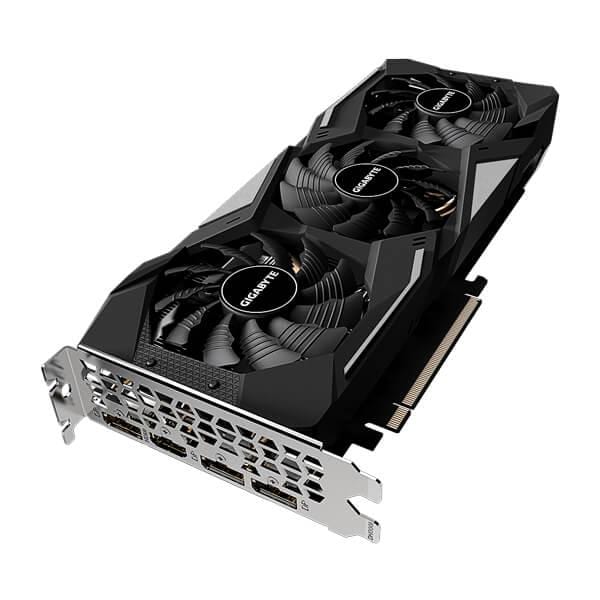

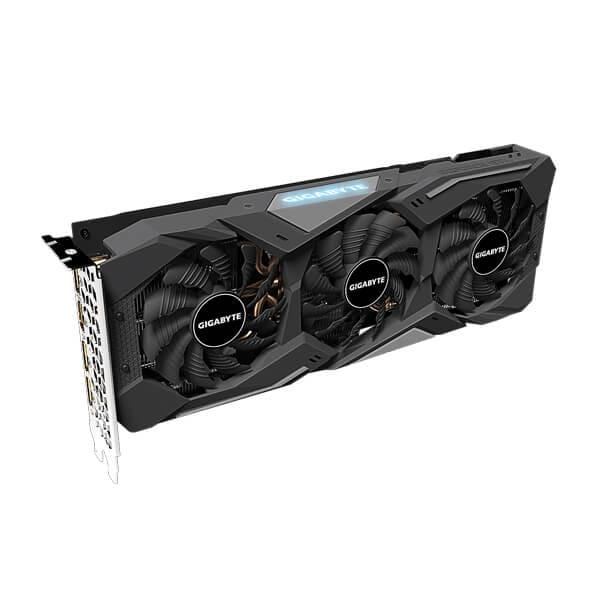

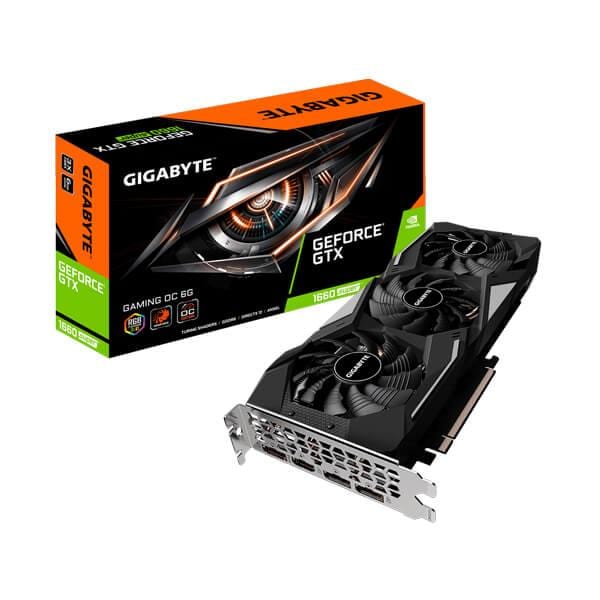

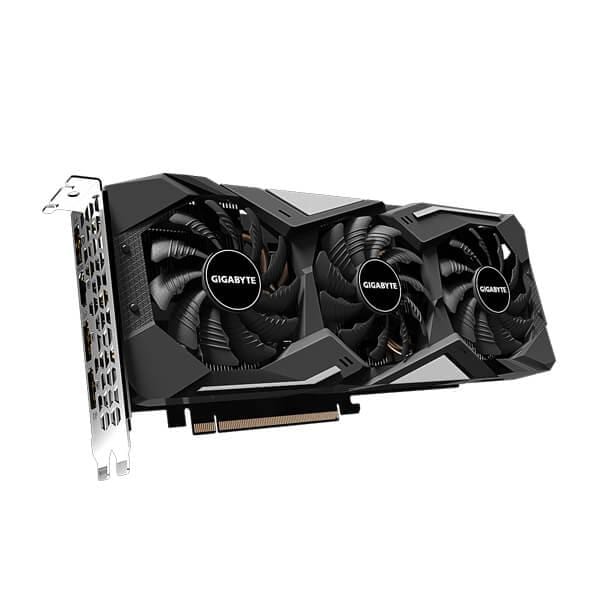

Features of GIGABYTE GeForce GTX 1660 Super Gaming OC 6GB Nvidia Graphic Card

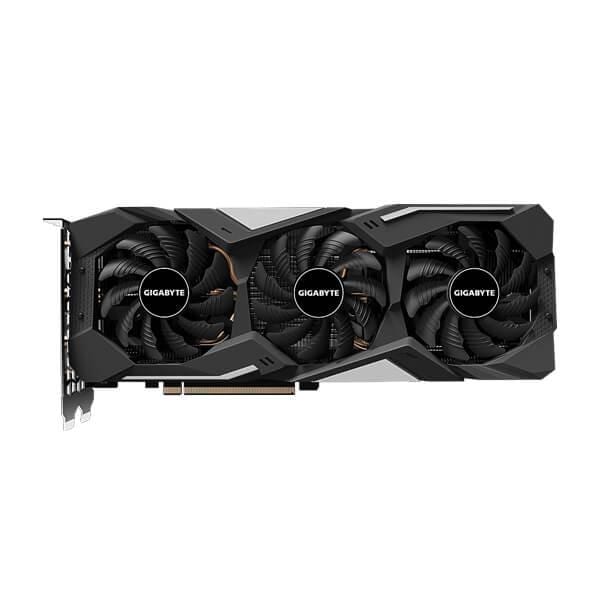

WINDFORCE 3X COOLING SYSTEM
The GIGABYTE GeForce GTX 1660 Super Gaming OC 6GB Nvidia graphics card for pc 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 3 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
The graphics card uses 4+2 power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference Card is 3+2 power phase.)
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specifications of GIGABYTE GeForce GTX 1660 Super Gaming OC 6GB Nvidia Graphic Card
| Graphics Processing |
GeForce® GTX 1660 SUPER™ |
| Core Clock |
1860 MHz (Reference Card: 1785 MHz) |
| CUDA® Cores |
1408 |
| Memory Clock |
14000 MHz |
| Memory Size |
6 GB |
| Memory Type |
GDDR6 |
| Memory Bus |
192 bit |
| Memory Bandwidth (GB/sec) |
336 GB/s |
| Card Bus |
PCI-E 3.0 x 16 |
| Digital max resolution |
7680×4320@60Hz |
| Multi-view |
4 |
| Card size |
L=280 W=116.7 H=40.4 mm |
| PCB Form |
ATX |
| DirectX |
12 |
| OpenGL |
4.6 |
| Recommended PSU |
450W |
| Power Connectors |
8 Pin*1 |
| Output |
DisplayPort 1.4 *3 |
|
HDMI 2.0b *1 |
| Accessories |
1. Quick guide |
|
2. Driver CD |
