Features of ASUS RTX 3050 LP BRK OC 6GB Nvidia Graphic Card
-
NVIDIA Ampere Streaming Multiprocessors: The all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
-
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray-tracing performance.
-
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
-
OC edition: Boost Clock 1537 MHz (OC Mode)/ 1507 MHz (Default Mode)
-
IP5X dust resistance offers protection from particle ingress for better durability.
-
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
-
A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
-
Auto-Extreme technology uses automation to enhance reliability.
-
GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.
ASUS GeForce RTX 3050 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.
IP5X Dust Resistance
Dust is enemy number one for fans. It’s easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. Passing the IP5X certification means the housing is safe from nasty particulates, so you'll never need that deep clean.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
2-slot Design
A carefully designed shroud and heatsink layout allows the fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.
Auto-Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

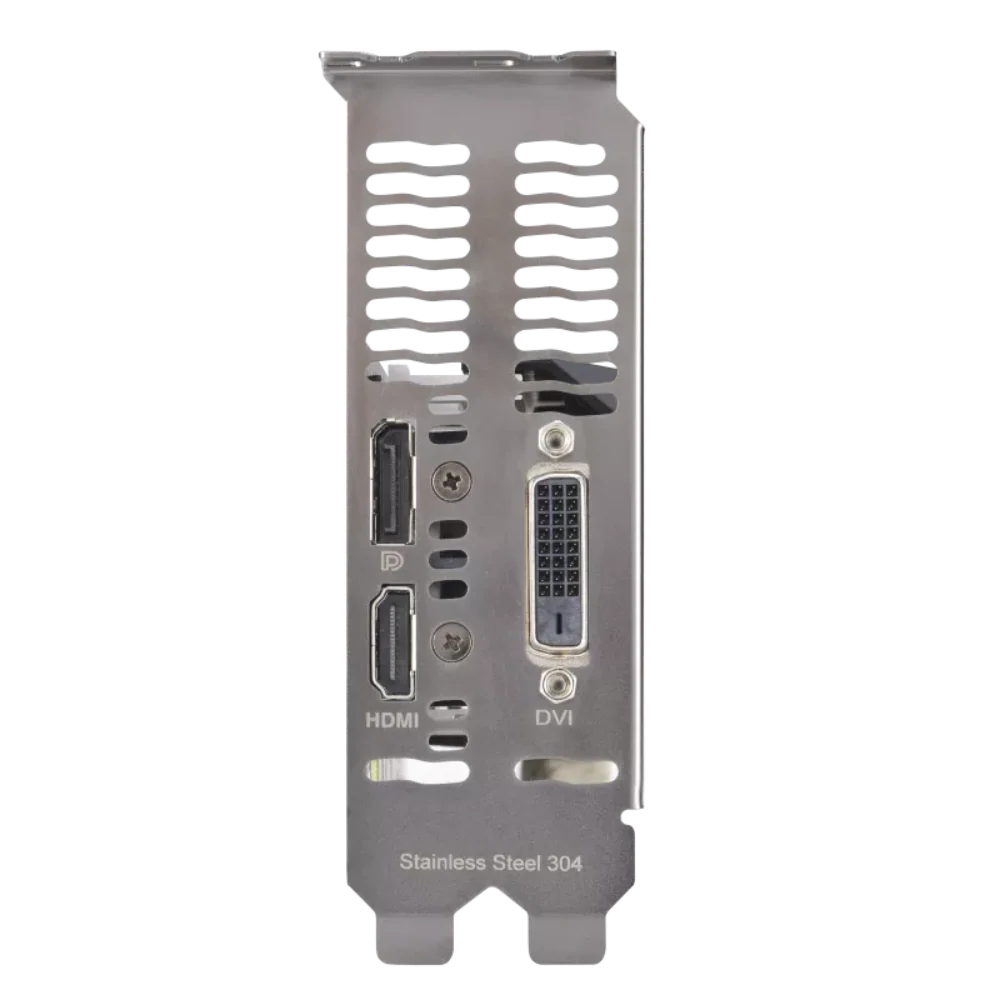

Stainless Steel Bracket
The mounting bracket of the ASUS GeForce RTX 3050 LP BRK has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
Specifications of ASUS RTX 3050 LP BRK OC 6GB Nvidia Graphic Card
| Model |
RTX3050-O6G-LP-BRK |
| Part No |
90YV0KQ0-M0AA00 |
| Model |
RTX3050-O6G-LP-BRK |
| Graphic Engine |
NVIDIA® GeForce RTX™ 3050 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
6GB GDDR6 |
| Engine Clock |
OC mode : 1537 MHz (Boost Clock)
Default mode : 1507 MHz (Boost Clock) |
| CUDA Core |
2304 |
| Memory Speed |
14 Gbps |
| Memory Interface |
96-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 1 (Native DVI-D)
Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a) |
| HDCP Support |
Yes (2.3) |
| Maximum Display Support |
3 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Speedsetup Manual
1 x LP bracket |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
182 x 69 x 40 mm
7.17 x 2.72 x 1.58 inches |
| Recommended PSU |
450W |
| Power Connectors |
No |
| Slot |
2 Slot |
| WARRANTY |
3 Years |
| NOTE** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
