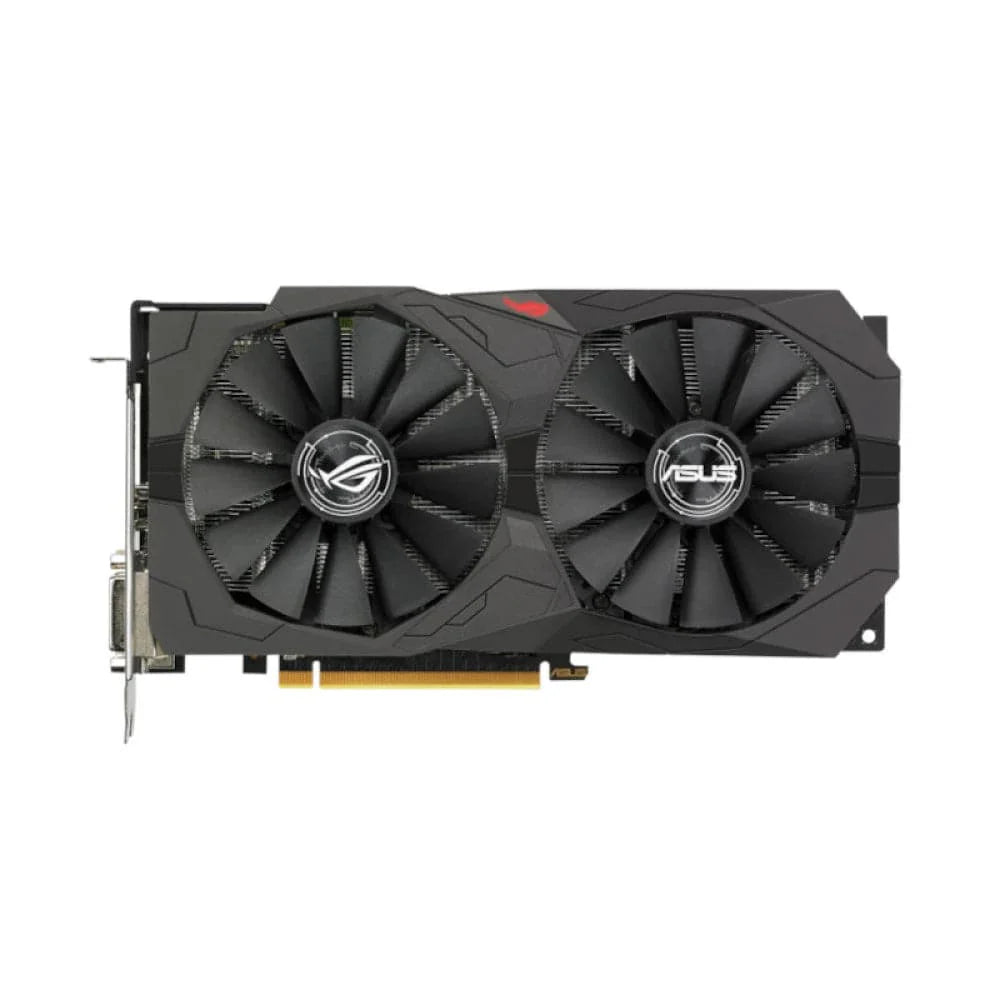

Features of ASUS ROG Strix Radeon RX 560 V2 4GB
ROG Strix graphics cards give you complete control over performance and aesthetics; an advanced Wing-blade fan design keeps things cool and GPU Tweak software lets you fine-tune every setting. Whether you’re upgrading a computer or building your first gaming rig, the ROG Strix Radeon RX 560 V2 graphic card provides a premium introduction to PC gaming.
- ROG Strix Radeon RX 560 4GB GDDR5 is your ticket into PC gaming.
- Wing-blade fan design incorporates drooped tips on each blade to reduce drag.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- DirectCU II copper heatpipes make direct contact with the die for better cooling.
- Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
- Auto-Extreme Technology uses automation to enhance reliability.
ROG Strix Radeon™ RX 560 4GB GDDR5 is your ticket into PC gaming.
Wing-blade fan design incorporates drooped tips on each blade to reduce drag.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
DirectCU II copper heatpipes make direct contact with the die for better cooling.
Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
Auto-Extreme Technology uses automation to enhance reliability.
Wing-blade Fan Design
They’re pretty fly
Our patented Wing-blade fan design adds drooped tips to each fan blade in order to reduce drag.

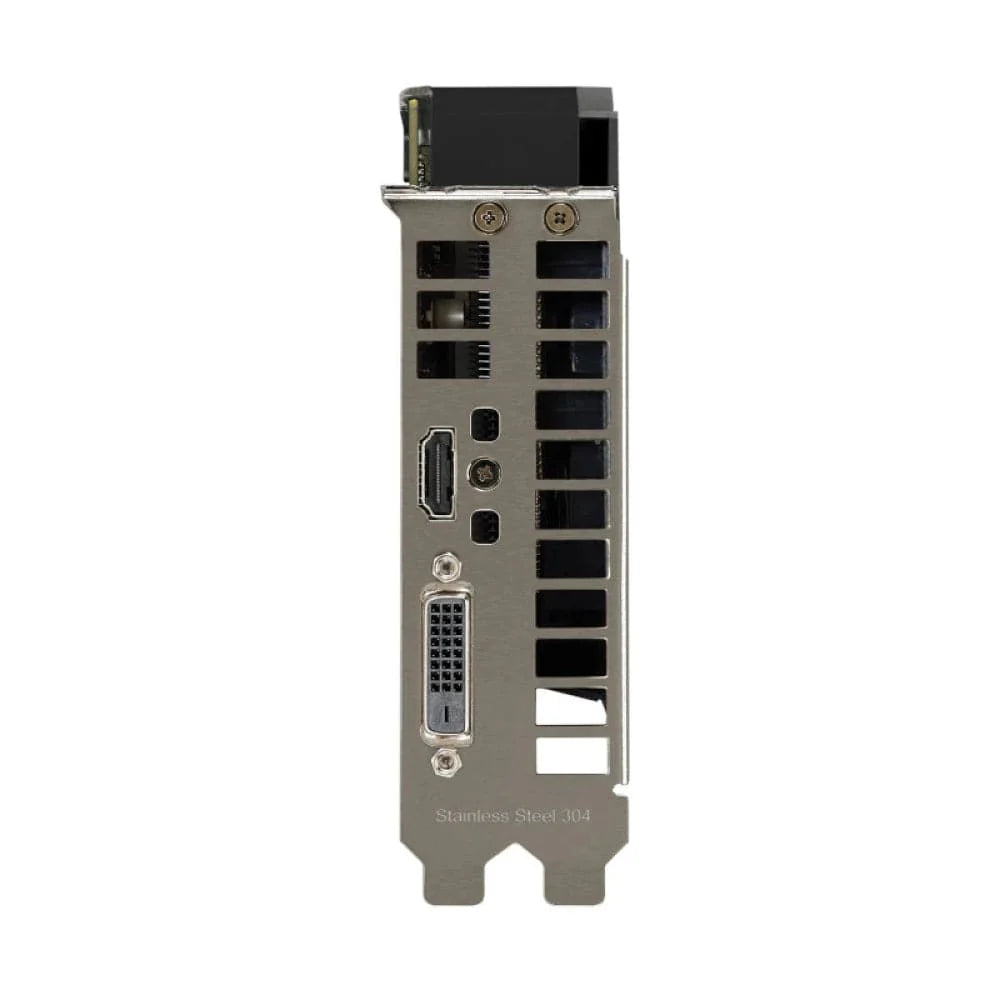

Stainless Steel Bracket-Steel yourself
The mounting bracket of the ROG Strix has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
Auto−Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Aura Sync
Outshine the competition
The ROG Strix Radeon RX 560 features Aura RGB lighting on the shroud. Get Aura Sync software to connect your compatible products for a completely customized gaming setup. You can sync to music, change color based on temperature, or select from a large number of patterns and static options, so make sure to look out for the Aura Sync logo when you’re picking parts for your build.
Specifications of ASUS ROG Strix Radeon RX 560 V2 4GB
| Specification |
| Graphic Engine |
AMD Radeon RX 560 |
| Bus Standard |
PCI Express 3.0 |
| OpenGL |
OpenGL®4.5 |
| Video Memory |
4GB GDDR5 |
| Engine Clock |
1199 MHz |
| Stream Processors |
1024 |
| Memory Speed |
6.8 Gbps |
| Memory Interface |
128-bit |
| Resolution |
Digital Max Resolution 5120 x 2880 |
| Interface |
Yes x 1 (Native Dual-link DVI-D)
Yes x 1 (Native HDMI 2.0b)
HDCP Support Yes (2.2) |
| Maximum Display Support |
2 |
| NVlink/ Crossfire Support |
No |
| Software |
ASUS GPU Tweak II & Drivers: please download all software from the support site. |
| Accessories |
1 x Speedsetup Manual
1 x ROG Velcro Hook & Loop |
| Dimensions |
242 x 129 x 42 mm
9.52 x 5.08 x 1.65 inches |
| Recommended PSU |
450W |
| Power Connectors |
1 x 8-pin |
| Slot |
2 Slot |
| Warranty |
3 Years |
| Note* |
Price, feature and specifications are subject to change without notice |
