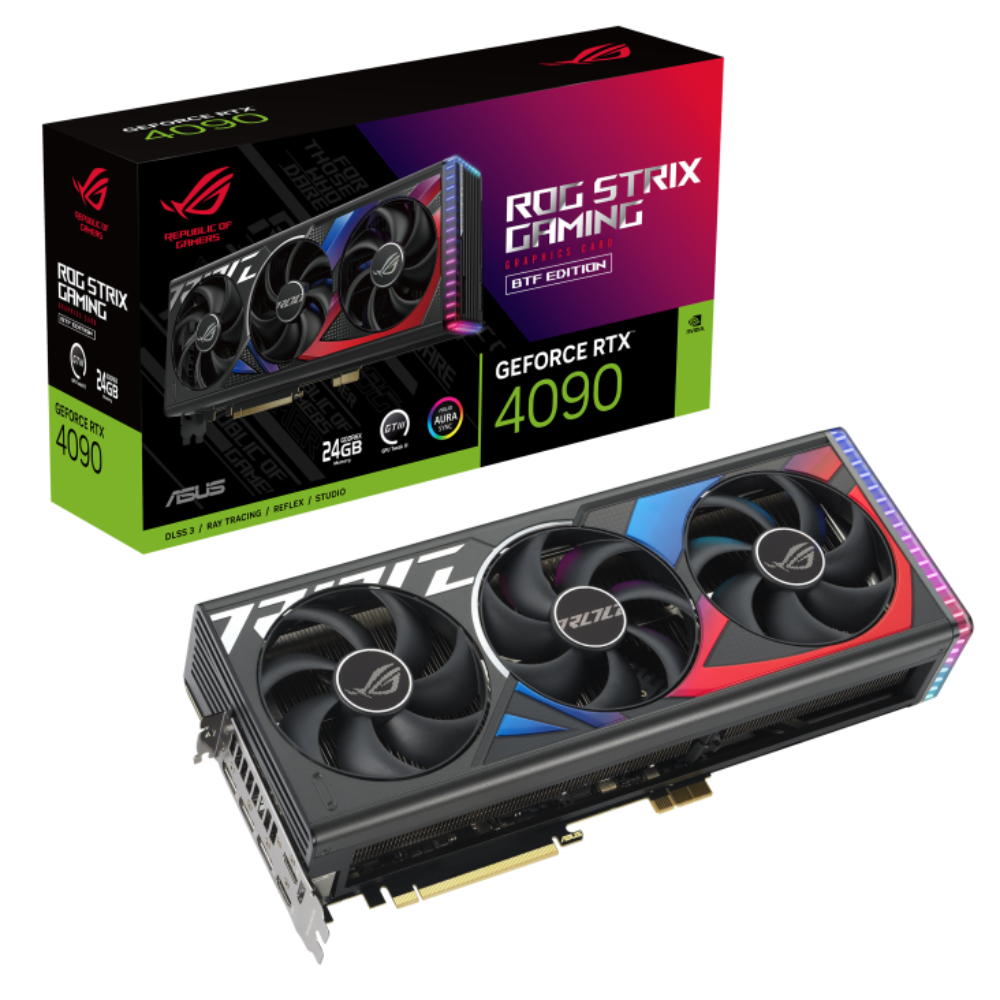

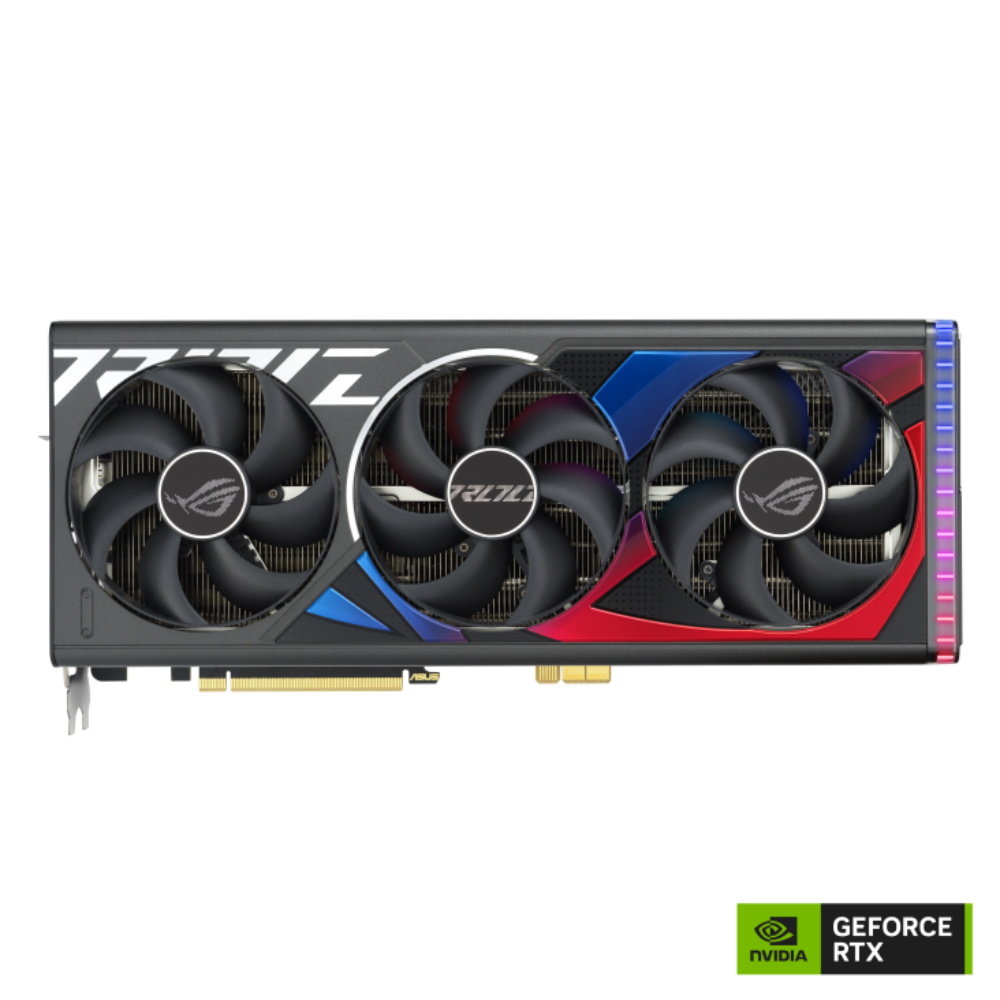

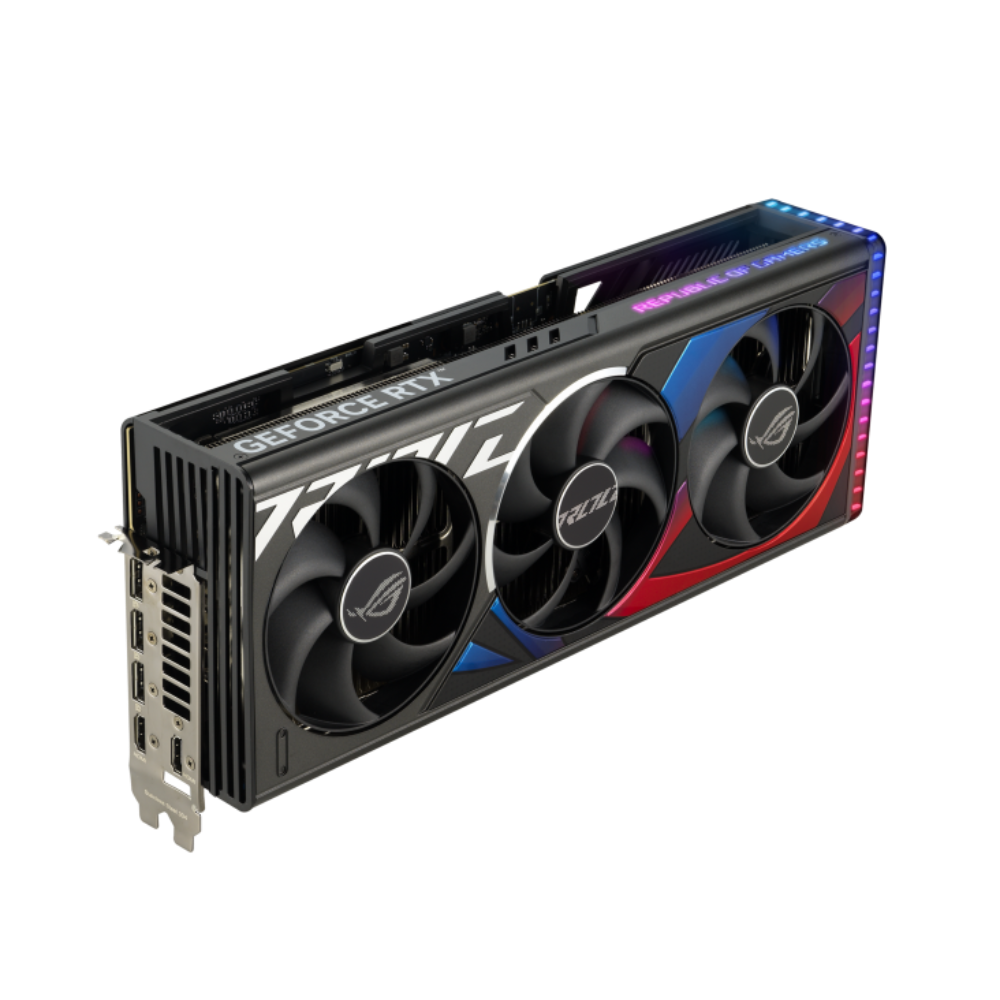

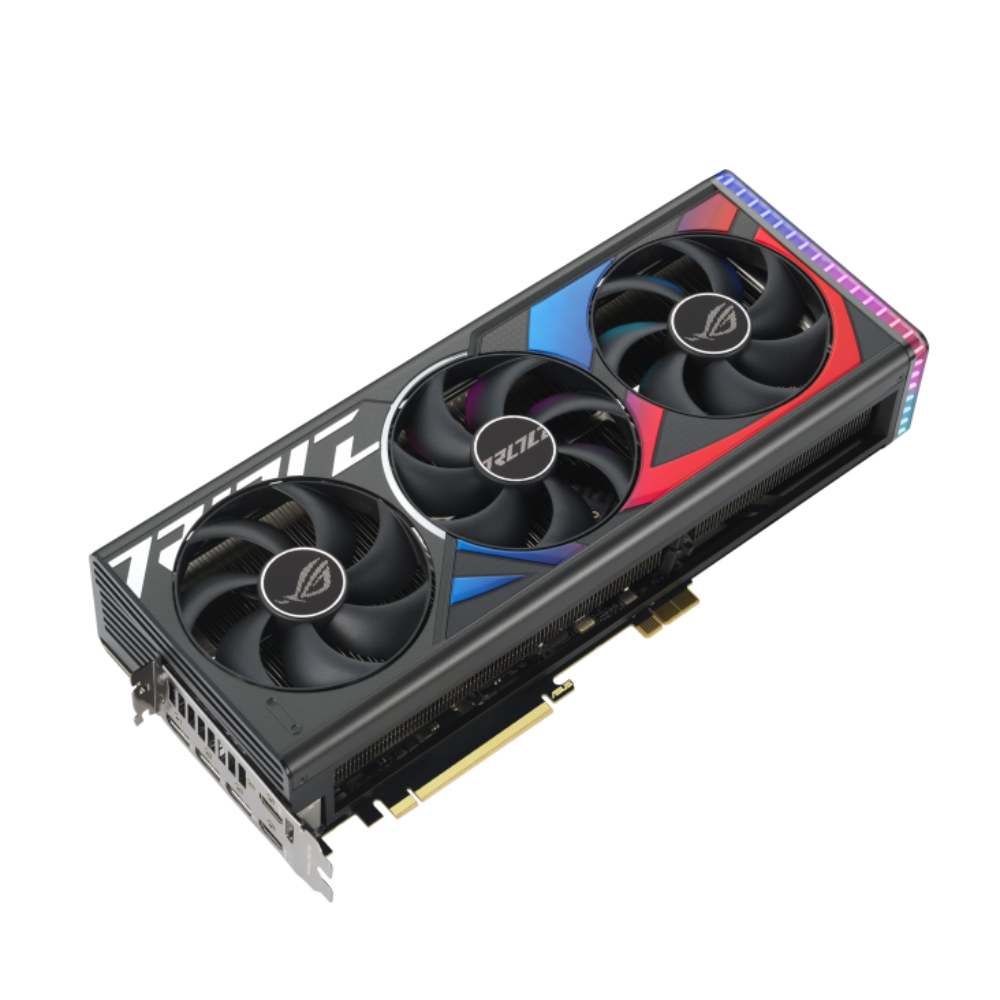

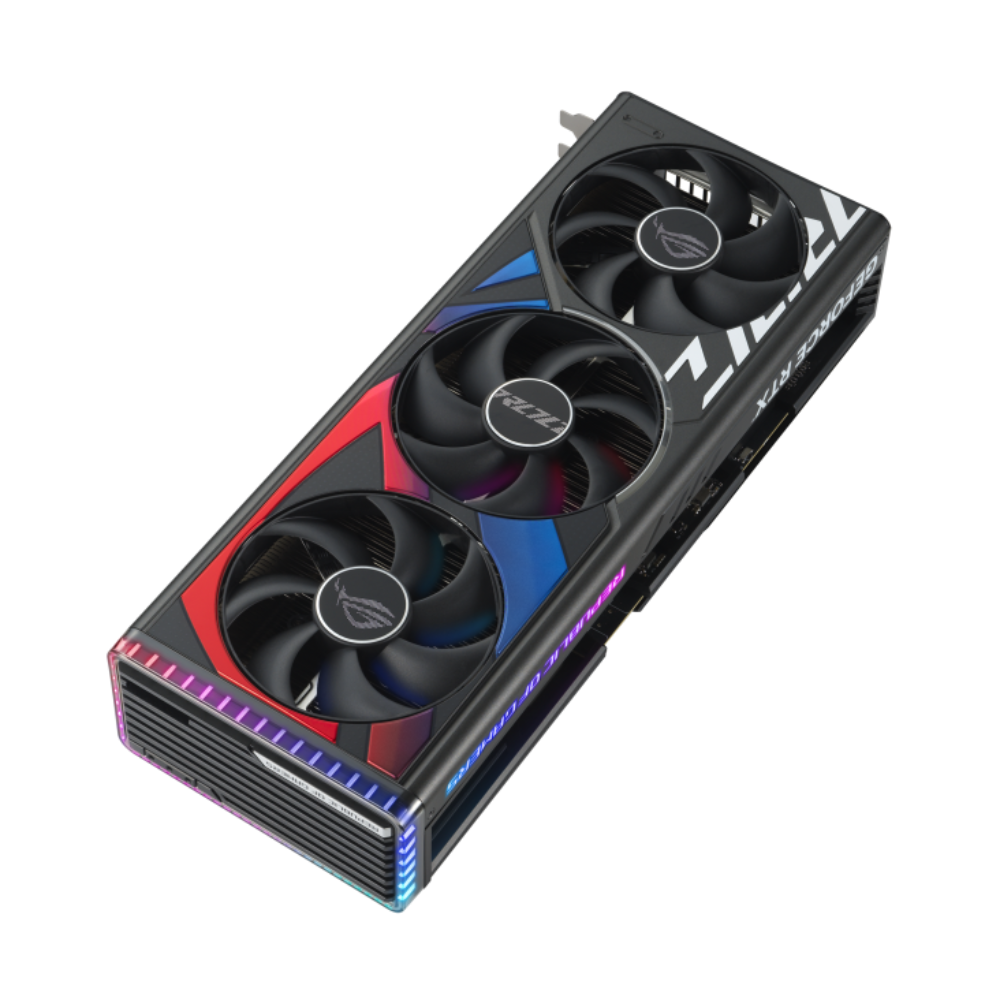

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X buffed-up design with chart-topping thermal performance and innovative Graphics Card High-Power (GC-HPWR) Gold Finger.
-
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
-
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
-
3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: boost clock 2640 MHz (OC mode)/ 2610 MHz (default mode)
-
Graphics card high-power gold finger for power transmission, and prevent GPU sag
- Eliminate the need for traditional 16-pin external power connections to the graphics card
-
Axial-tech fans scaled up for 23% more airflow
-
New patented vapor chamber with milled heatspreader for lower GPU temps
-
3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
-

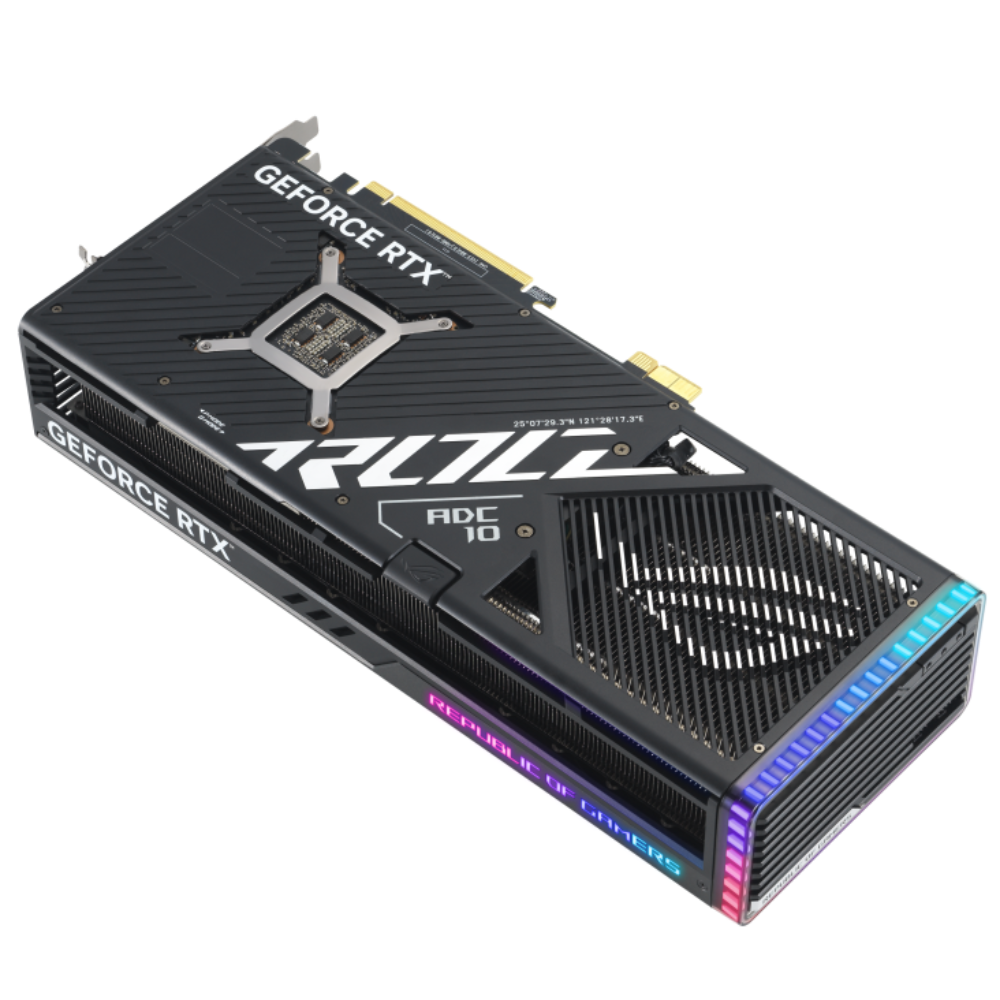

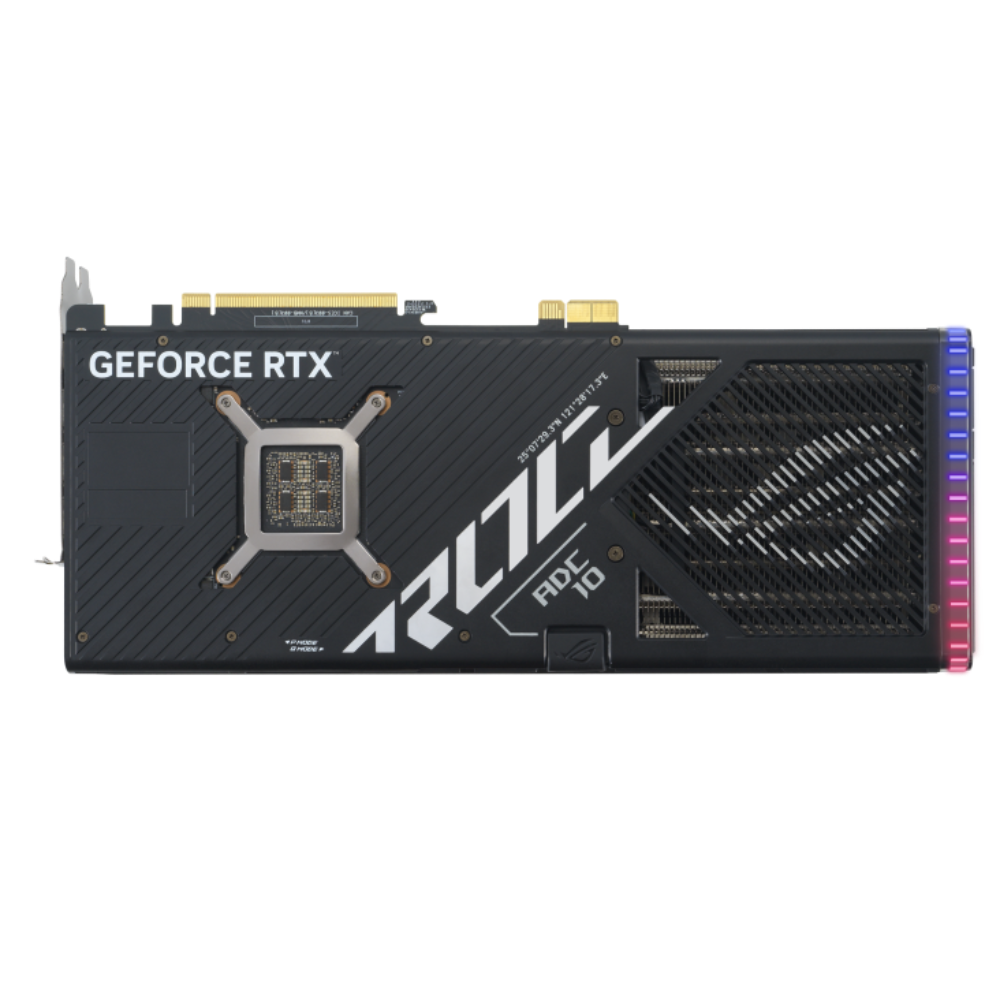

Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
-
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
-
Auto-Extreme precision automated manufacturing for higher reliability
-
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
With the incredible sum of its parts
The ROG Strix GeForce RTX™ 4090 BTF Edition brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
Advanced BTF Design
With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.
With the incredible sum of its parts
The ROG Strix GeForce RTX™ 4090 BTF Edition brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
Graphics Card High-Power (GC-HPWR) Gold Finger
A Clutter-Free Future
The graphics card high-power (GC-HPWR) gold finger is capable to deliver up to 600W through the “graphics card high-power slot” on BTF motherboards, eliminating visible external power connectors for a cleaner build. This design also adds structural support, preventing graphics card sag and ensuring a sleek setup.

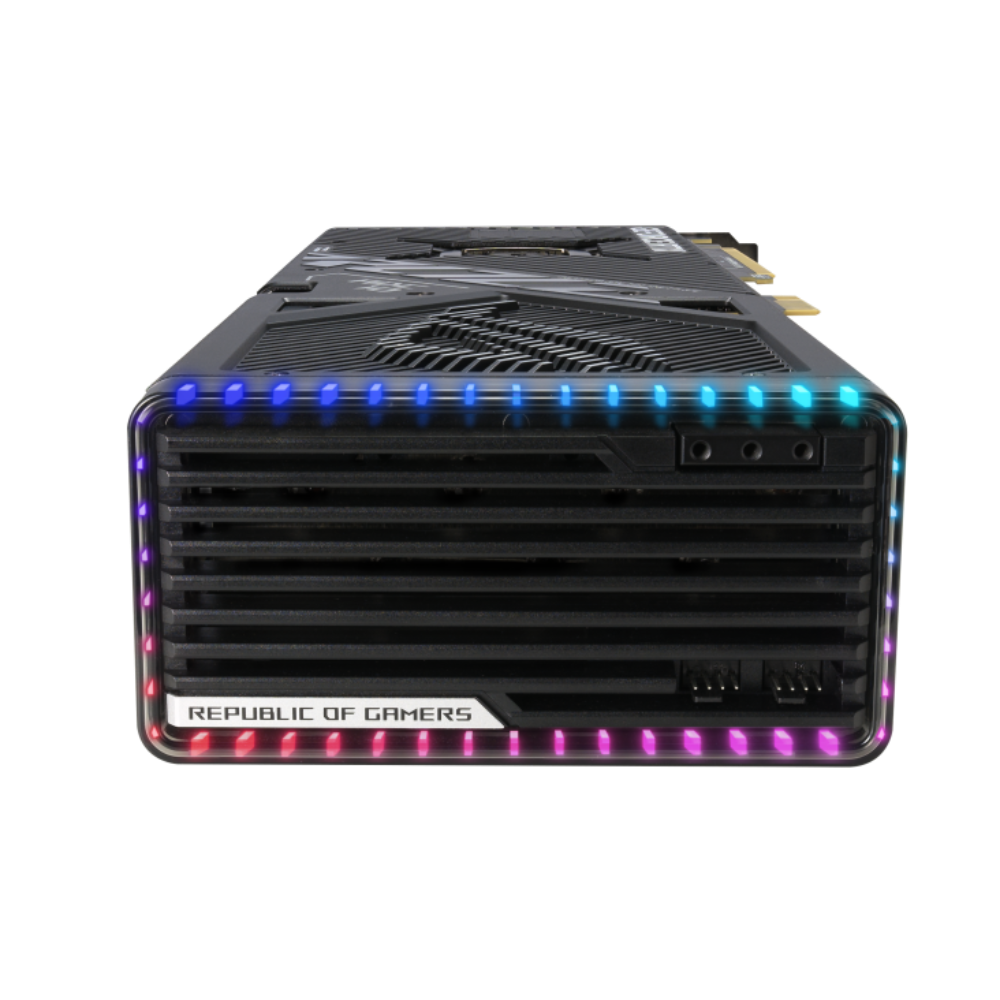

FanConnect II
Hook up
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Reinforcements
Additional Perks
A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Auto-Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Aura Sync
Symphony of Light
Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.
Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
Further With AI,
Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
Specifications of ASUS ROG Strix GeForce RTX 4090 BTF Edition 24GB Nvidia Graphic Card
| Model |
ROG-STRIX-RTX4090-24G-BTF-GAMING |
| Product Code |
90YV0JT1-M0AA00 |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4090 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
24GB GDDR6X |
| Engine Clock |
OC mode: 2550 MHz
Default mode: 2520 MHz (Boost clock) |
| CUDA Core |
16384 |
| Memory Speed |
21 Gbps |
| Memory Interface |
384-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |

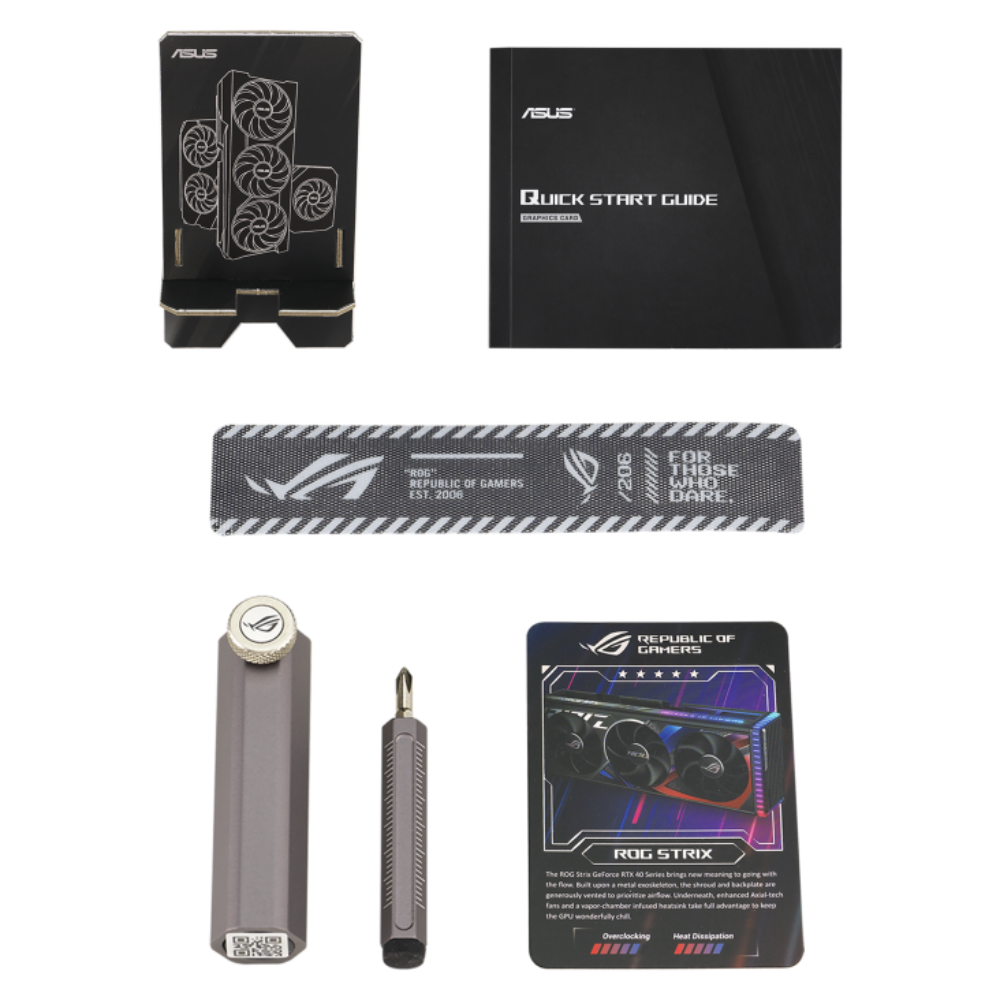

| Accessories |
1 x Collection Card
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x Thank you Card |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
357.6 x 149.3 x 70.1mm |
| Recommended PSU |
1000W |
| Power Connectors |
PCIe high-power connector |
| Slot |
3.5 Slot |
| AURA SYNC |
ARGB |
