Feature of ASUS ROG Strix Geforce RTX 4080 Super OC Edition 16GB NVIDIA Graphics Card
ROG Strix GeForce RTX 4080 SUPER 16GB GDDR6X OC Edition
ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X OC Edition with DLSS 3 and chart-topping thermal performance.
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- OC mode: 2670 MHz (OC mode)/ 2640 MHz (Default mode)

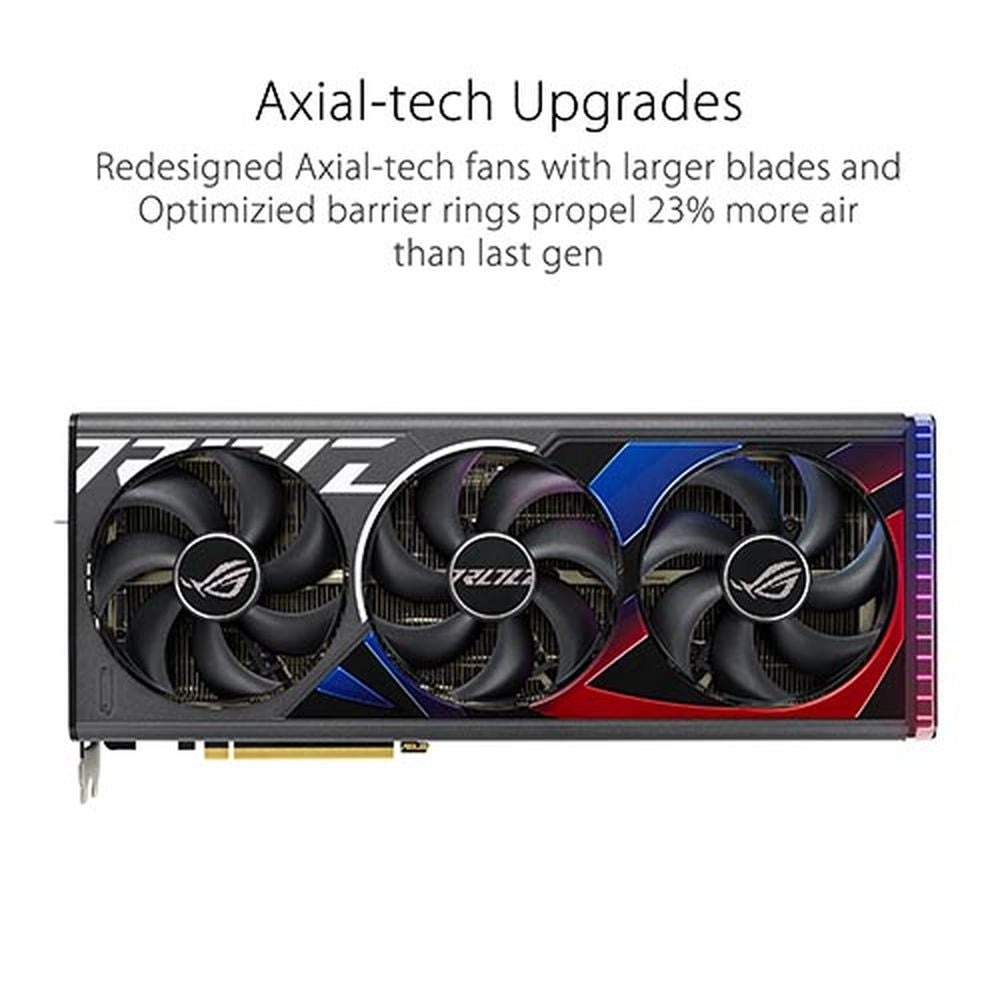

- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
3.5-slot Design-Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4080 SUPER GPU so that it can be efficiently whisked away by the three Axial-tech fans.

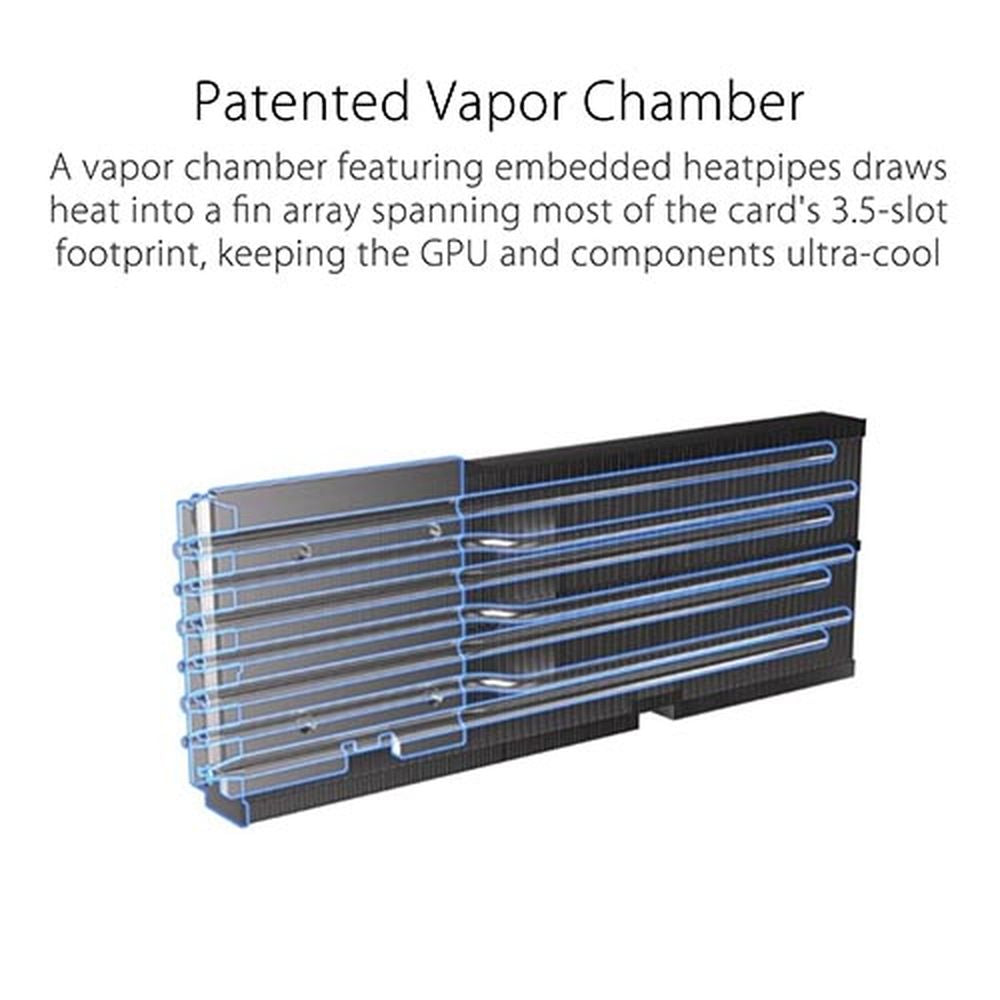

Patented Vapor Chamber-Phase Changer
A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.
Specifications of ASUS ROG Strix Geforce RTX 4080 Super OC Edition 16GB NVIDIA Graphics Card
| Model |
ROG-STRIX-RTX4080S-O16G-GAMING |
| Part No |
90YV0KB0-M0AA00 |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4080 SUPER |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
16GB GDDR6X |
| Engine Clock |
OC mode : 2670 MHz |
|
Default mode : 2640 MHz (boost) |
| CUDA Core |
10240 |
| Memory Speed |
23 Gbps |
| Memory Interface |
256-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

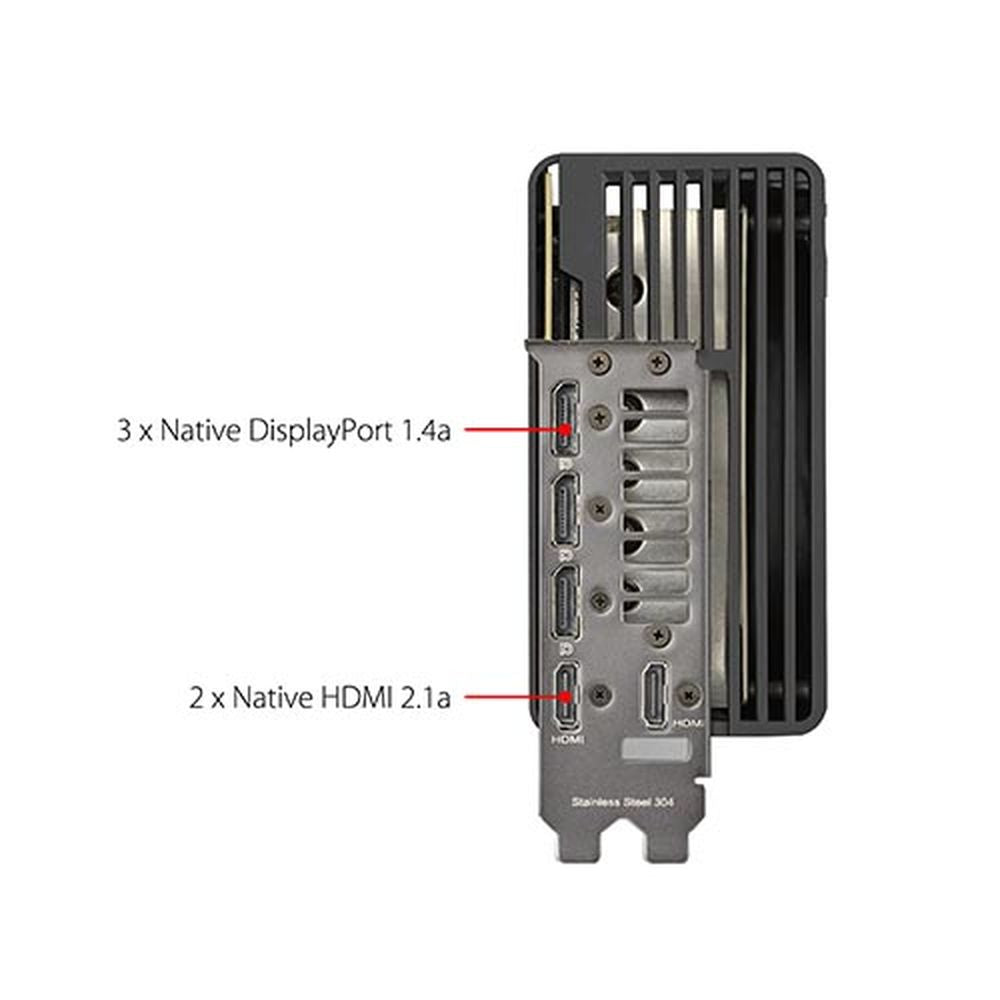

| Interface |
Yes x 2 (Native HDMI 2.1a) |
|
Yes x 3 (Native DisplayPort 1.4a) |
|
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card |
|
1 x Speedsetup Manual |
|
1 x Adapter Cable (1 to 3) |
|
1 x ROG Graphics Card Holder |
|
1 x ROG Velcro Hook & Loop |
|
1 x Thank you Card |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
357.6 x 149.3 x 70.1mm |
| Recommended PSU |
850W |
| Power Connectors |
1 x 16-pin |
| Slot |
3.5 Slot |
| AURA SYNC |
ARGB |
