Features of Asus ROG Strix Geforce RTX 4070 12GB NVIDIA Gaming Graphics Card
- AI Performance: 466 AI TOPS
-
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
-
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
-
Axial-tech fans scaled up for 31% more airflow
-
3.12-slot design: massive fin array optimized for airflow from the three Axial-tech fans
-
Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
-
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
-
Auto-Extreme precision automated manufacturing for higher reliability
-
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
with the incredible sum of its parts
The ROG Strix GeForce RTX™ 4070 brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
rchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Packs a Punch
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.
Specifications of Asus ROG Strix Geforce RTX 4070 12GB NVIDIA Gaming Graphics Card
| Model No |
90YV0J01-M0AA00 |
| Model |
ROG-STRIX-RTX4070-12G-GAMING |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4070 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
12GB GDDR6X |
| Engine Clock |
OC mode: 2505 MHz
Default mode: 2475MHz (Boost clock) |
| CUDA Core |
5888 |
| Memory Speed |
21 Gbps |
| Memory Interface |
192-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |

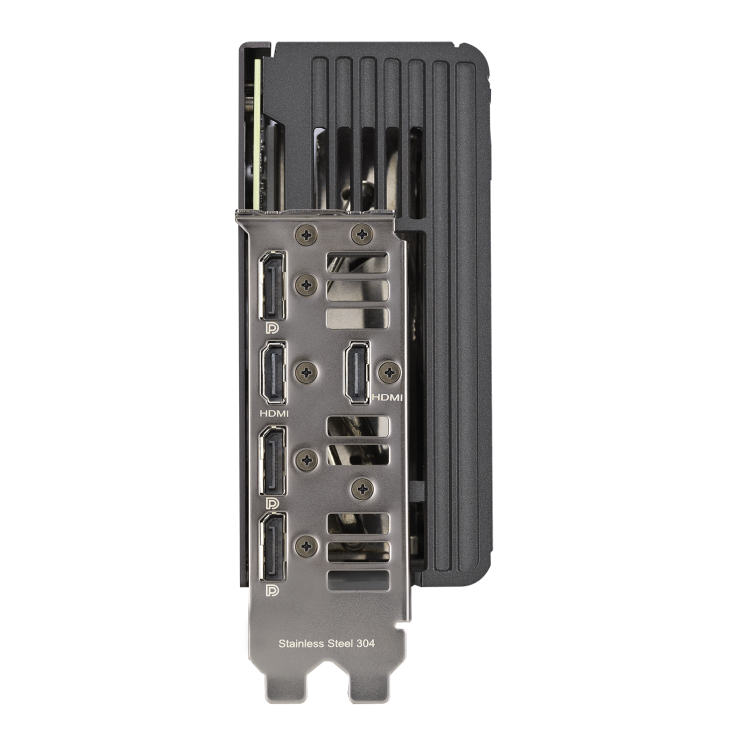

Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card
1 x Speedsetup Manual
1 x Thank you Card
1 x ROG Velcro Hook & Loop
1 x ROG Graphics card holder
1 x 2* PCIE 8pin to 16pin Adapter Cable |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
|
| Dimensions |
338.9 x 149.4 x 62.4 mm |
| Recommended PSU |
650W |
| Power Connectors |
1 x 16-pin |
| Slot |
3.12 slot |
| AURA SYNC |
ARGB |
| Note |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by a third party to ASUS based on false advertising or any other issues caused by using false specifications of ASUS products. |
