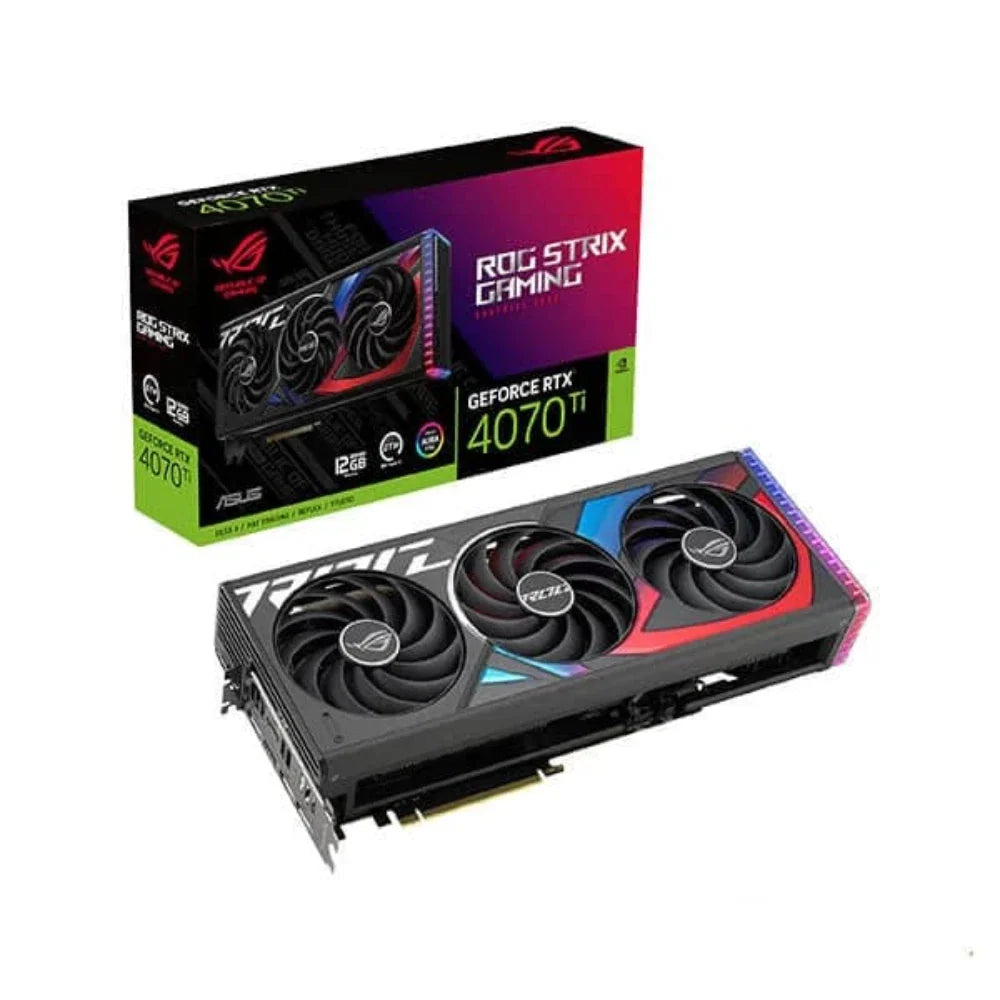

Features of ASUS ROG Strix Gaming GeForce RTX 4070 Ti 12GB
ASUS ROG Strix GeForce RTX™ 4070 Ti 12GB GDDR6X graphic card with DLSS 3 and chart-topping thermal performance. Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing. It has 4th Generation Tensor Cores.
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 31% more airflow
- 3.15-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance

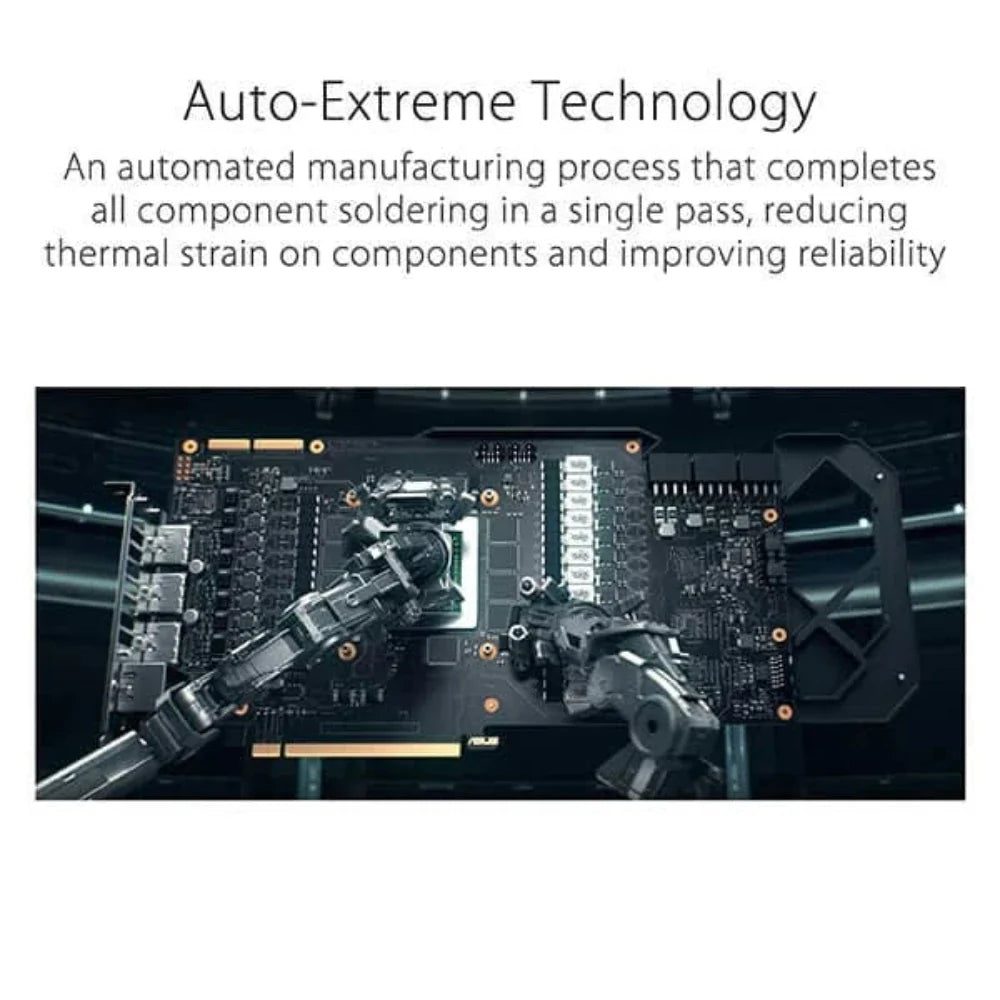

- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

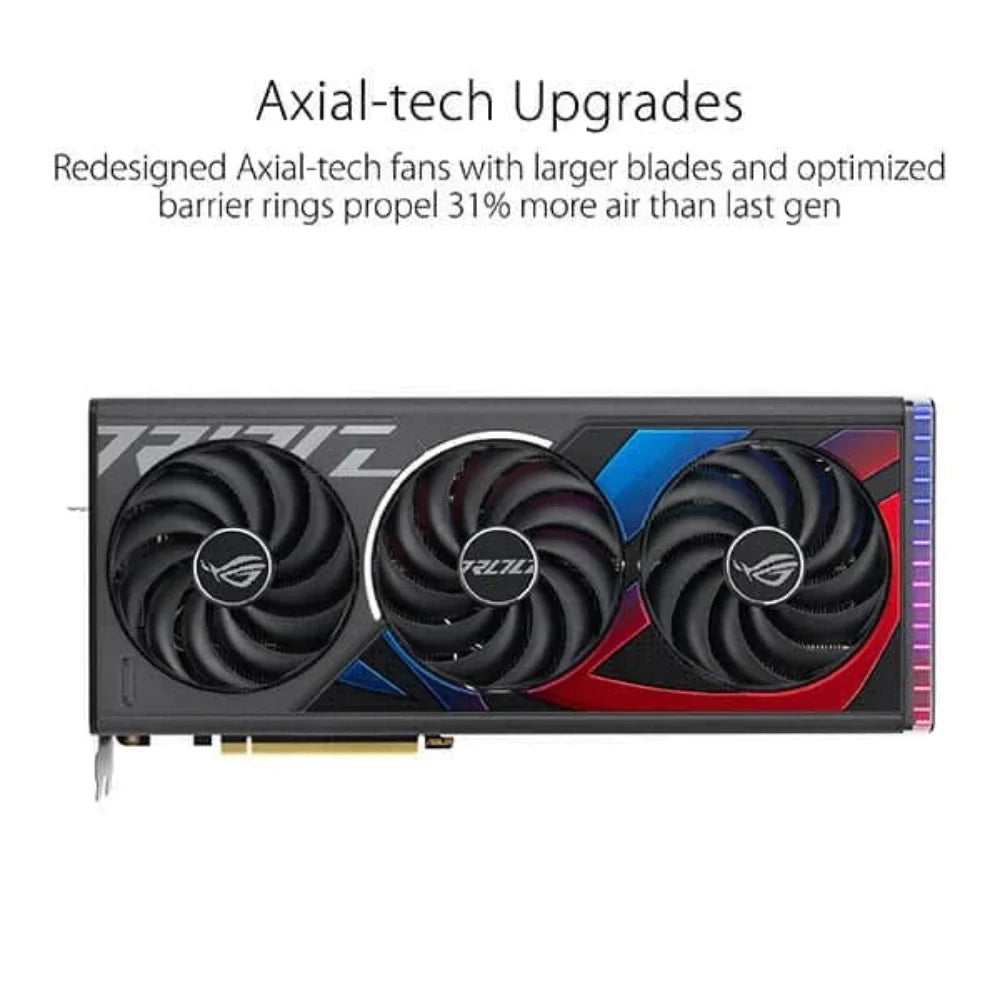

Axial-tech Upgrades
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.

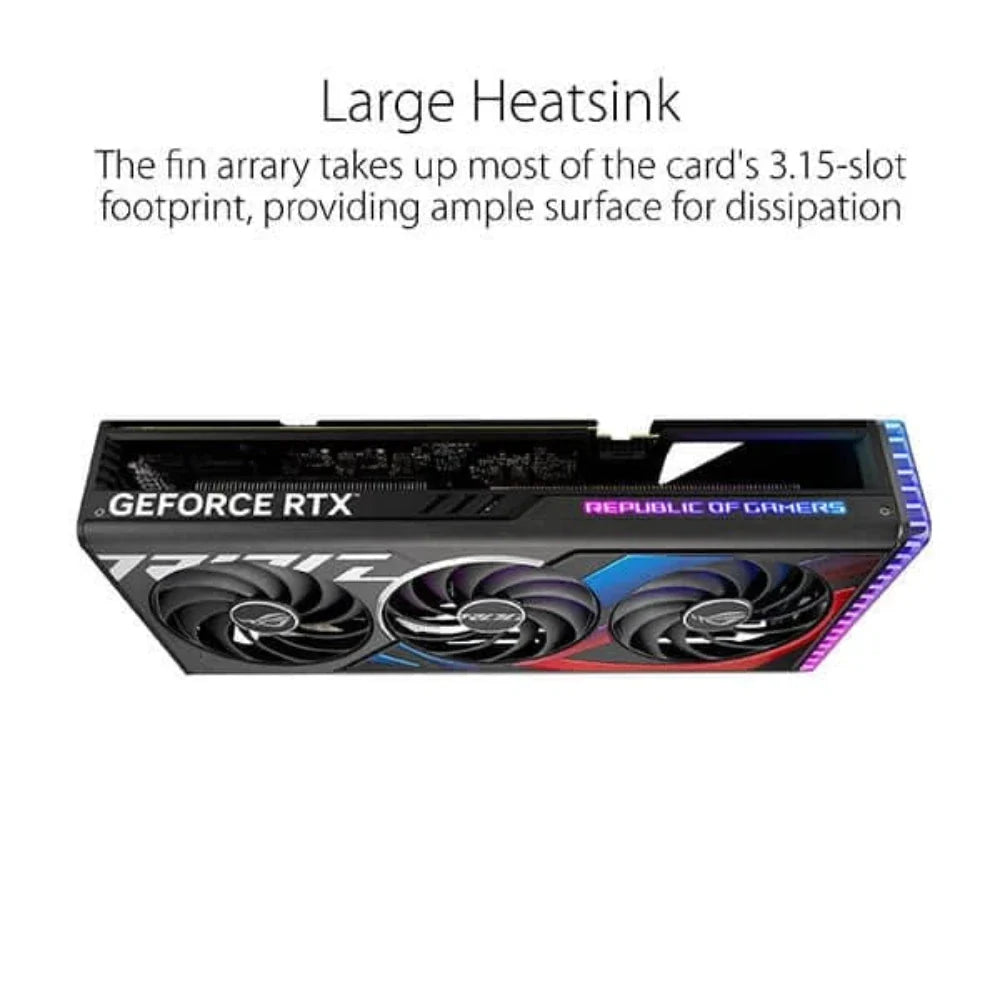

3.15-slot Design
Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4070 Ti GPU so that it can be efficiently whisked away by the three Axial-tech fans.
Compact PCB
Packs a Punch
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

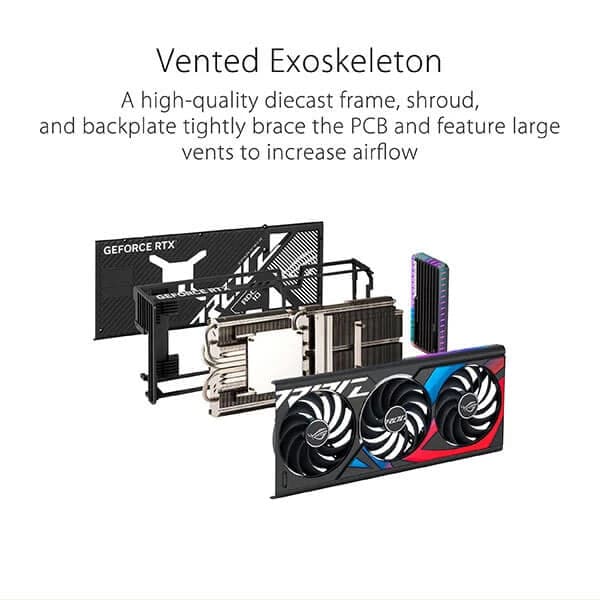

Metal Exoskeleton
Ultra-rigid
A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.
Aura Sync
Symphony of Light
Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.
Specifications of ASUS ROG Strix Gaming GeForce RTX 4070 Ti 12GB
| Graphic Engine |
NVIDIA® GeForce RTX™ 4070 Ti |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
12GB GDDR6X |
| Engine Clock |
OC mode: 2640 MHz |
|
Default mode: 2610 MHz (Boost clock) |
| CUDA Core |
7680 |
| Memory Speed |
21 Gbps |
| Memory Interface |
192-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

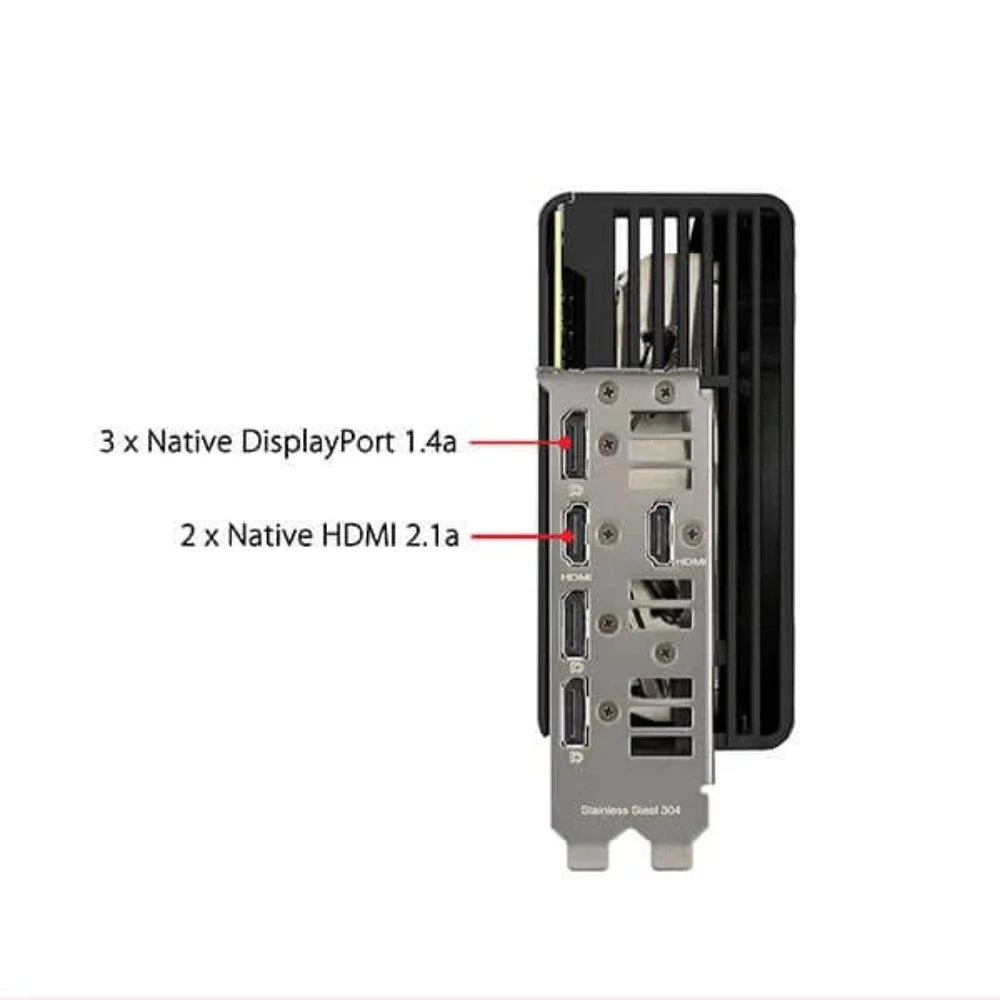

| Interface |
Yes x 2 (Native HDMI 2.1a) |
|
Yes x 3 (Native DisplayPort 1.4a) |
|
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card |
|
1 x Speedsetup Manual |
|
1 x Adapter Cable (1 to 3) |
|
1 x ROG Graphics Card Holder |
|
1 x ROG Velcro Hook & Loop |
|
1 x Thank you Card |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
336 x 150 x 63 mm |
| Recommended PSU |
750W |
| Power Connectors |
1 x 16-pin |
| Slot |
3.15 Slot |
| AURA SYNC |
ARGB |
| Warranty |
3 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice. |
