Features of ASUS ROG Matrix GeForce RTX 4090 Platinum 24GB Nvidia Graphic Card

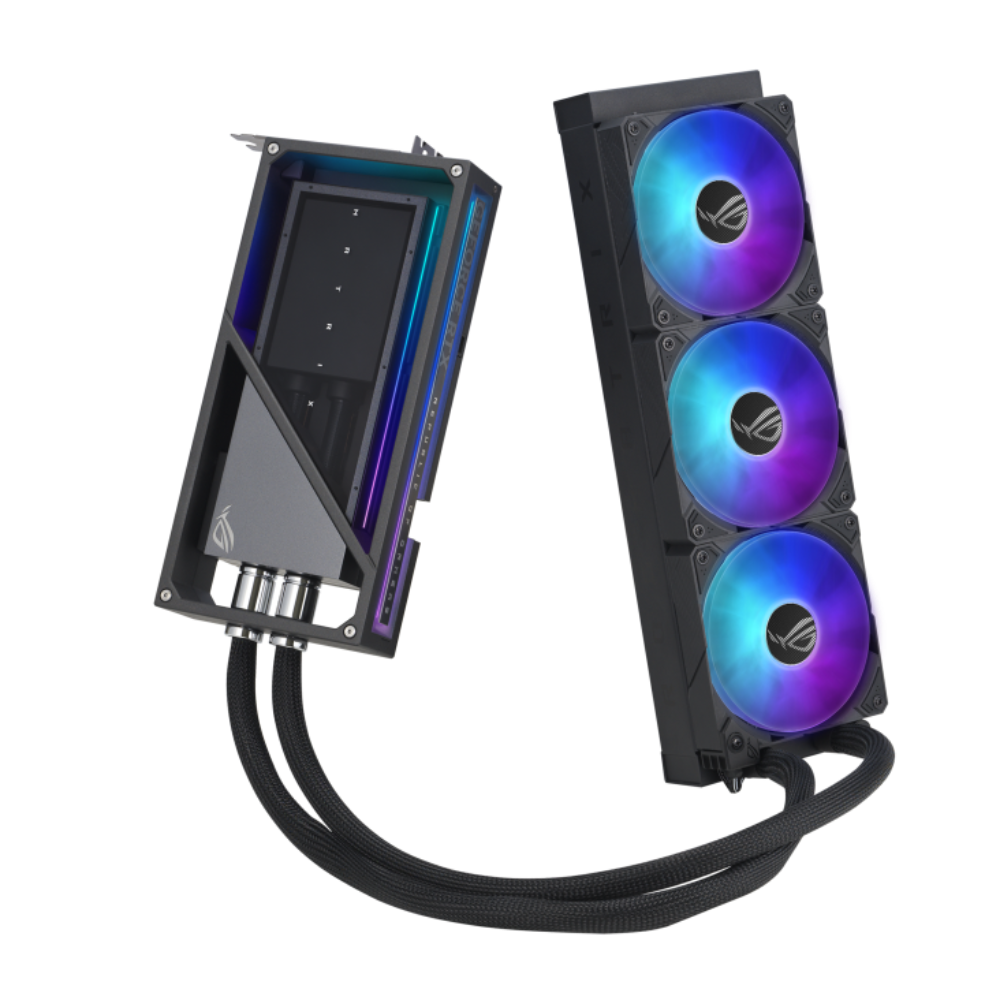

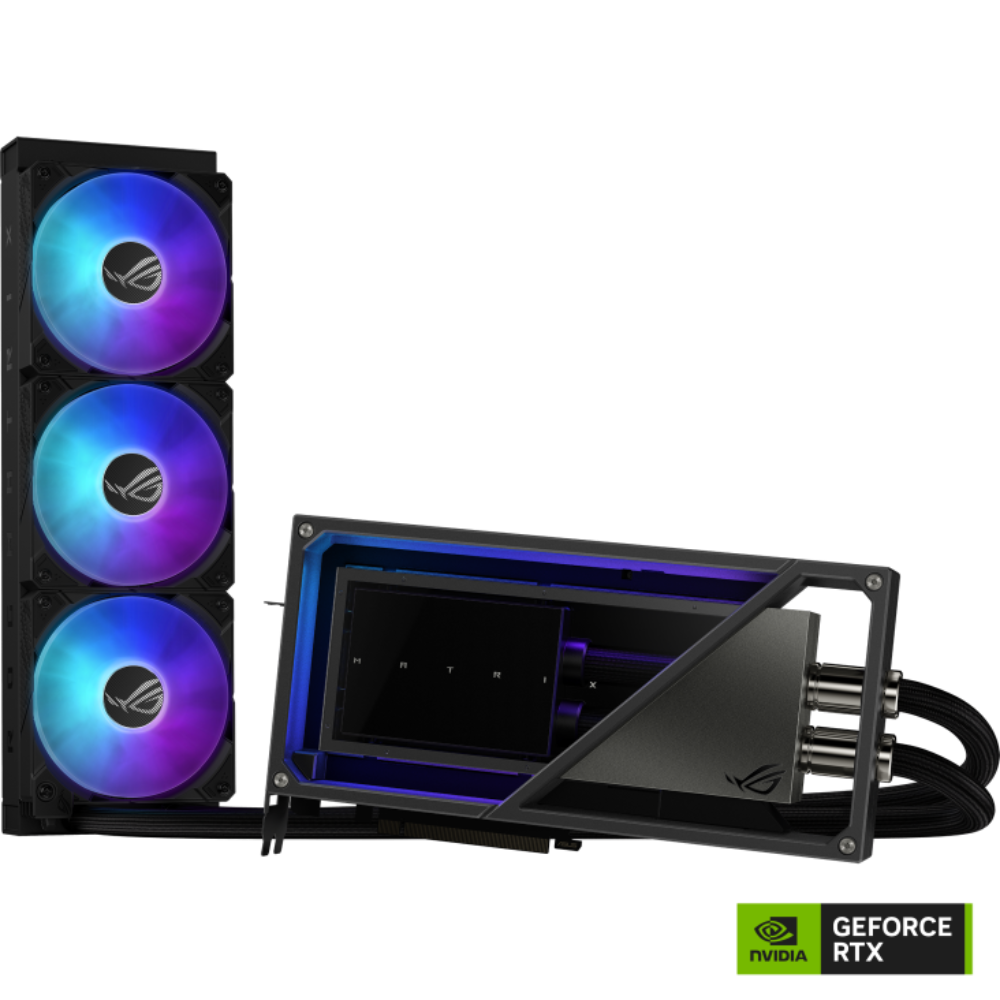

The ROG Matrix GeForce RTX™ 4090 delivers absolute pinnacle performance while maintaining quiet thermal operation, via liquid metal thermal compound on the GPU die, a premium 360 mm AIO cooler and a stunning hollow metal frame design.

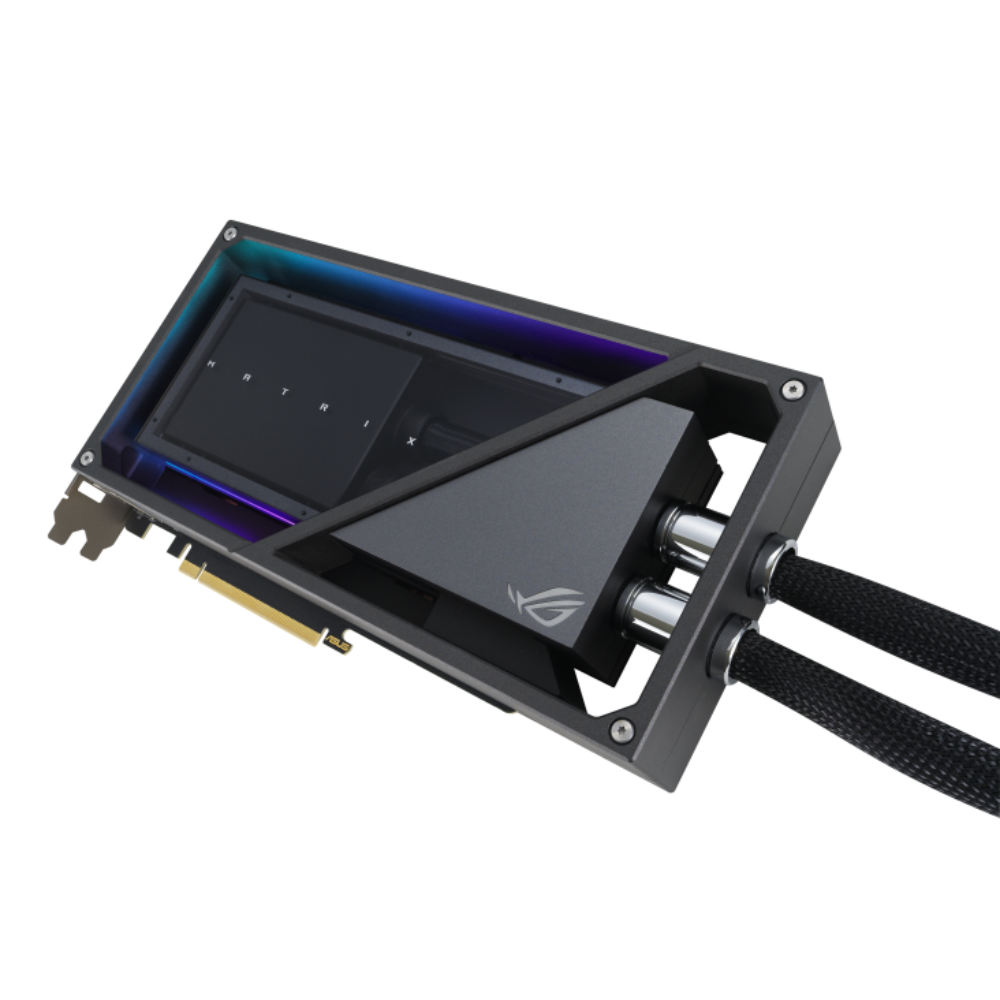

The Matrix GeForce RTX 4090 features a metal frame design with a semi-hollow chamber where the main coldplate, PCB and pump shroud are protected by a larger aluminum body. Aura Sync lighting effects pair with this distinctively minimalist exoskeleton to deliver a modern style that you won’t find anywhere else.
Harness the incredible thermal efficiency of liquid metal on the GPU die to achieve breakthrough performance. With an exclusive production method that securely limits the liquid to the die area, this graphics card can be mounted in any orientation
Powerful Pump
A customized and powerful pump optimized for water flow, feeding ample coolant through 700 mm of tubing to the radiator to maximize cooling on the die, keeping the ROG Matrix GeForce RTX 4090 running at peak efficiency.
360 mm Radiator
An extra-thick 360 mm radiator combines forces with a trio of high-end fans to ensure excellent heat dissipation.
Daisy-Chainable Fans
The daisy-chainable fans snap together with a magnetic connector that links the fans and transmits control signals and power, making installation and cable management a breeze.
Aura Sync
With indirect Aura ARGB lighting, the ROG Matrix provides endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.
Specification of ASUS ROG Matrix GeForce RTX 4090 Platinum 24GB Nvidia Graphic Card
| Part No |
90YV0ID7-M0CA00 |
| Model |
ROG Matrix Platinum GeForce RTX™ 4090 24GB GDDR6X |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4090 |
| AI Performance |
1400 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
24GB GDDR6X |
| Engine Clock |
OC Mode: 2700 MHz
Default Mode: 2670 MHz |
| CUDA Core |
16384 |
| Memory Speed |
21 Gbps |
| Memory Interface |
384-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

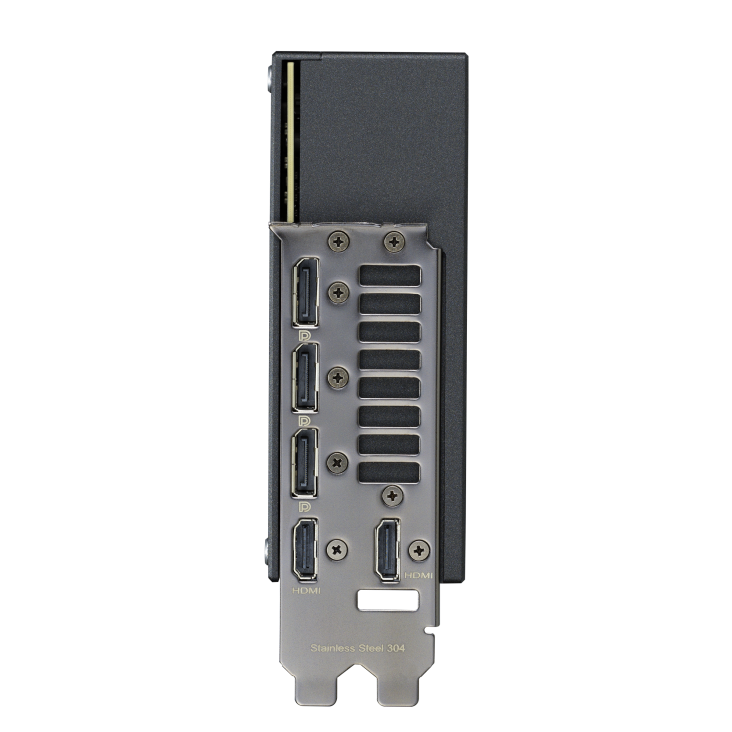

| Interface |
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card
1 x Adapter Cable (1 to 4)
1 x Speedsetup Manual
1 x ROG Velcro Hook & Loop
1 x ROG MATRIX NFT Register procedure
1 x Thank you Card |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
Card: 286.5 x 148.3 x 49mm
Radiator: 400 x 120 x 65mm |
| Recommended PSU |
1000W |
| Power Connectors |
1 x 16-pin |
| Slot |
2.5 Slot |
| AURA SYNC |
ARGB |
