Features of ASUS ROG Astral LC GeForce RTX 5090 32GB NVIDIA Graphic Card

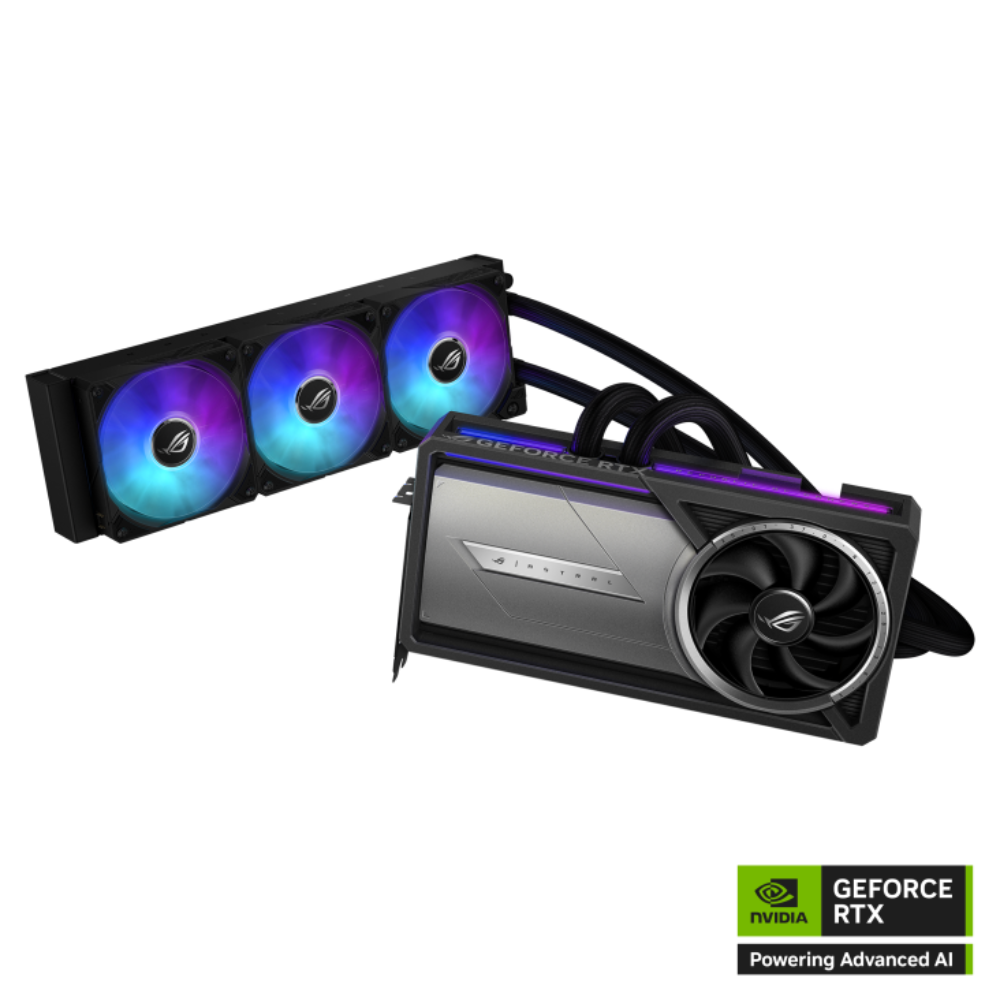

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. The ROG Astral LC GeForce RTX 5090 delivers pinnacle cooling performance via a premium 360mm AIO cooler, full-coverage copper plate and integrated fan. Meanwhile, powerful 80-amp MOSFETs deliver high overclocking potential while maintaining quiet operation.
Full-Coverage Cold Plate
The full-coverage cold plate covers all the heat-generating components on the PCB, empowering the radiator to efficiently cool the graphics card, resulting in up to 30% better performance versus pure air cooling.
On-Board Cooling
Heat produced by power-delivery components is dispelled by an axial-tech fan and a low-profile heatsink under the shroud. This combination exhausts hot air quietly and efficiently.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Premium Power Delivery
Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.
ASUS GPU Guard & Bracket
To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Specification of ASUS ROG Astral LC GeForce RTX 5090 32GB NVIDIA Graphic Card
| Model |
ROG-ASTRAL-LC-RTX5090-32G-GAMING |
| Part No |
90YV0LW3-M0XB00 |
| Graphic Engine |
NVIDIA® GeForce RTX™ 5090 |
| AI Performance |
TBD |
| Bus Standard |
PCI Express 5.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
32GB GDDR7 |
| Engine Clock |
TBD |
| CUDA Core |
21760 |
| Memory Speed |
28 Gbps |
| Memory Interface |
512-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

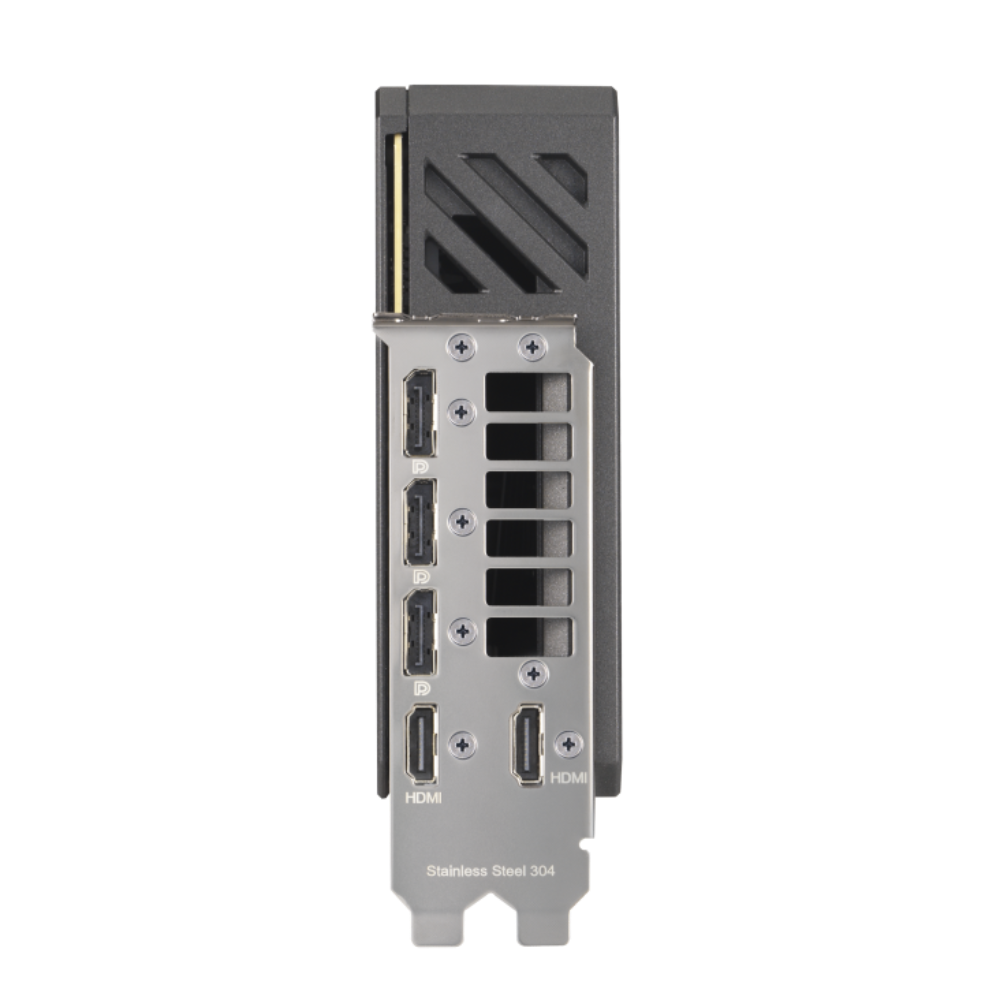

| Interface |
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 4) |
| Software |
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
Card 288.46 x 153.7 x 48 mm
Radiator: 400 x 120 x 65mm |
| Recommended PSU |
1000W |
| Power Connectors |
1 x 16-pin |
| Slot |
2.5 Slot |
| AURA SYNC |
ARGB |
