Features of ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: 2685 MHz (OC mode)/ 2655 MHz (Default mode)
- Axial-tech fans scaled up for 21% more airflow
- 2.5-slot design: allows for greater build compatibility while maintaining premium cooling
- Dual ball fan bearings of the asus rtx 4060 ti last up to twice as long as conventional designs
- 0dB technology lets you enjoy light gaming in relative silence
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III profile Connect enables creators to seamlessly optimize system performance and cooling for every app

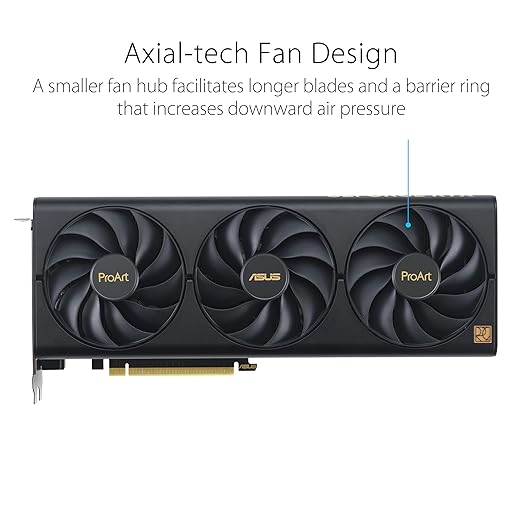

Axial-tech Upgrades-A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology-Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps of the ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB Nvidia graphic card are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.

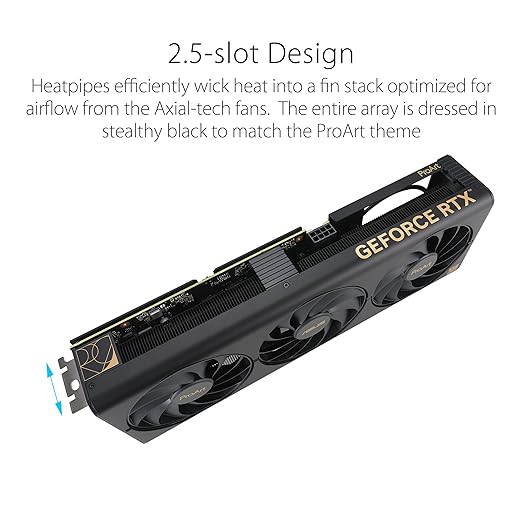

2.5-slot Design-Custom Heatsink
Heatpipes efficiently wick heat into a fin stack optimized for airflow from the Axial-tech fans. The entire array is dressed in stealthy black to match the ProArt theme.
Specifications of ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB
| Model |
PROART-RTX4060TI-O16G |
| Part No |
90YV0JH2-M0AA00 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
16GB GDDR6 |
| Engine Clock |
OC mode : 2685 MHz
Default mode : 2655 MHz (Boost) |
| CUDA Core |
4352 |
| Memory Speed |
18 Gbps |
| Memory Interface |
128-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |

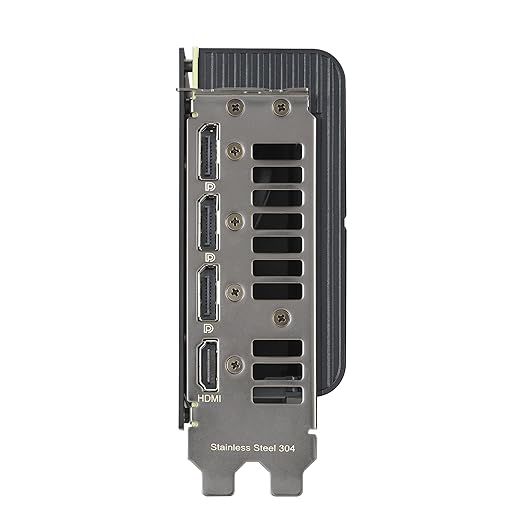

Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank you Card |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
300 x 120 x 50 mm
11.81 x 4.72 x 1.97 inches |
| Recommended PSU |
650W |
| Power Connectors |
1 x 8-pin |
| Slot |
2.5 Slot |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
