ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

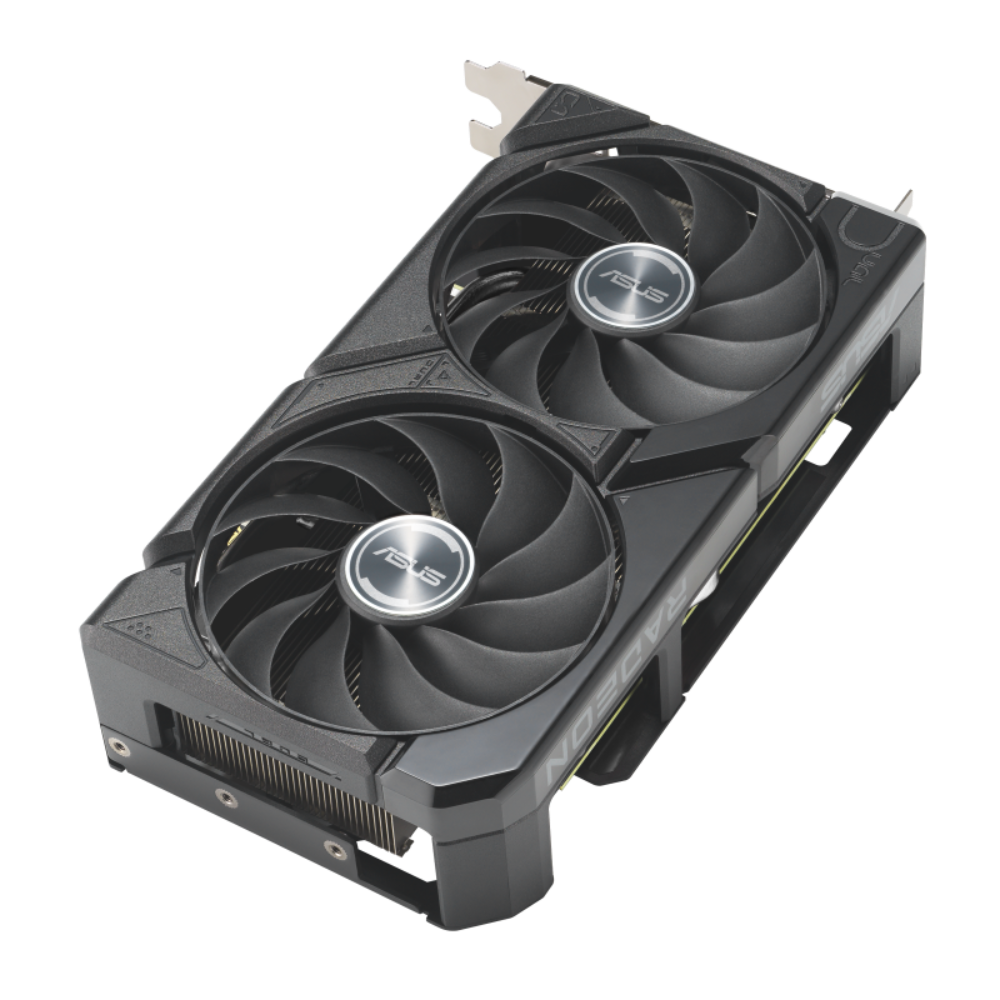

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

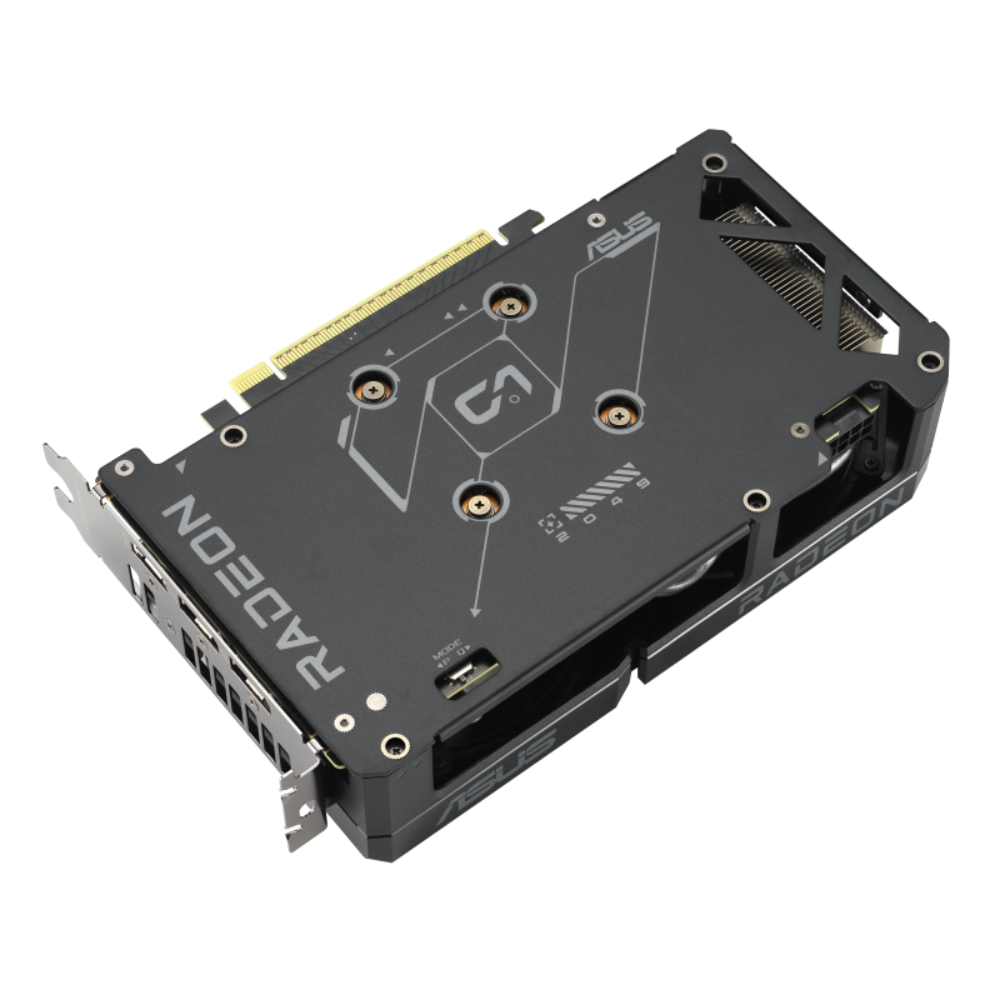

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

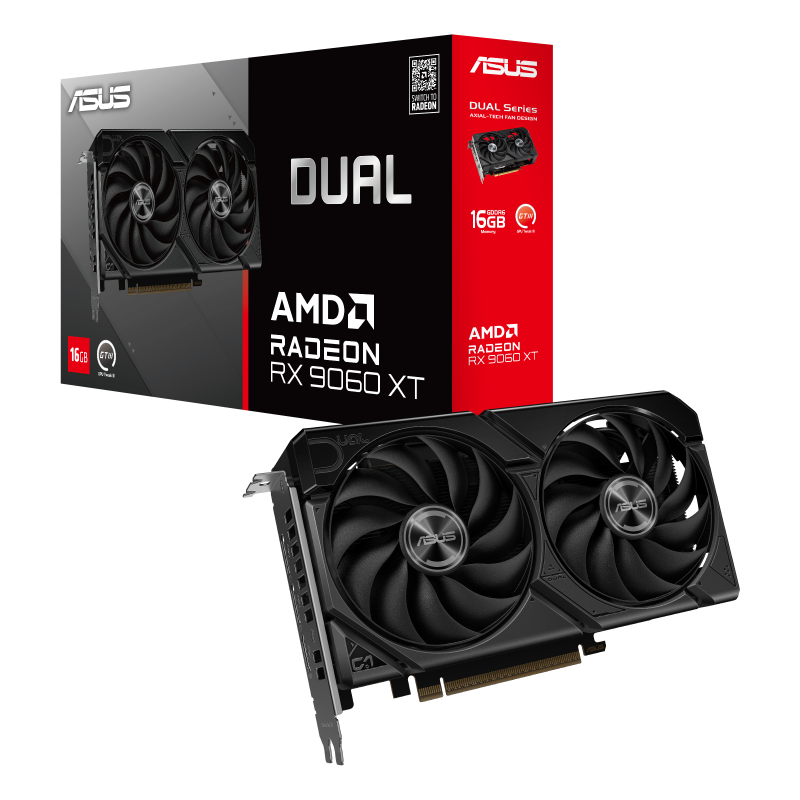

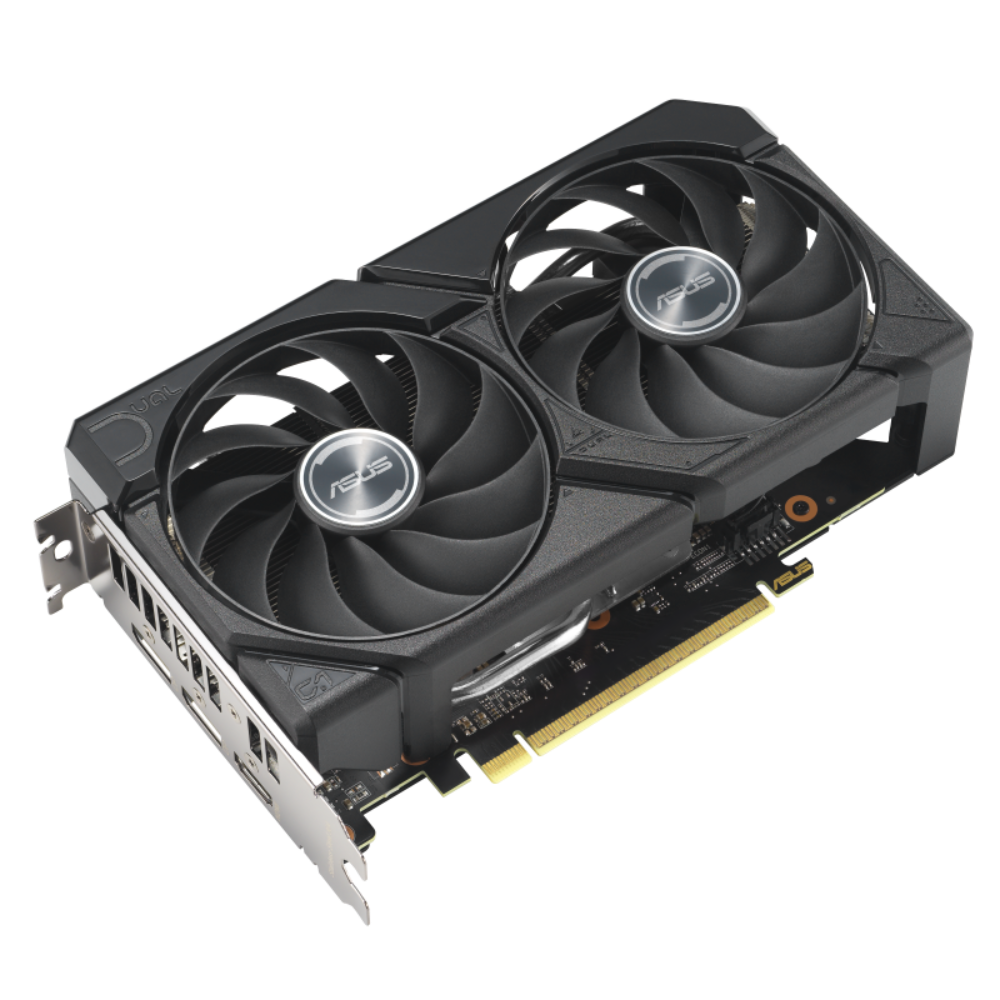

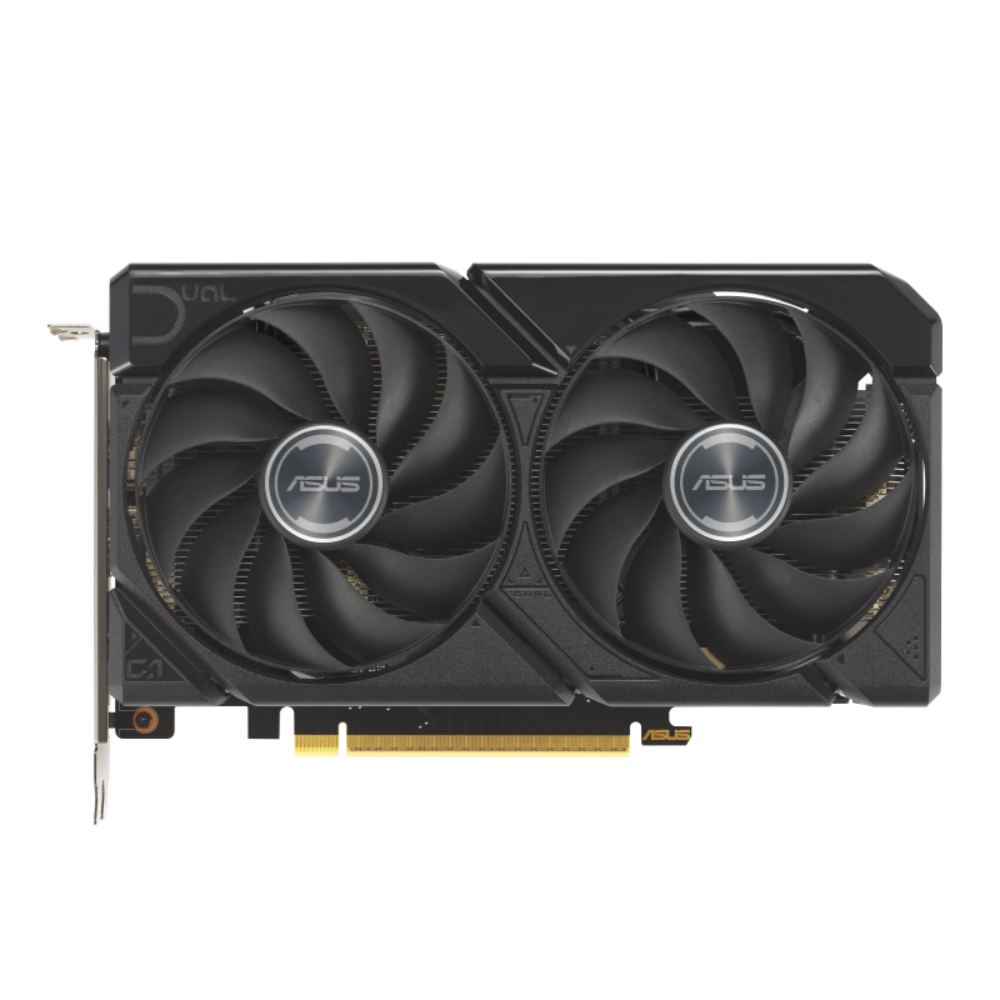

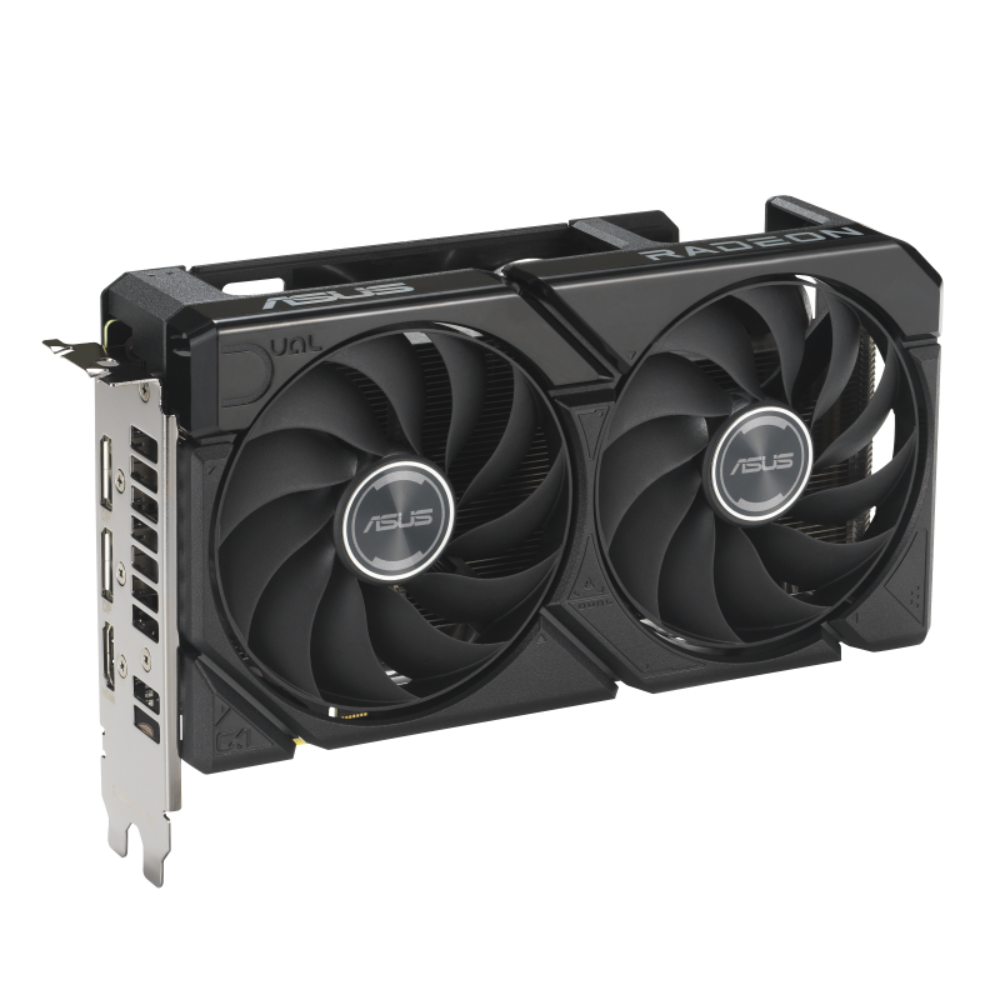

Specifications of ASUS Dual Radeon RX 9060 XT 16GB AMD Graphic Card
| Model No |
DUAL-RX9060XT-16G |
| Graphic Engine |
AMD Radeon RX 9060 XT |
| Bus Standard |
PCI Express 5.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
16GB GDDR6 |
| Engine Clock |
OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)
Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock) |
| Stream Processors |
2048 |
| Memory Speed |
20 Gbps |
| Memory Interface |
128-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

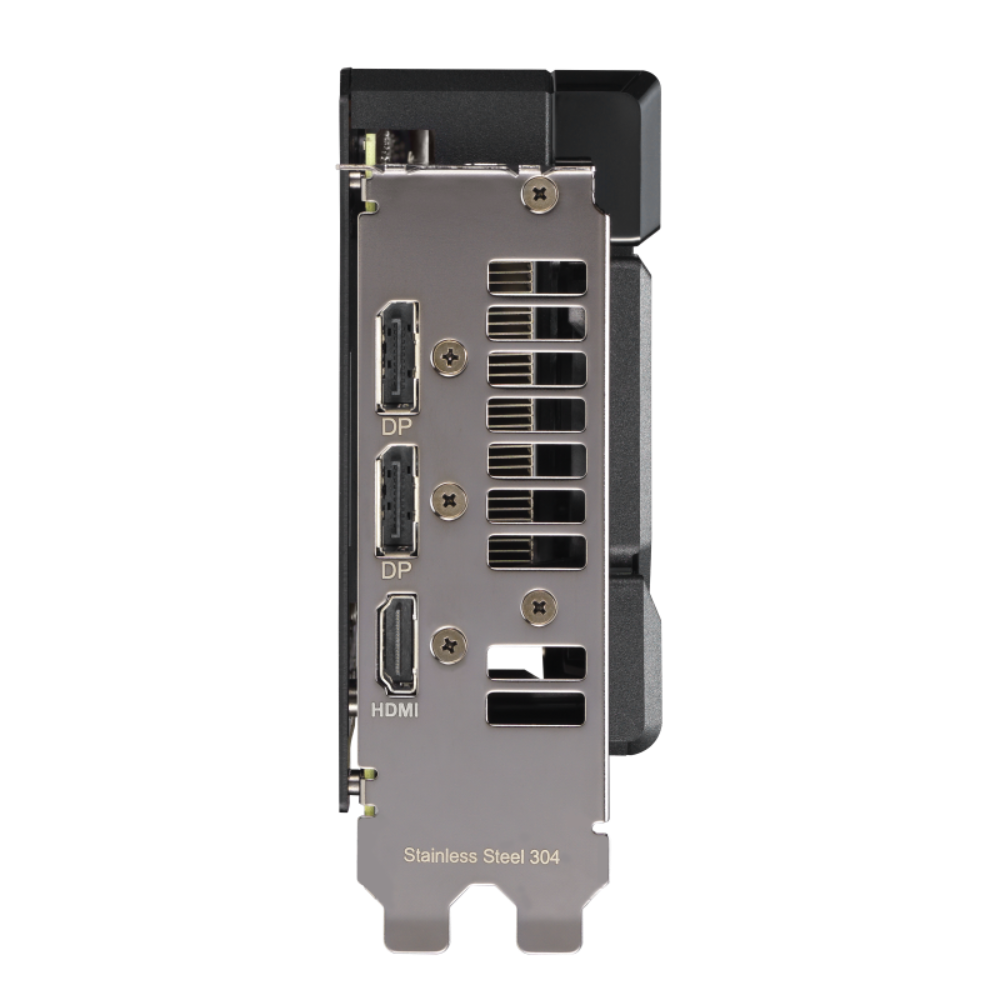

| Interface |
Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
3 |
| NVlink/ Crossfire Support |
No |
| Software |
ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| Accessories |
1 x Thank you card
1 x Speedsetup Manual |
| Dimensions |
202 x 120 x 49mm |
| Recommended PSU |
550W |
| Power Connectors |
1 x 8-pin |
| Slot |
2.5 Slot |
| Warranty |
3 Years |
| Note* |
Price, feature and specifications are subject to change without notice |
