Features of ASUS Dual GeForce RTX 4070 Super OC Edition 12GB Nvidia Graphic Card
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: Boost Clock 2550 MHz (OC Mode)/ 2520 MHz (Default Mode)
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- A 2.56-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
- 0dB technology lets you enjoy light gaming in relative silence
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- Auto-Extreme precision automated manufacturing for higher reliability
2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4070 SUPER graphics card fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 26.7 cm long, 2.56-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design-Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology-Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III-Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics
Specifications of ASUS Dual GeForce RTX 4070 Super OC Edition 12Gb Nvidia Graphic Card
| Model |
DUAL-RTX4070S-O12G |
| Part No |
90YV0K82-M0AA00 |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4070 SUPER |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
12GB GDDR6X |
| Engine Clock |
OC mode : 2550 MHz (Boost Clock)
Default mode : 2520 MHz (Boost Clock) |
| CUDA Core |
7168 |
| Memory Speed |
21 Gbps |
| Memory Interface |
192-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |

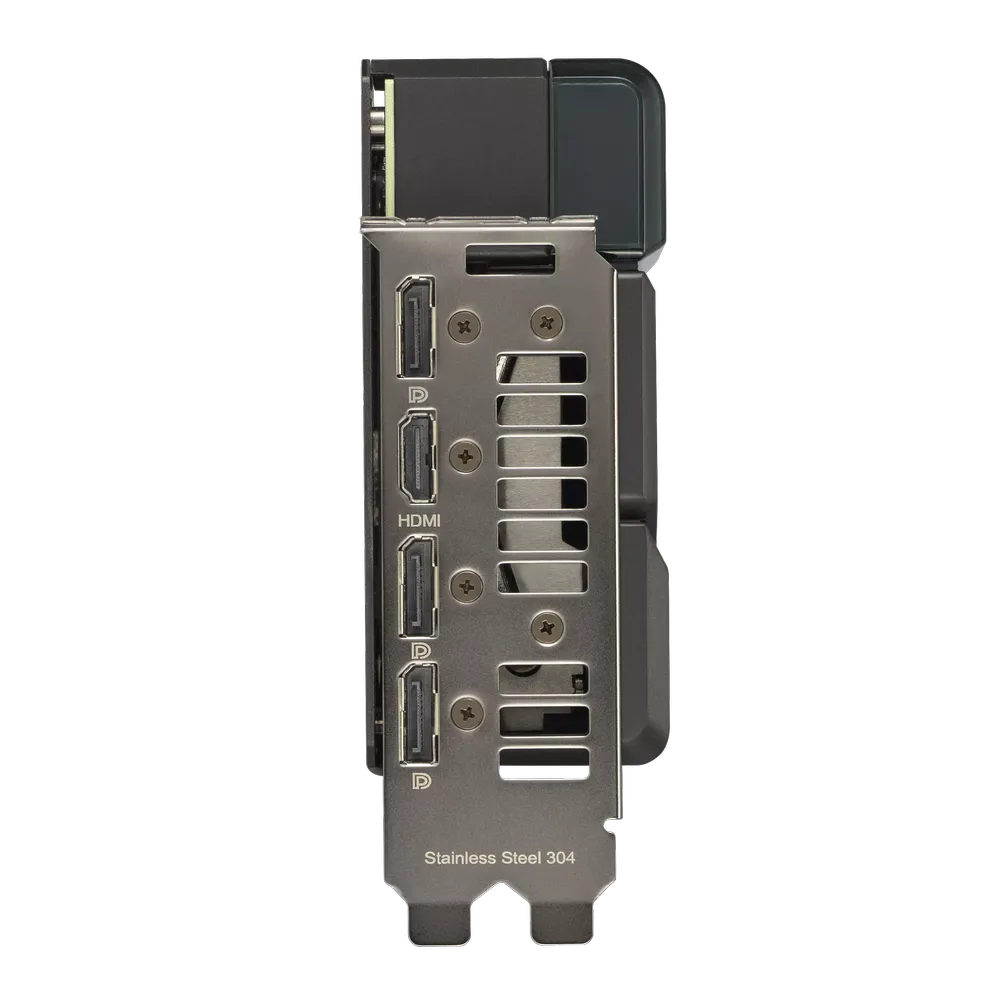

| Interface |
Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card
1 x Speedsetup Manual
1 x Thank you card
1 x Adapter cable (1 to 2) |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
267.01 x 133.94 x 51.13 mm
10.51 x 5.27 x 2.01 inch |
| Recommended PSU |
750W |
| Power Connectors |
1 x 16-pin |
| Slot |
2.56 Slot |
| Note |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |
