Features of ASUS Dual GeForce RTX 4070 Evo 12Gb OC NVIDIA Graphic Card
- AI Performance: 475 AI TOPS
-
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
-
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
-
3rd Generation RT Cores: Up to 2x ray tracing performance
-
SFF-Ready Enthusiast GeForce Card for small-form-factor builds
- OC edition: Boost Clock 2550 MHz (OC Mode)/2520 MHz (Default Mode)
-
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
-
0dB technology lets you enjoy light gaming in relative silence.
-
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4070 EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

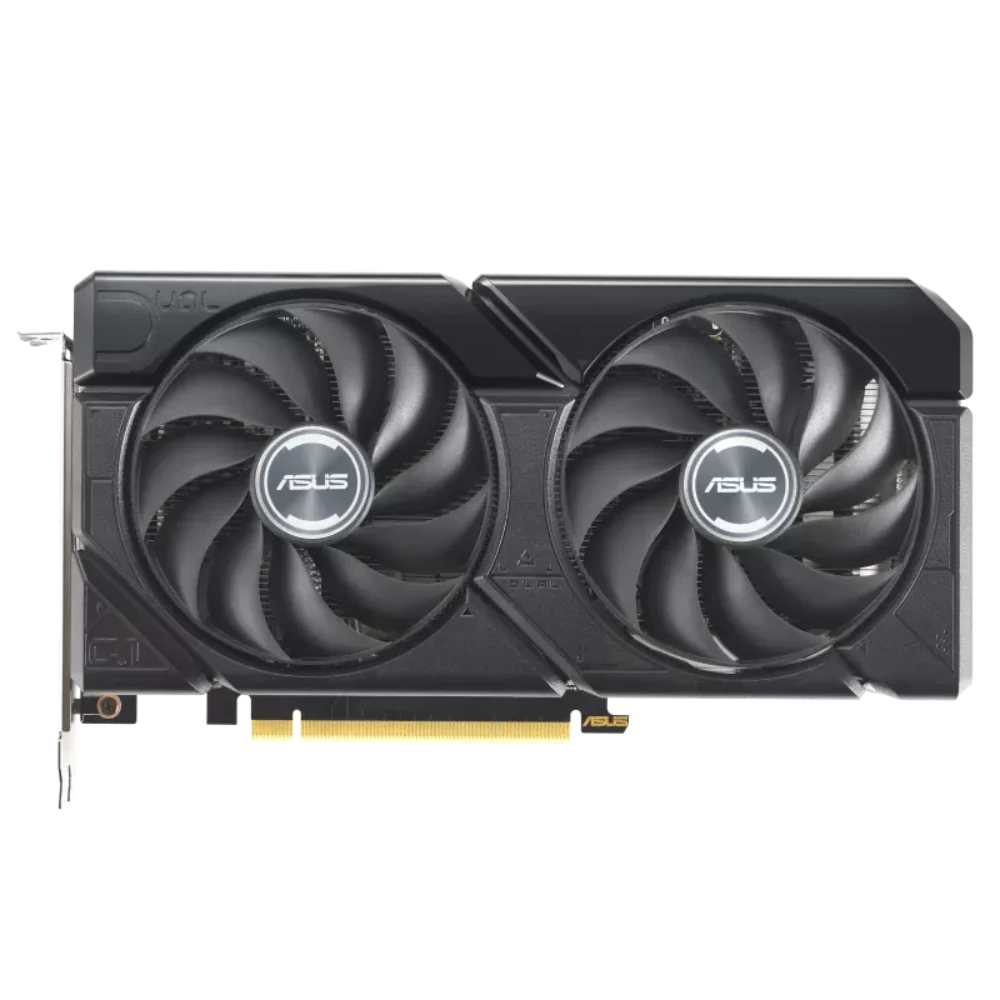

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Specification of ASUS Dual GeForce RTX 4070 Evo 12Gb OC NVIDIA Graphic Card
| Part No |
90YV0LM0-M0AA00 |
| Model |
DUAL-RTX4070-O12GD6-EVO |
| Graphic Engine |
NVIDIA® GeForce RTX™ 4070 |
| AI Performance |
475 |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
12GB GDDR6 |
| Engine Clock |
OC mode : 2550 MHz
Default mode : 2520 MHz (boost) |
| CUDA Core |
5888 |
| Memory Speed |
|
| Memory Interface |
192-bit |
| Resolution |
Digital Max Resolution 7680 x 4320
|

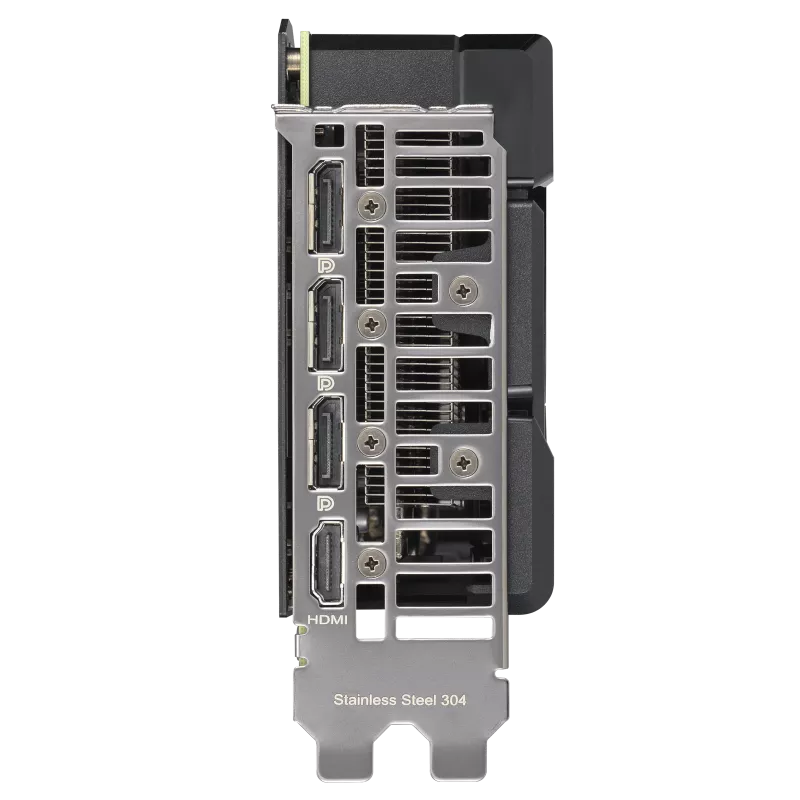

| Interface |
Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Speedsetup Manual
1 x Thank you Card |
| Software |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
227.2 x 123.24 x 49.6 mm
8.94 x 4.85 x 1.95 inch |
| Recommended PSU |
650W |
| Power Connectors |
1 x 8-pin |
| Slot |
2.5 Slot |
| SFF |
Compatible |
